Kinetis® K70 System-On-Module (SOM) and Starter Kit from EmCraft Systems

K70-SOM

Roll over image to zoom in

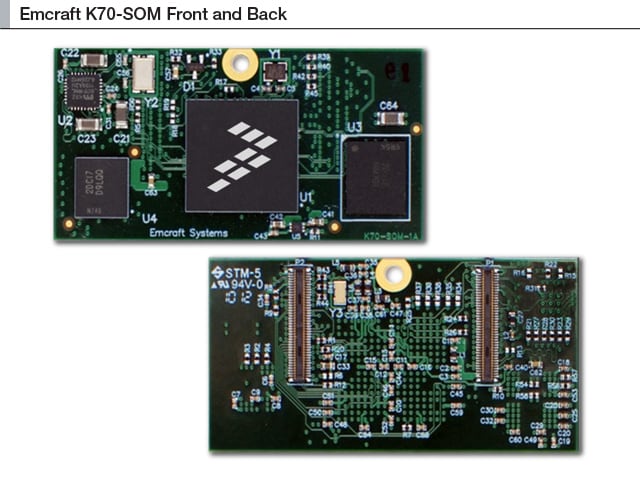

The K70 System-On-Module (SOM) from EmCraft Systems is designed to make it easy, quick, and cost-effective for you to start using the Kinetis K70 or K61 device and uClinux software. This SOM comes preloaded with uClinux and U-Boot. Full source code of the Linux BSP is provided, along with a Linux cross-development environment. Pricing is $49 US in 500-unit quantities.

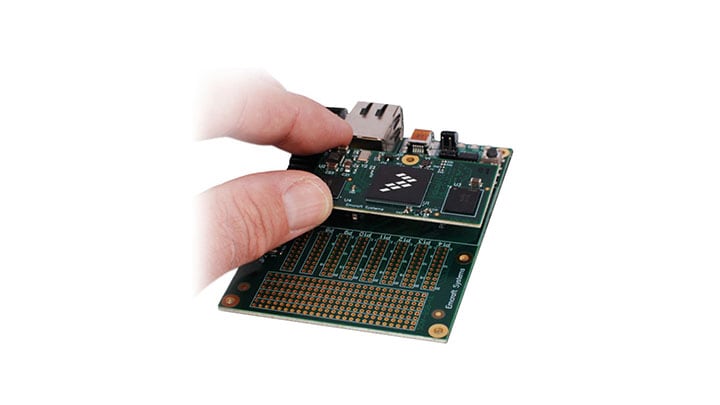

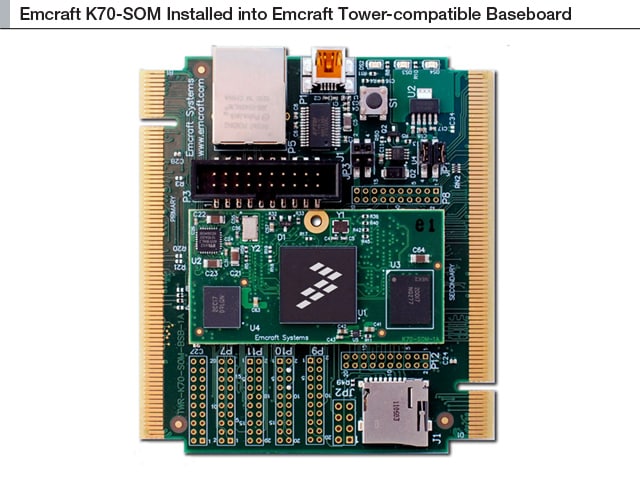

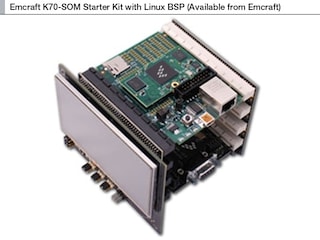

An additional K70-SOM Starter Kit is also available that features the K70 SOM, a baseboard module compatible with the Tower® System and Linux BSP. For more information on the SOM, Linux BSP, and Starter Kit, go to: http://www.emcraft.com/NXP-Kinetis-K70

Purchase Starter Kit from EmCraft Systems for $159 US now.

Product Details

Supported Devices

Processors and Microcontrollers

K7x Graphic LCD

  • K70_120: Kinetis® K70-120–150 MHz, High-Speed USB, Ethernet, DDR and Anti-Tamper Microcontrollers Based on Arm® Cortex®-M4 Core

Features

Hardware Features

  • Compact (30 mm x 57 mm) mezzanine module
  • External interface using two 80-pin 0.4mm-pitch connectors
  • Compliant with the Restriction of Hazardous Substances (RoHS) directive
  • Mounting hole reducing the risk of connector-to-PCB intermittence
  • 150 MHz Kinetis® K70 (256-pin MAPBGA)
  • Powered from single +3.3 V power supply
  • Low-power mode
  • Deep-sleep power mode
  • On-module clocks
  • 64 MB LPDRAM
  • 128 MB NAND flash
  • Serial console interface
  • 802.3 Ethernet interface
  • Watchdog Timer (WDT)
  • Real-Time Clock (RTC)
  • Uncommitted interfaces of K70 available on the interface connectors.

Software Features

  • Ethernet device driver and networking (ping, NFS, Telnet, FTP, ntpd, etc.)
  • SNMP agent
  • Secure shell (ssh) server
  • Web server (httpd)
  • Frame buffer device driver and QT graphics library
  • Flash file system with wear-leveling
  • POSIX threads
  • Process-to-kernel and process-to-process protection using the Memory Protection Unit (MPU) of the Kinetis core
  • Hardened exception handling; an exception triggered by a process affects only the offending process
  • Ability to run portions of Linux kernel code from internal Flash of Kinetis
  • Loadable kernel modules
