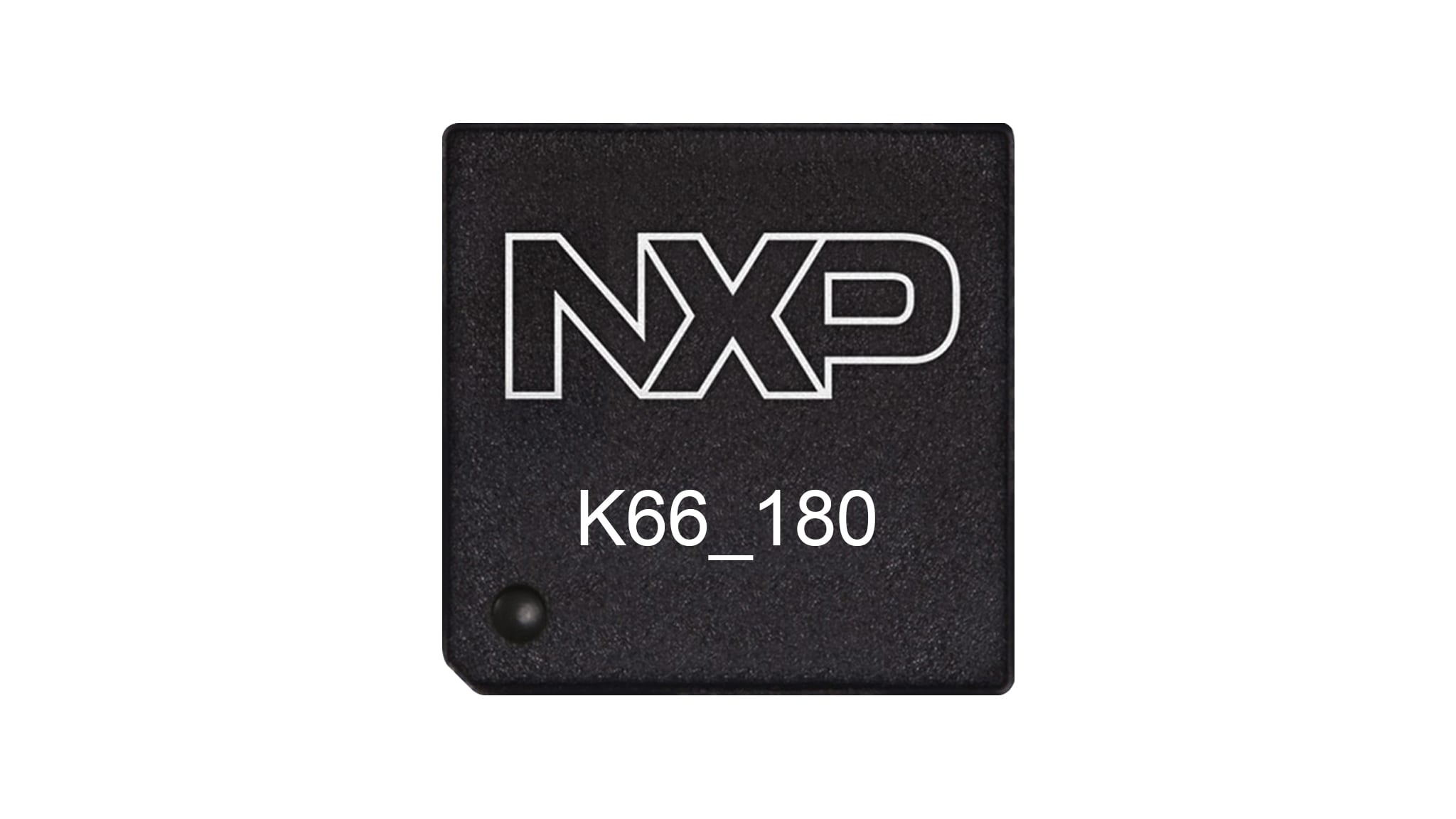

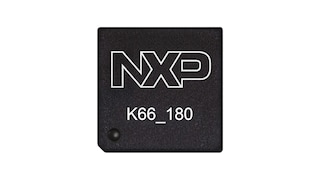

Arm® Cortex®-M4|Kinetis K66 180 MHz 32-bit MCUs

Arm® Cortex®-M4|Kinetis K66 180 MHz 32-bit MCUs | NXP Semiconductors

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Kinetis<sup>®</sup> Software Development Kit SDK Overview

Click over video to play

The Kinetis^® K66 180MHz IEEE® 1588 Ethernet MCUs are built on the Arm^® Cortex^®-M4F core and are optimized for applications requiring large memory densities and low-power processing efficiency. This family offers High-Speed USB with integrated HS USB Physical Transceiver, SDRAM Controller, Full Speed Crystal-less USB support, as well as shares the comprehensive enablement and scalability of the Kinetis portfolio.

Data Sheet

Reference Manual

Product Details

Block Diagram

Kinetis K65/K66 MCU Family Block Diagram

Get diagram PDF

Features

Performance

Arm^® Cortex^®-M4F core running at 180 MHz with single precision floating point unit and 8KB of Cache
Up to 32-channel DMA for peripheral and memory servicing with reduced CPU loading and faster system throughput, with asynchronous support in Stop mode.
Crossbar switch enables concurrent multi-leader bus accesses, increasing bus bandwidth
Independent flash banks allow concurrent code execution and firmware updating with no performance degradation or complex coding routines

Ultra-Low-Power

Flexible low-power modes with power and clock gating for optimal peripheral activity and recovery times. Run power consumption down to <250 μA/MH and static power consumption down to 9.0 µA with full state retention and <6 µS wakeup. Lowest static mode down to 254 nA (VLLS0).
Full memory and analog operation down to 1.71 volts for extended battery life
Low-leakage wake-up unit with up to seven internal modules and over 20 pins as wake-up sources in low-leakage stop (LLS) and very low-leakage stop (VLLS) modes
Low-power timer for continuous system operation in reduced power state

Memory

Up to 2 MB flash. Fast access, high reliability with four-level security protection
256 KB of SRAM
FlexMemory: Up to 4 KB of user-segmentable byte write/erase EEPROM for data tables/system data. In addition, up to 256KB of FlexNVM for extra program code, data or EEPROM backup

Mixed-Signal Capability

Two high-speed, 16-bit analog-to-digital converters (ADCs) with configurable resolution.
Two 12-bit digital-to-analog converters (DACs) for analog waveform generation for audio applications
Four high-speed comparators providing fast and accurate motor over-current protection by driving PWMs to a safe state
Analog voltage reference provides an accurate reference to analog blocks, ADC and DAC, and replaces external voltage references to reduce system cost

Timing and Control

Up to two 16-bit low-power timer PWM modules, two 8-channel motor control/general purpose/PWM timers and two 2-ch quad decoder/general purpose timers
16-bit Low Power Timer, as well as four 32-bit Periodic interrupt timers
Carrier modulator timer for infrared waveform generation in remote control applications
Four-channel 32-bit periodic interrupt timer provides a time base for RTOS task scheduler or trigger source for ADC conversion and programmable delay block

Human-Machine Interface

Hardware touch-sensing interface with up to 16 inputs. Operates in all low power modes (minimum current adder when enabled). Hardware implementation avoids software polling method. High sensitivity level allows the use of overlay surfaces up to 5 mm thick

Connectivity and Communications

IEEE 1588 Ethernet MAC with hardware time stamping provides precision clock synchronization for real-time industrial control
Dual USB supporting High-speed (HS), with integrated HS transceiver, and Full-speed (FS), with integrated FS transceiver. Intelligent design with embedded 48 MHz oscillator allowing for FS USB crystal-less system design.
One Low Power UART (LPUART), along with five standard UARTs with ISO7816 smart card support.
Inter-IC Sound (I²S) serial interface for audio system interfacing
Two CAN modules for industrial network bridging
Three SPI and four I²C

Reliability, Safety and Security

Memory protection unit provides memory protection for all leaders on the crossbar switch, increasing software reliability
Cyclic redundancy check engine validates memory contents and communication data, increasing system reliability
Independent-clocked COP guards against clock skew or code runaway for fail-safe applications such as the IEC 60730 safety standard for household appliances
External watchdog monitor drives output pin to safe state external components if watchdog event occurs
System security with hardware encryption, random number generator and real-time clock

Buy/Parametrics

Part Show description	Status	Core Type	Operating Frequency [Max] (MHz)	SRAM (kB)	Flash (kB)	EEPROM (kB)	UART	SPI	I²C	USB Controllers	CAN	GPIO	ADC (16 bit)	16-bit PWM	Security	Supply Voltage [min] (V)	Supply Voltage [max] (V)	Package Type	Package Termination Count	Package Dimensions (LxWxZ (mm))	Package Pitch (mm)	Ambient Operating Temperature (Min to Max) (℃)
MK66FN2M0VLQ18 Data Sheet	Active	Arm Cortex-M4	180	256	2048	—	6	3	4	2	2	100	2	24	CA, CRC, RNG	1.71	3.6	LQFP144	144	20 x 20 x 1.4	0.5	-40 to 105
MK66FN2M0VMD18 Data Sheet	Active	Arm Cortex-M4	180	256	2048	—	6	3	4	2	2	100	2	24	CA, CRC, RNG	1.71	3.6	LBGA144	144	13 x 13 x 1.7	1.0	-40 to 105
MK66FX1M0VLQ18 Data Sheet	Active	Arm Cortex-M4	180	256	1280	0	6	3	4	2	2	100	2	24	CA, CRC, RNG	1.71	3.6	LQFP144	144	20 x 20 x 1.4	0.5	-40 to 105
MK66FX1M0VMD18 Data Sheet	Active	Arm Cortex-M4	180	256	1280	0	6	3	4	2	2	100	2	24	CA, CRC, RNG	1.71	3.6	LBGA144	144	13 x 13 x 1.7	1.0	-40 to 105
