PX4 Robotic Drone Vehicle/Flight Management Unit (VMU/FMU) - RDDRONE-FMUK66

Roll over image to zoom in

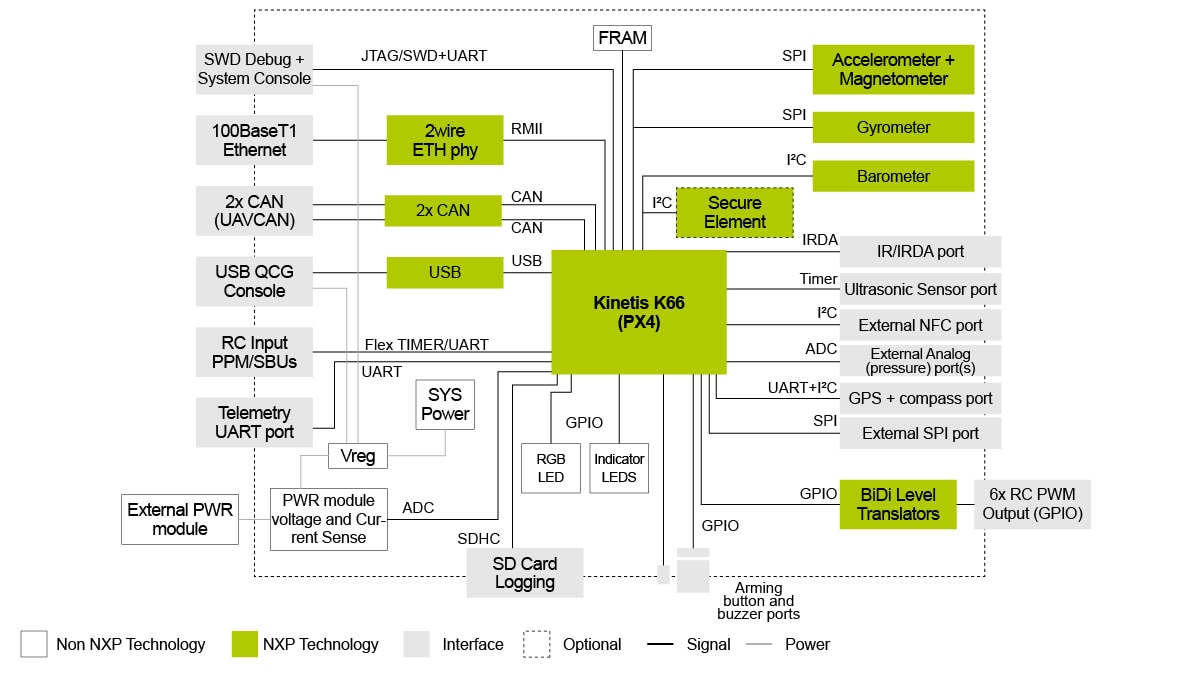

Block Diagram

Choose a diagram:

PX4 Robotic Drone FMU

PX4 Robotic Drone FMU

FMU Reference Design

HoverGames Kit Block Diagram

Supported Devices

Sensors

Barometric Pressure 15 to 150 kPa

Security and Authentication

Authentication

Processors and Microcontrollers

K6x Ethernet

Analog and Mixed Signal

Voltage Level Translators

Products

No Longer Manufactured

Interfaces

Automotive Ethernet PHYs

3.3 V / 5 V IO CAN Transceivers

More

Features

Functionality

  • Proven business-friendly open source software with available enterprise support: PX4, QGroundControl
  • Supports all airframes and vehicles: quadcopters, hexacopters, VTOL, planes, rovers, cars and other robots
  • Open and flexible development - suitable for bare bones or other vehicle stacks. Add companion computer with vision and peripherals such as GPS, RTK-GPS, UWB, telemetry radios, LTE, Bluetooth® low energy, radar, ultrasonic, lidar
  • Can interface with NXP® RapidIoT using RDDRONE-IOT adapter board
  • High-bandwidth interfaces: automotive peripheral interfaces support light-weight two-wire 100Base-T1 Ethernet and dual CAN

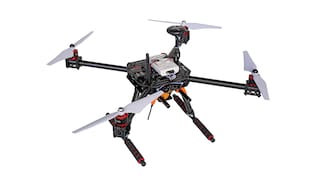

  • Included in complete reference drone kit KIT-HGDRONEK66
  • Uses DroneCodeSDK co-operating with an NXP i.MX, S32x or other companion computer running Linux®, ROS and MAVROS
  • MAVLink telemetry to ground station
  • Supports RTK GPS
  • UAS traffic management (UTM) services through air map platform SDK

Software/Development

  • Proven business-friendly open source software with available enterprise support: PX4, QGroundControl
  • Supports all airframes and vehicles: quadcopters, hexacopters, VTOL, planes, rovers, cars and other robots
  • Open and flexible development - suitable for bare bones or other vehicle stacks.
  • Can interface with NXP RapidIoT using RDDRONE-IOT adapter board

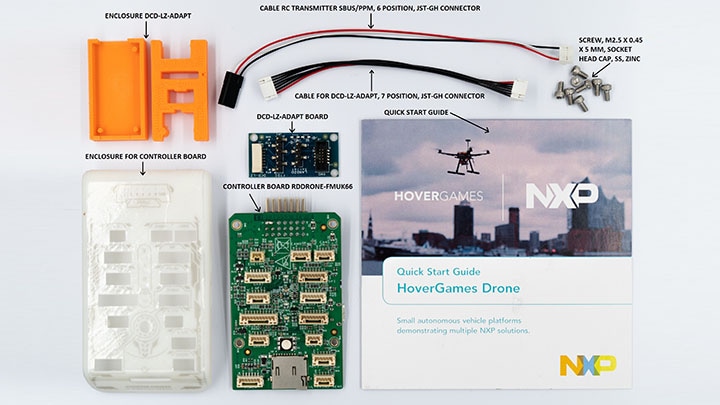

Complete Drone Kit

Additional Components

  • Telemetry radios available by separate orders, depending on your country HGD-TELEM433 (EUR) or HGDTELEM-915 (USA) depending on your country regulations

Buy Options

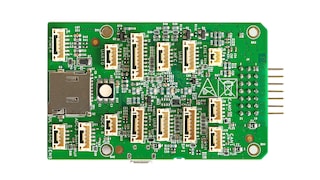

RDDRONE-FMUK66-Image

Click to expand

  • RDDRONE-FMUK66
    Active

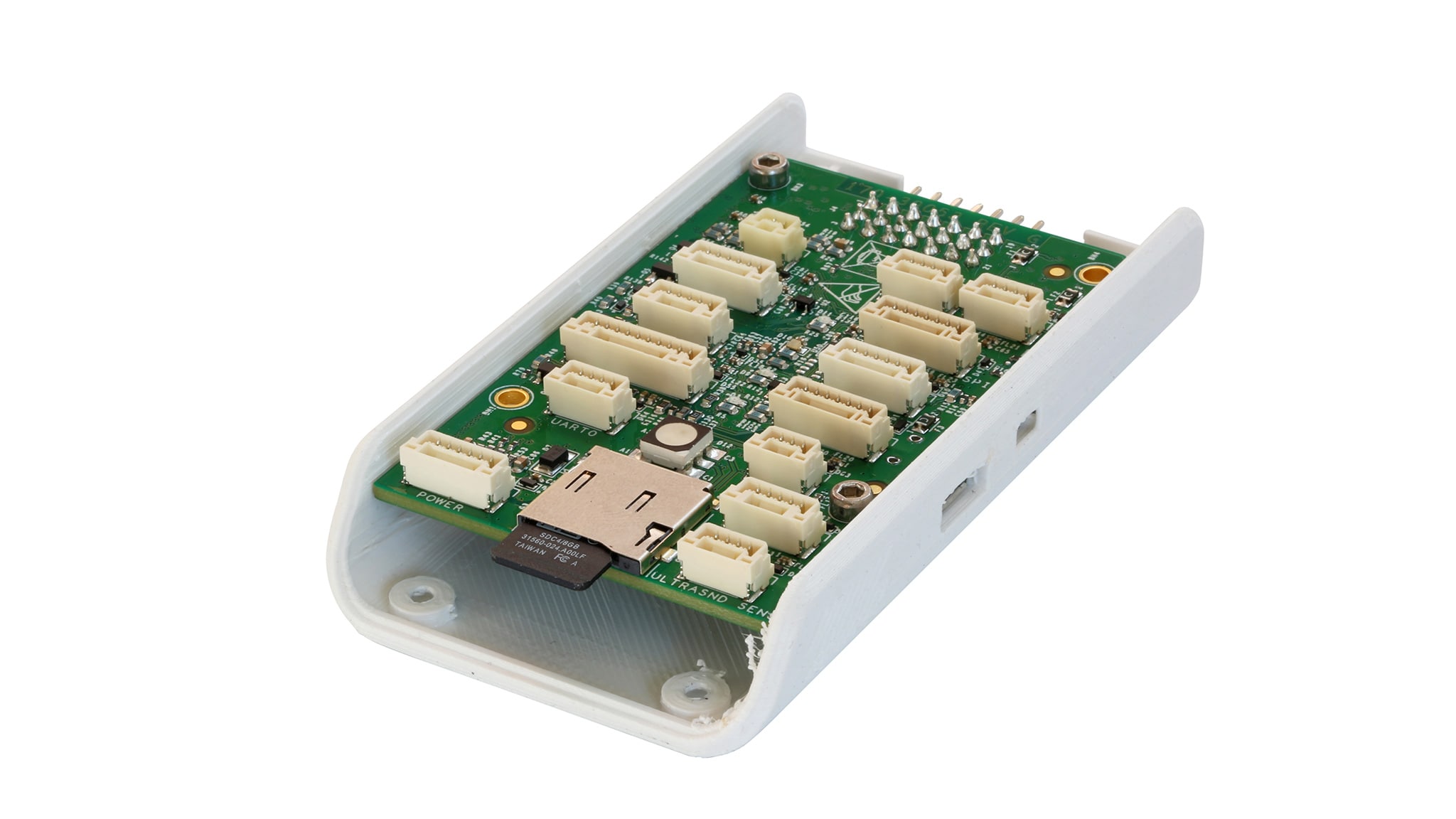

  • PX4 Robotic Drone Vehicle/Flight Management Unit (VMU/FMU) - RDDRONE-FMUK66.

  • For a quantity of 1
Order from distributors
RDDRONE-FMUK66L-Image

Click to expand

  • RDDRONE-FMUK66L
    Active

  • PX4 Robotic Drone FMU (RDDRONE-FMUK66L).

  • For a quantity of 1
Order from distributors
HGD-TELEM433-Image

Click to expand

  • HGD-TELEM433
    Active

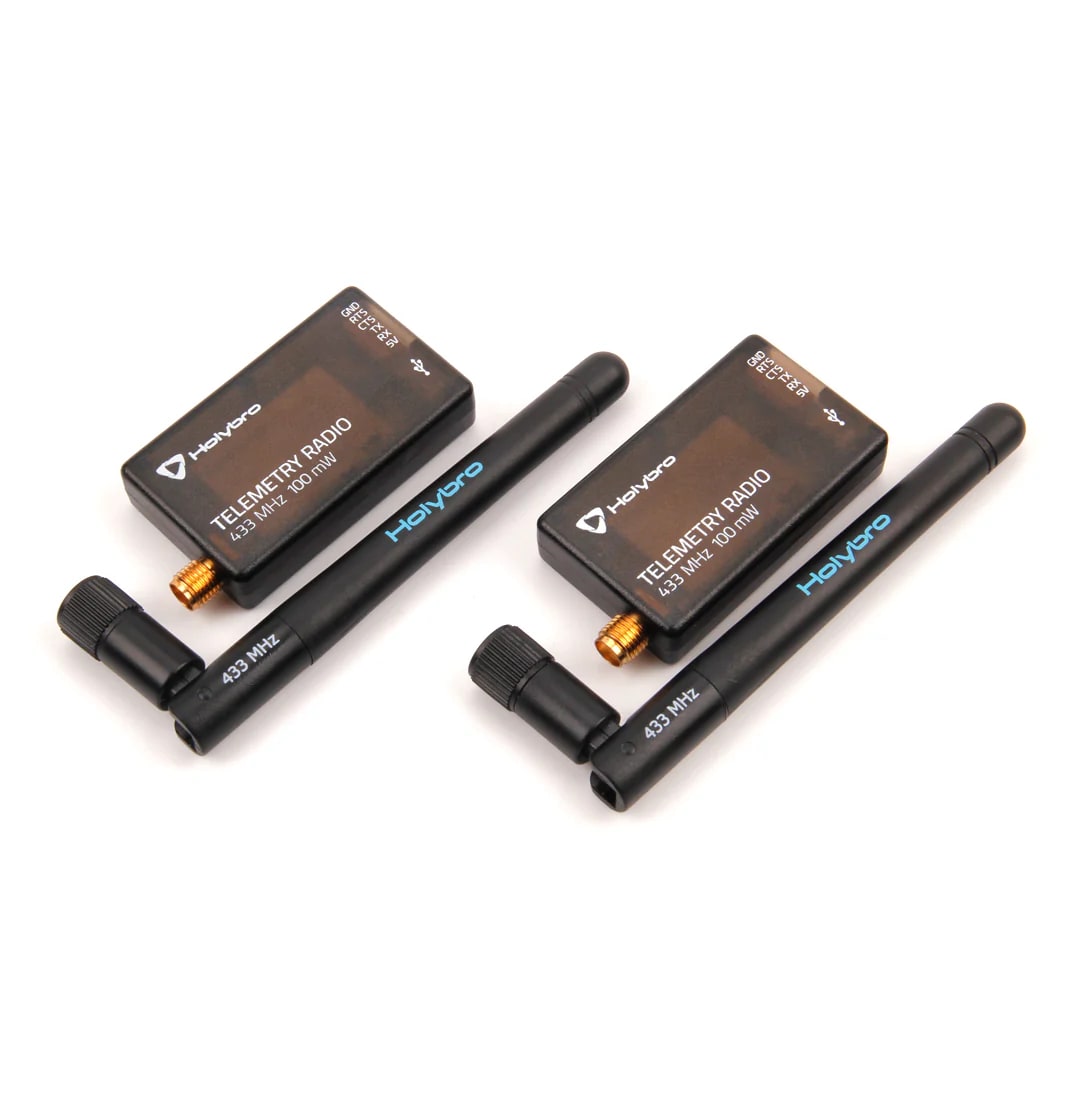

  • Telemetry Radio for HoverGames Drone, 433Mhz (EU) .

  • $78.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
Order from distributors
HGD-TELEM915-Image

Click to expand

  • HGD-TELEM915
    Active

  • Telemetry Radio for HoverGames Drone, 915Mhz (US).

  • $78.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 7
    • Shipping: Normally ships 1-2 business days
Order from distributors
