Arm Cortex-M4|Kinetis K02 100 MHz 32-bit MCUs

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Click over video to play

The entry-level Kinetis^® K02 100 MHz MCU offers a streamlined solution with high performance processing efficiency for very low-power applications.

Offers low dynamic power consumption and advanced static current consumption with more than 10 flexible low-power modes
Helps extend battery life and reduce overall board power supply requirements
Delivers outstanding computational power for control algorithms, sensor data processing, audio processing while increasing math accuracy and reducing code size
Shares the comprehensive scalability of the Kinetis portfolio
Enables faster time-to-market with comprehensive enablement solutions

Data Sheet

Reference Manual

Product Details

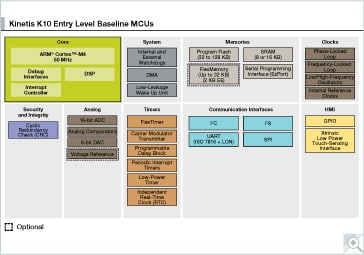

Block Diagram

Kinetis K02_100 MCUs Block Diagram

Get diagram PDF

Features

Ultra-Low-Power

Run power consumption down to 125 µA/MHz
Flexible low-power modes with power and clock gating for optimal peripheral activity and recovery times
Static power consumption down to 4.1 µA with full state retention and 6 µs wakeup. Lowest Static mode down to 150 nA
Low-power timer for continual system operation in reduced power state

Performance

100 MHz Arm^{^®} Cortex^®-M4 core with DSP instructions delivering 1.25 Dhrystone MIPS per MHz

Memories and Memory Interfaces

Up to 128 KB of embedded flash and 16 KB of RAM

System Peripherals

Flexible low-power modes with multiple wake up sources
4-channel DMA controller
Independent external and software watchdog monitor

Clocks

Crystal oscillator: 32-40 kHz or 3-32 MHz
Three internal oscillators: 32 kHz, 4 MHz, and 48 MHz with FLL
Multi-purpose clock generator

Security and Integrity Modules

Hardware CRC module
128-bit unique identification (ID) number per chip
Flash access control to protect proprietary software

Human Machine Interface

Up to 46 general-purpose I/O (GPIO)

Analog Modules

One 16-bit SAR ADCs
One 12-bit DAC
Two analog comparators (CMP) with 6-bit DAC
Accurate internal voltage reference

Communication Interfaces

One SPI module
Two UART modules
One I²C: Support for up to 400 kbit/s operation with maximum bus loading

Up to 51 Timers

One 6-channel motor control/general purpose/ PWM timer
Two 2-channel general-purpose timers with quadrature decoder functionality
Periodic interrupt timers
16-bit low-power timer
Real-time clock with independent power domain
Programmable delay block

Operating Characteristics

Voltage range: 1.71 to 3.6 V
Flash write voltage range: 1.71 to 3.6 V
Temperature range (ambient): -40 to 105°C

MCUXpresso Software and Tools

Kinetis Power Estimation Tool

Estimate and optimize your system's power consumption quickly with the Kinetis Power Estimator Tool.
