QorIQ® T4240 Reference Design Board

T4240RDB Active

Roll over image to zoom in

The QorIQ® T4240 reference design board (T4240-RDB) is a compact (1U), highly integrated board featuring the 24-virtual-core T4240 device.

  • With a 1.8 GHz T4240 processor and rich input/output (I/O) mix, the board is designed for evaluating the T4240, T4160 and T4080 processors in networking, telecom/datacom, wireless infrastructure and military/aerospace applications
  • The T4 processor family can be used for combined control, data path, and application layer processing in routers, switches, gateways and general-purpose embedded computing systems
  • The board, which exercises many capabilities of the device, can serve as a reference for a customer's hardware development

Product Details

Supported Devices

Processors and Microcontrollers

T-Series

  • T4240: QorIQ® T4240/T4160/T4080 Multicore Communications Processors

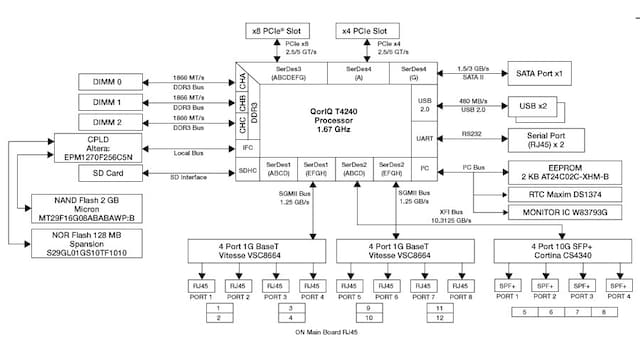

Features

Processor

  • The T4240 processor contains a 1.8 GHz core with 1867 MT/s DDR3 data rate (prototype specification: 1.67 GHz core)
  • Multiple SysClk inputs

Memory

  • Three unbuffered DDR3 240-pin UDIMM modules with ECC (72-bit bus), 6 GB memory, 1867 MT/s data rate
  • 128 MB NOR Flash, 16-bit
  • 2 GB SLC NAND Flash
  • 2 KB 24C02 I²C EEPROM
  • SD connector to interface

PCI Express®

  • PCI Express x4 connector
  • PCI Express x8 connector

USB 2.0

  • Dual Type-A USB slot, connected to USB PHY

Ethernet

  • Four 10 GB/s SFP+ ports
  • LAN1 - LAN8: Connected to SGMII PHY- VSC8664

Additional Features

  • LEDs for power and Ethernet link and active
  • JTAG for debugging
  • I²C
    • Serial EEPROM - board identification
    • Real-time clock
  • ATX power supply

Buy Options

T4240RDB-PB-Image

Click to expand

  • T4240RDB-PB
    Active

  • QorIQ T4240 Reference Design Board, revB.

  • For a quantity of 1
