QorIQ® Qonverge Development System

B4420QDS

The B4420QDS is a flexible development system supporting the B4420 baseband system-on-chip (SoC) device, providing a complete application development environment. The B4420, with two 1.6 GHz e6500 cores built on Power Architecture®, two 1.2 GHz SC3900FP DSP cores, high throughput baseband and packet accelerators, and rich input/output (I/O) mix, is intended for metrocell base stations in wireless infrastructure as well as aerospace and defense applications.

Product Details

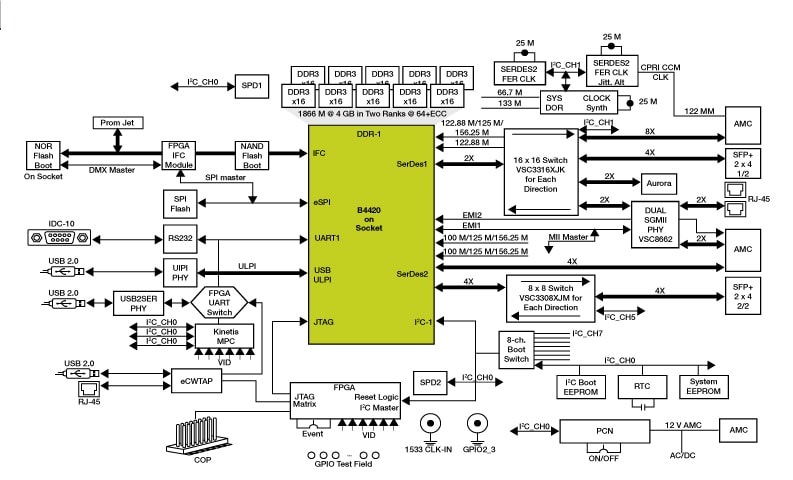

Block Diagram

Qonverge Development System

QorIQ Qonverge B4420QDS Board
Get diagram PDF

Features

Processor

    B4420 baseband processor

  • Two 1.6 GHz e6500 cores, built on Power Architecture
  • Two StarCore® SC3900FP DSP cores running at up to 1.2 GHz
  • MAPLE-B baseband acceleration platform

Memory

  • DDR memory
  • NAND/NOR/SPI flash memories
  • I²C EEPROM
  • PRI/PCI Express® exposed over SFP+ optical transceivers or AMC expansion connector

Connectivity

  • Ethernet interfaces
  • USB interface

Debug

  • Debug interfaces
