XAUI Riser Ethernet Card for QorIQ P4080 Development System

XAUIRSR Active

Roll over image to zoom in

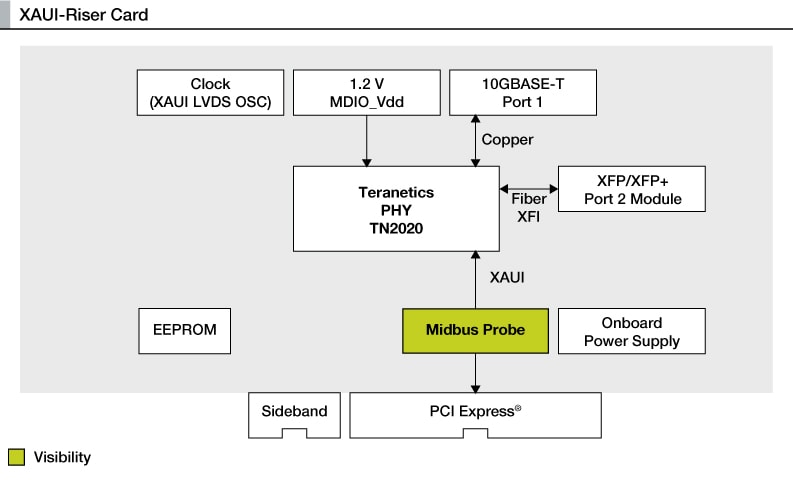

NXP’s XAUI (10 Gigabit Attachment Unit Interface)-Riser Ethernet network card is designed primarily to test the XAUI interface for the QorIQ® P4080 communication processor using Our P4080 development system (P4080DS). The XAUI Riser card uses Cat6a/Cat7 copper cable as primary interface and has the ability to switch over to fiber optic for higher speeds. NXP’s Software Development Kit (SDK, starting with version 2.1.1) facilitates switching capability between the two modes.

Product Details

Features

Support

  • Supports up to 100 m on CAT6a and CAT7 cable types. Supports up to 55 m on CAT6 cable, already deployed in many data centers
  • Multirate support (100M/1G/10GBASE-T) decouples the simultaneous upgrade of both ends of a link, which provides flexibility in existing installations and accelerates the adoption of new equipment
  • Flexible switch/MAC interface support in current and next-generation NICs and switches for servers, enterprise networks, and storage appliances:
    • 10G XFI–1 lane, 10.3125G
    • 10G XAUI–4 lane, 3.125G
    • 1G/100M SGMII–1 lane, 1.25G

Tools and OS Support

  • Built-in diagnostics helps data center operators localize cables problems, thus minimizing the link downtime
  • Triple-speed operation enables compatibility with a previously installed base and allows an upgrade path to increased bandwidth
  • Demonstrated to work up to 45 nm on CAT5e, the most commonly installed UTP cable type
  • The XAUI-Riser is FCC-compliant

Buy Options

XAUI-RISER-B-Image

Click to expand

  • XAUI-RISER-B
    Active

  • XAUI Riser Card for QorIQ Development Systems, revB.

  • For a quantity of 1
Order from distributors
N true 0 TSPXAUIRSRen 1 Fact Sheet Fact Sheet t523 1 en_US en_US en Fact Sheet Fact Sheet 1 1 6 English The XAUI (10 gigabit attachment unit interface)-Riser-B Ethernet network card is designed to exercise the XAUI interface of QorIQ development systems supporting various communications processors, including P2041, P3041, P4040, P4080, P5010, P5020, P5021, P5040, T4160 and T4240. It also provides a total system solution to connect to the 10 GB network through the on-board Teranetics PHY through two modes: 10Base-T (UTP copper) or fiber optic. This solution provides two testing modes on a single board, saving 1352396529418722433909 TSP 646.0 KB None None documents None 1352396529418722433909 /docs/en/fact-sheet/XAUIRISERFS.pdf 645994 /docs/en/fact-sheet/XAUIRISERFS.pdf XAUIRISERFS documents N N 2013-03-01 XAUI-Riser for the QorIQ<sup>&#174;</sup> P4080 Communications Processor - Fact Sheet /docs/en/fact-sheet/XAUIRISERFS.pdf /docs/en/fact-sheet/XAUIRISERFS.pdf Fact Sheet N 736675474163315314 2023-06-18 pdf N en Oct 9, 2013 736675474163315314 Fact Sheet Y N XAUI-Riser for the QorIQ<sup>&#174;</sup> P4080 Communications Processor - Fact Sheet false 0 XAUIRSR downloads en true 0 Y TSP Fact Sheet 1 /docs/en/fact-sheet/XAUIRISERFS.pdf 2013-03-01 1352396529418722433909 TSP 1 Oct 9, 2013 Fact Sheet The XAUI (10 gigabit attachment unit interface)-Riser-B Ethernet network card is designed to exercise the XAUI interface of QorIQ development systems supporting various communications processors, including P2041, P3041, P4040, P4080, P5010, P5020, P5021, P5040, T4160 and T4240. It also provides a total system solution to connect to the 10 GB network through the on-board Teranetics PHY through two modes: 10Base-T (UTP copper) or fiber optic. This solution provides two testing modes on a single board, saving None /docs/en/fact-sheet/XAUIRISERFS.pdf English documents 645994 None 736675474163315314 2023-06-18 N /docs/en/fact-sheet/XAUIRISERFS.pdf XAUI-Riser for the QorIQ<sup>&#174;</sup> P4080 Communications Processor - Fact Sheet /docs/en/fact-sheet/XAUIRISERFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 6 N N XAUI-Riser for the QorIQ<sup>&#174;</sup> P4080 Communications Processor - Fact Sheet 646.0 KB XAUIRISERFS N 1352396529418722433909 true Y Tools
