QorIQ® P5040 Reference Design Board

P5040RDB Active

Roll over image to zoom in

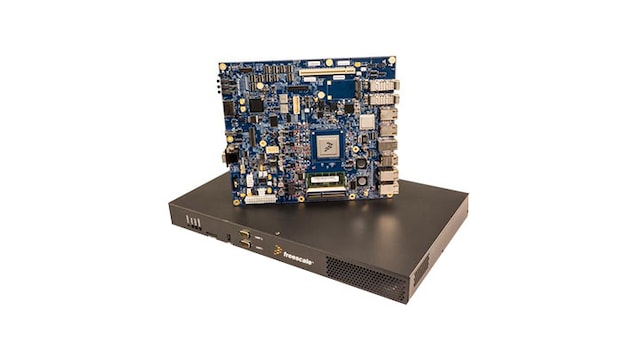

The QorIQ® P5040 reference design board (P5040-RDB) is a flexible system that supports the quad-core P5040 processor.

With frequencies scaling to 2.2 GHz and rich input/output mix, the P5040-RDB is intended for enterprise and data center networking, telecom and industrial applications, where its high-performance, high-efficiency cores and integration make it well suited as a multicore control plane processor.

The P5040-RDB can help shorten time to market. The system can serve as a reference for system-level hardware development by providing a comparison tool for customer-specific board implementations. It can also be used for custom software development and performance evaluation.

Product Details

Features

Core Complex

    QorIQ® P5040 quad-core processor built on the advanced, 64-bit e5500 Power Architecture® core

  • Up to 2.4 GHz with 64-bit ISA support (Power Architecture v2.06-compliant)
  • Three levels of instruction: user, supervisor, hypervisor
  • Hybrid 32-bit mode to support legacy software and transition to 64-bit architecture

Connectivity and Networking

  • 1 Gb Ethernet – RGMII and SGMII
  • 10 Gb Ethernet – XAUI (copper) or XFI (fiber)
  • PCI Express gen 2.0
  • SATA

Memory System

  • Supports two unbuffered DDR3 DIMM modules
  • 8 GB memory
  • NAND/NOR Flash
  • eSDHC interface

Basic Peripherals and Interconnect

  • DUART
  • USB 2.0
  • Debug (JTAG and AURORA)

Additional Features

  • IEEE® 1588 connector for external Symmetric option card
  • Temperature monitoring

Buy Options

P5040-RDB-Image

Click to expand

  • P5040-RDB
    Active

  • QorIQ P5040 Reference Design Board.
