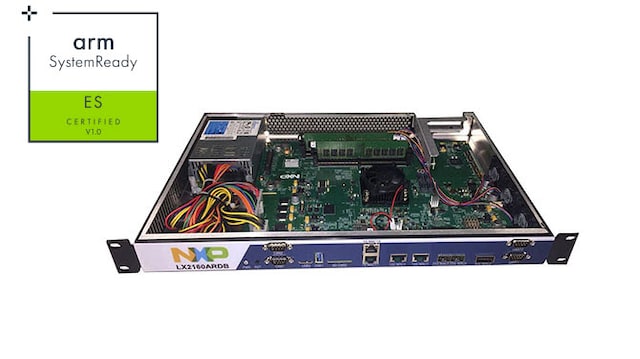

Layerscape LX2160A Reference Design Board

LX2160A-RDB

Roll over image to zoom in

The LX2160A reference design board provides a comprehensive platform that enables design and evaluation of the LX2160A or LX2162A processors. It comes preloaded with a board support package (BSP) based on a standard Linux kernel.

  • Enables network intelligence with the next generation Datapath (DPPA2) which provides differentiated offload and a rich set of IO, including 10 GE, 25 GE, 40 GE, and PCIe Gen3
  • Delivers unprecedented efficiency and new virtualized networks
  • Supports designs in 5G packet processing, network function virtualization, storage controller, white box switching, network interface cards, and mobile edge computing
  • Supports all six LX2 family members (16-core LX2160A and LX2161A; 12-core LX2120A and LX2122A; and 8-core LX2080A and LX2082A)

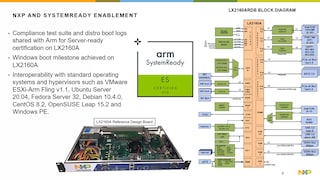

  • Certified to the Arm SystemReady ES  standard to ensure interoperability with standard operating systems and hypervisors.

Block Diagram

Layerscape LX2160A

LX2160A-RDB reference design board block diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

Layerscape Processors

  • LX2160A: Layerscape® LX2160A, LX2120A, LX2080A Processors
  • LS2088A: Layerscape® 2088A and 2048A Processors
  • LX2162A: Layerscape® LX2162A, LX2122A, LX2082A Processors

Features

Processor

  • LX2160A, 16x Arm® Cortex®-A72 CPU, 2.2GHz

Memory

  • Two DDR4 UDIMM to 3200MT/s
  • 32GB total capacity (16GB per UDIMM)
  • Flash: 128MB NOR, 128GB eMMC

Ethernet

  • One 40G Ethernet QSFP+
  • Two 25G Ethernet SFP+
  • Two RJ45 10G Ethernet
  • Two RJ45 1G Ethernet

Other IO

  • One PCIe Gen3 x8 slot
  • One PCIe Gen3 x4 slot
  • Four SATA3.0 connectors
  • One USB3.0 Type A connector
  • One USB3.0 micro-AB connector

Buy Options

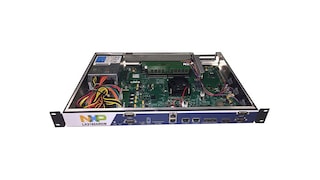

LX2160A-RDB-B-Image

Click to expand

  • LX2160A-RDB-B
    Active

  • Layerscape LX2160A Reference Design Board.

  • Kit Contains

    • LX2160A RDB chassis assembly based upon Rev 2 silicon
    • Bag, zip contains 1U Chassis Bracket (2PCS) + Screw (8PCS)
    • Power cord, 3-conductor, C13 PSE
    • Cable, Ethernet, CAT-6 Ethernet cable, 1.8M
    • DB9 Pro series shielded serial cable, null
    • Insert card, LX2160-RDB
  • $5127.85 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
LX2RDBKIT1-10-40-Image

Click to expand

  • LX2RDBKIT1-10-40
    Active

  • Layerscape LX2160A Reference Design Board.

  • Kit Contains

    • 2 Cable Ethernet, CAT6, 6ft, orange, Mfgr: CableWholesale.com, Mfgr PN: 10X8-03106, For Ports: 10G MAC3/4
    • 1 40G-BASE-SR4 QSFP+ Optical Transceiver Module, 40Gbps multi-mode, 850nm, 150m, Mfgr: Mellanox, Mfgr PN: MC2210411-SR4, For Ports: 40G MAC2
    • 1 QSFP+ LAN Optical Cable, multi-mode, OM3 50/125, MPO Connector, 3m, Mfgr: FS.com, Mfgr PN: 12FMPOOM3 - 66239, For Ports: 40G MAC2
    • 1 SDHC Memory Card, 32GB, Mfgr: Samsung, Mfgr PN: MB-ME32GA/AM, For Ports: SD CARD
  • $172.50 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
LX2RDBKIT2-25G-Image

Click to expand

  • LX2RDBKIT2-25G
    Active

  • Layerscape LX2160A Reference Design Board.

  • Kit Contains

    • 1 SFP-25G-SR Optical Transceiver Modules, 25Gbps multi-mode, 850nm, 100m, Mfgr: Mellanox, Mfgr PN: MMA2P00-AS, For Ports: 25G MAC5/6
    • 1 LAN Optical Cable, multi-mode, OM3 50/125, LC Duplex Connector, 3m, Mfgr: FS.com, Mfgr PN: OM3-LC-LC-DX-FS-3M-PVC - 41728, For Ports: 25G MAC5/6
  • $345.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
