Layerscape FRWY-LS1012A Board

FRWY-LS1012A
Active

Roll over image to zoom in

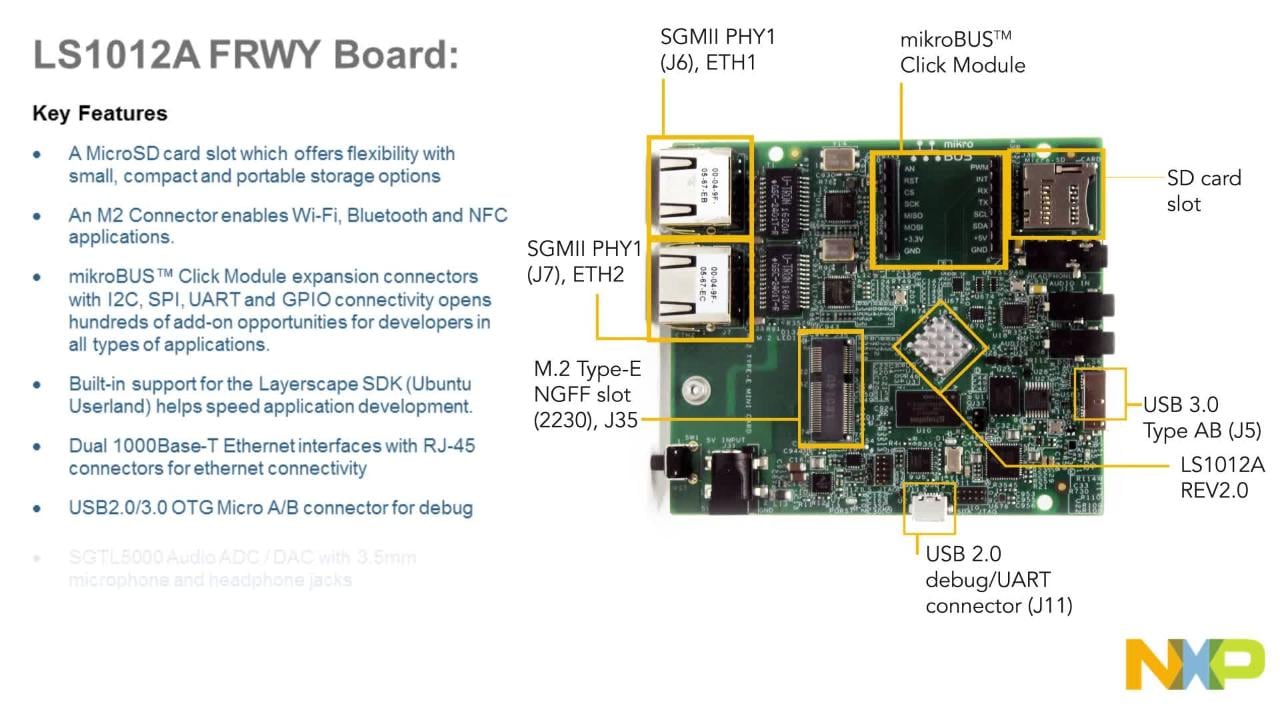

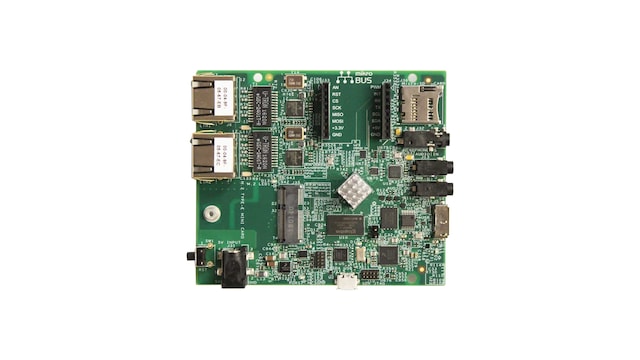

The Layerscape® FRWY-LS1012A board is an ultra-low-cost evaluation and development platform for LS1012A Series Communication Processors built on Arm® Cortex®-A53. This tool provides a hands-on experience for IoT, edge computing, and various advanced embedded applications. Features include easy access to processor I/O, low-power operation, micro SD card storage, an M2 connector, a small form factor, and expansion board options via mikroBUS™ Click Module. The mikroBUS™ Module provides easy expansion via hundreds of powerful modules supporting sensors, actuators, memories, and displays.

Block Diagram

Layerscape FRWY-LS1012A

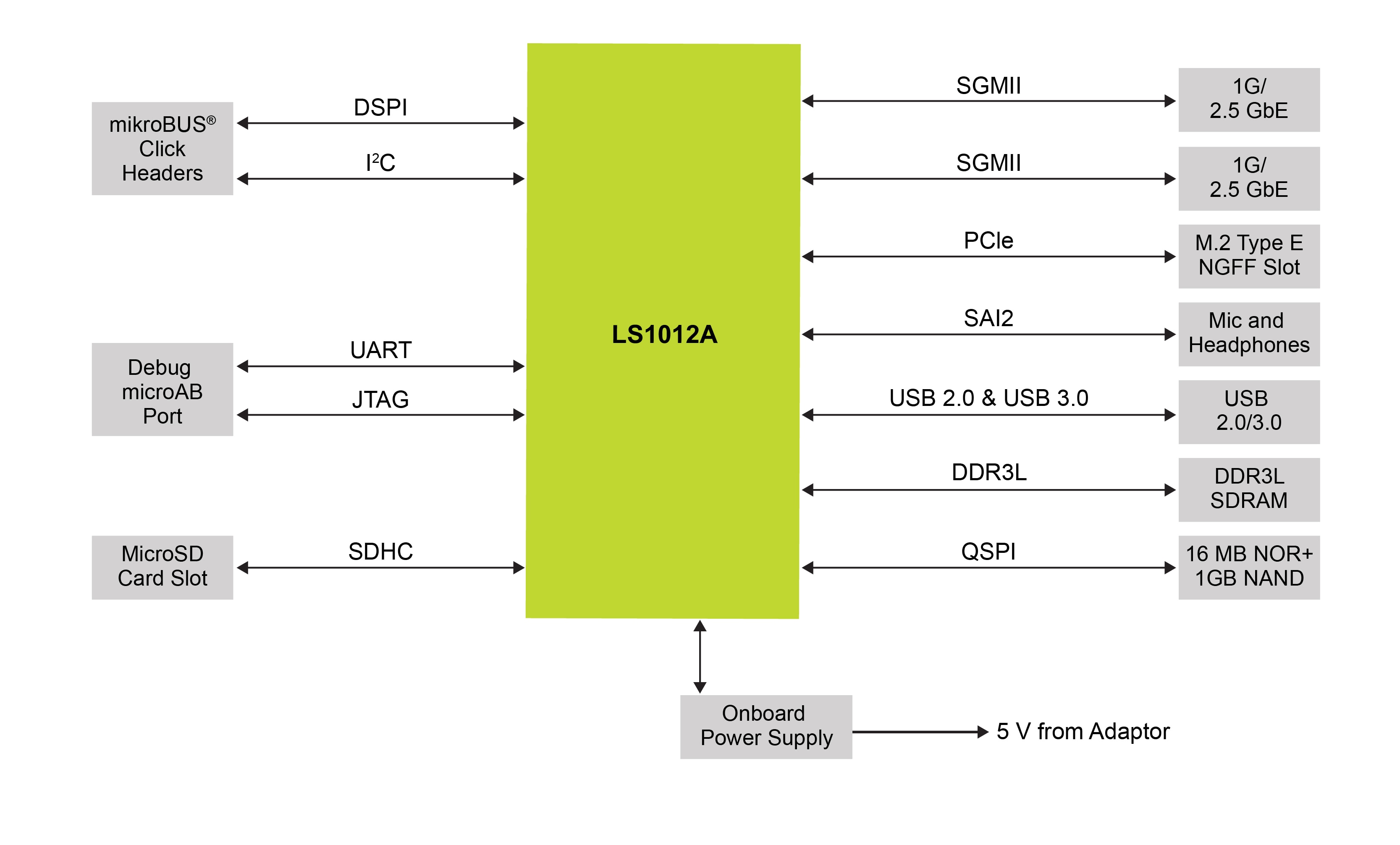

FRWY-LS1012A Board Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

Layerscape Processors

  • LS1012A: Layerscape® 1012A Low Power Processor

Features

Processor

LS1012ASE7KKB MCU
  • 1000 MHz CPU
  • 1 GT/s DDR3L
  • 212 FC-LGA

Memory

  • 16 MB serial NOR + 1 GB serial NAND QSPI 512 MB DDR3L SDRAM MicroSD card slot

Power Management

  • VR5100 Power Management IC

Connectivity

  • mikroBUS™ Click expansion connectors with I2C, SPI, UART and GPIO connectivity M2 connector to enable Wi-Fi and NFC applications Dual 1000Base-T Ethernet interfaces with RJ-45 connectors USB2.0/3.0 OTG Micro A/B connector

Audio

  • SGTL5000 Audio ADC / DAC with 3.5 mm microphone and headphone jacks

Debug

  • Additional debug via Cortex 10-pin JTAG connector and CMSIS DAP through a K20 microcontroller USB2.0 Micro A/B connector for debug

Tools and OS Support

  • A rich Linux development environment will be available initially via an early access release and will be included in the Layerscape SDK release

Buy Options

FRWY-LS1012A-PB-Image

Click to expand

  • $345.39 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 10
    • Shipping: Normally ships 1-2 business days
ADD TO CART
