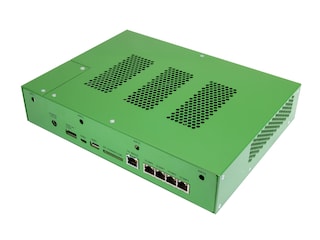

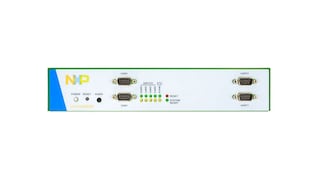

Layerscape LS1028A Reference Design Board

LS1028ARDB

Roll over image to zoom in

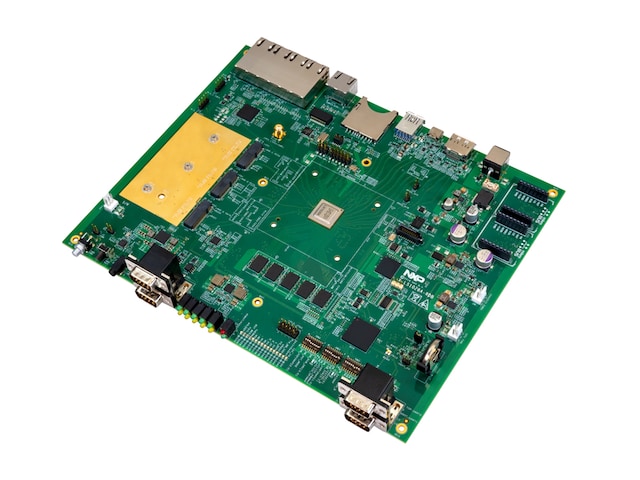

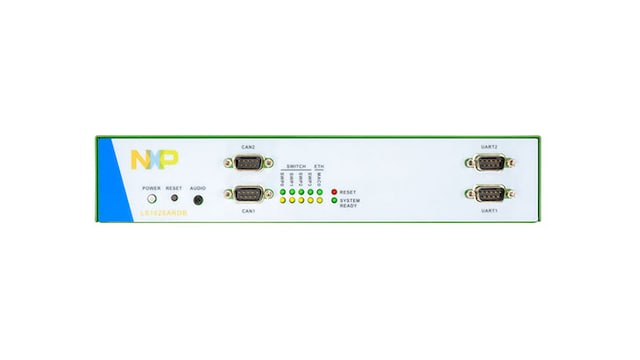

The LS1028A reference design board (RDB) is a computing, evaluation, and development platform that supports industrial IoT applications, human machine interface solutions, and industrial networking.

The LS1028A processor is dual-core 64-bit Arm® Cortex®-A72. The LS1028ARDB can help reduce development time by providing:

  • A reference for custom board development
  • A debug tool to check behavior on the board compared to custom board designs
  • A pre-loaded embedded Linux® Software Development Kit (SDK) for Layerscape® processors

Block Diagram

Layerscape LS1028A

LS1028ARDB BLOCK DIAGRAM
Get diagram PDF

Supported Devices

Processors and Microcontrollers

Layerscape Processors

  • LS1028A: Layerscape® 1028A Applications Processor

Features

Processor

  • Layerscape LS1028A dual-core processor based on Cortex-A72 at 1.3 GHz
  • ECC on internal L1, L2 caches for high-reliability applications

Memory

  • 4 GB DDR4 SDRAM w/ECC
  • 32-bit DDR4 bus at data rates up to 1600 MT/s
  • 256 MB QSPI NOR flash
  • 512 MB QSPI NAND flash
  • 8 GB eMMC
  • SDHC port connected to full-size SD slot

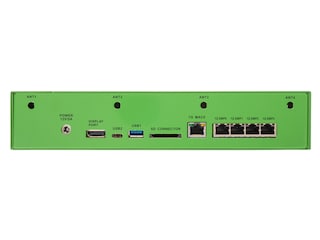

Ethernet

  • x1 RJ45 connector for 1Gbps Ethernet support w/TSN, 1588
  • x4 RJ45 connector for 1Gbps Ethernet switch support w/TSN, 1588 (QSGMII)

Basic Peripherals and Interconnect

  • 2x M.2 Type E slots with PCIe Gen 3.0 x1
  • 1x M.2 Type B slot with SATA 3.0 (resistor mux with 1 Type E slot)
  • 1x Type A USB 3.0 super-speed port
  • 1x Type C USB 3.0 super-speed port
  • 1x DisplayPort interface
  • 2x DB9 RS232 serial ports
  • 2x DB9 CAN interfaces
  • 1x 3.5 mm audio out
  • 2x MikroBUS™ sockets

Buy Options

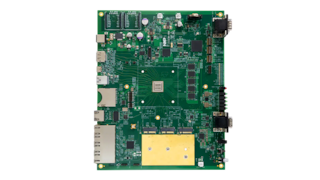

LS1028ARDB-PA-Image

Click to expand

  • LS1028ARDB-PA
    Active

  • Layerscape® 1028A Applications Processor.

  • Kit Contains:

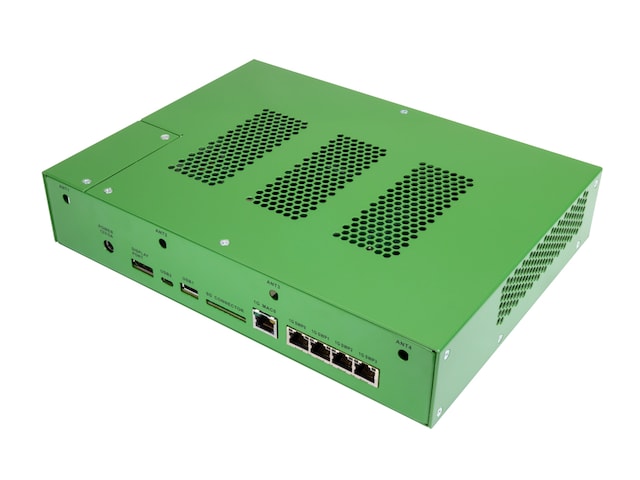

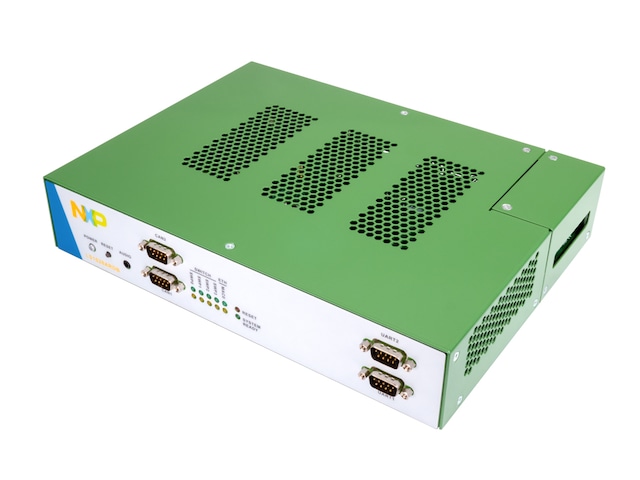

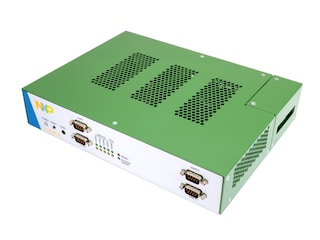

    • LS1028ARDB hardware assembly with enclosure
    • 12 V, 6.67 A AC-DC power adapter
    • Universal adapter
    • Cable, USB 3.1 Type-C Male to USB 3.0 Type-A Female, 50 mm
    • Cable, USB Type-A to DB9F (Windows 10 support), 1 m
    • Ethernet cable, 6 ft (min)
    • Cable, DB9F-to-DB9F
    • Programmed 16 GB SD card
  • $1928.24 USD
  • For a quantity of 1
    • Availability: Pending Stock
