P2020 Development System

P2020DS Active

Roll over image to zoom in

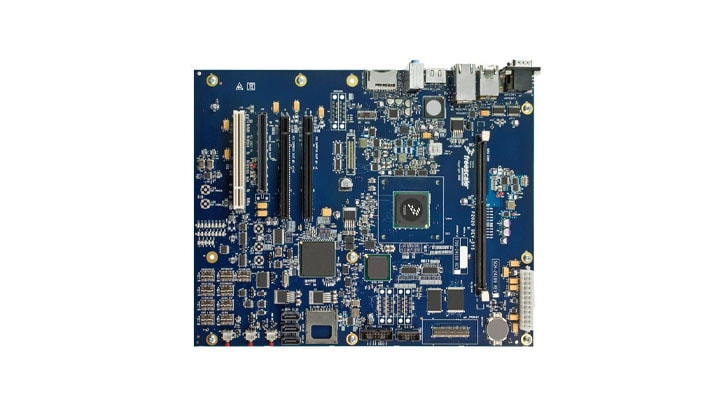

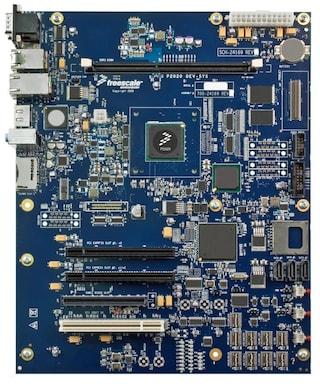

The P2020/P2010 development system (P2020DS) leverages the highly-integrated QorIQ® P2020 processor and leading-edge external components.

  • Ideal for hardware and software development for embedded applications.
  • The high level of integration in the P2020E processor helps to lower system costs, improve performance and simplify board design.
  • The P2020E processor family is based on dual e500 cores, built on Power Architecture® technology, which has a core frequency range of 800-1200 MHz.

Product Details

Features

Memory

  • 2 GB DDR3 DIMM
  • 128 MB NOR flash memory
  • 16 MB SPI ROM
  • 256 B NVRAM

Connectivity

  • PCI Express®: Dual x2 slot
  • Ethernet
  • SD/MMC card slot
  • USB Type A connector
  • UARTs: Two DB9 connectors
  • Three 10/100/1000 Ethernet connectors
  • PCI Express®: Dual x2 slot
  • SGMII riser card slot
  • SATA2
  • GPIO: 16
  • Accessible via test header
  • Documentation
  • IEEE® 1588 v2
  • Clock input from precision oscillator
  • Dual I²C
  • Power supplies

User Components

  • System logic (Pixis FPGA)
  • System clock
  • DDR clock

Buy Options

P2020DS-PC-Image

Click to expand

  • P2020DS-PC
    Active

  • QorIQ P2020 Development System, revC.

  • For a quantity of 1
Order from distributors
