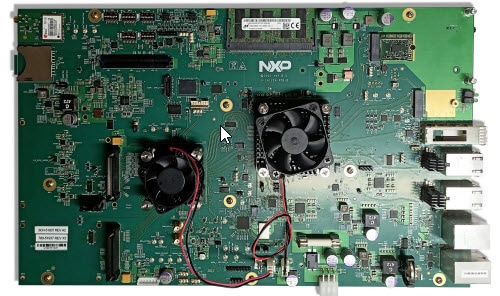

Product Details

Features

Host Processor

LX2160A, 16x Arm® Cortex®-A72 CPU, 2.2GHz

Programmablible Baseband Processor

6x 32-bit e200 Power® Architecture core complex @ 614.4 MHz
Up to 8x VSPA3-16 @ 614.4 MHz (=1.3 TFLOP)
2MB On-Chip SRAM memory

System Memory

1x 72-bit DDR4 port (64-bit data, 8-bit ECC)
32GB total capacity (16GB per UDIMM)
Flash: 128MB NOR, 128GB eMMC

Connectivity and I/O

2x 10/5G/2.5 GbE RJ45 connectors
1x 25 GbE SFP+ optical cage
PCIex2 (up to Gen3) based M.2 Type E
USB - Two high-speed USB 3.0 ports with integrated PHYs

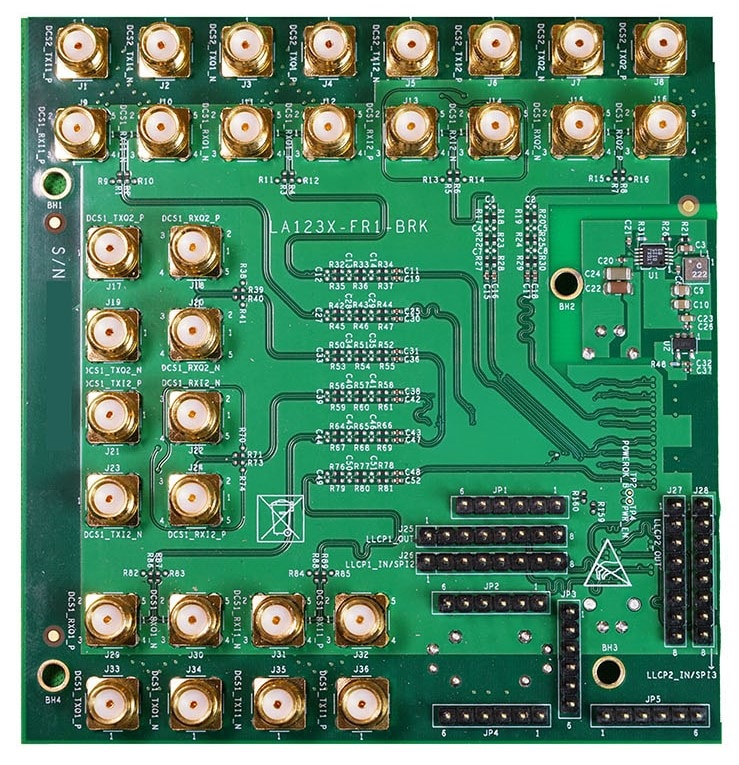

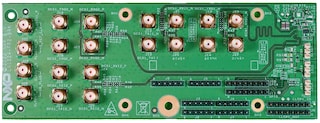

FR2 interface: 2x {I+Q} HS-DCS complex sampling rate of 1966.08 or 983.04 Msps

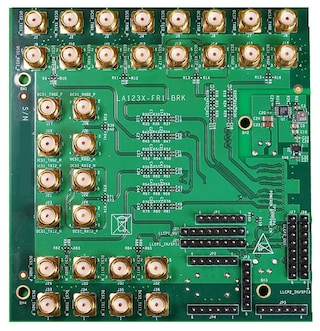

FR1 interface: 4x {I+Q} LS-DCS complex sampling up to 491.52 Msps

Time Synch & Clocks

Si5518 clock generator for 122.88 MHz, 156.25 MHz and 125 MHz Sysclk option
Si5332HD14719-GM3 clock generator for 100 MHz / 125 MHz
IEEE 1588 interface
u-blox GPS module
SYSCLK and SerDes clocks
Ethernet clocks

Acceleration

Forward Error Correction Unit (FECU)
3GPP 5G/NR 38.212 compliant gNB and UE modes
Polar decoder/encoder
LDPC decoder/encoder

Other I/O

1x tri-speed RGMII interface
1x USIM module
JTAG

More

Buy Options

Click to expand

LA1224-RDB-BHS
Active
Layerscape Access LA12xx Development System.
- 1x - LA1224-RDB hardware assembly
- 1x - Power supply 12 V DC, 21A, OUTPUT 2X3 MOLEX
- 1x - Power cord
- 2x - RJ45-to-DB9F shielded serial cable, 1 m
- 2x - Cat-6 500 MHz Gbit Ethernet cable, 5 ft
- 1x - Power cable for card external card 12V only
- 1x - Custom cable for LA9310-NLM card (47910)
- 2x - Jumper wire Female-to-Female 11.81 inch (300.00mm) 26 AWG
- 2x - Cable assembly coaxial U.FL (UMCC) to SMA 1.13 mm OD coaxial cable 7.874 inch (200.00 mm)
- 2x - Cable assembly coaxial U.FL (UMCC) to U.FL (UMCC) 1.37 mm OD coaxial Cable 3.937 inch (100.00 mm)
- 7x - Shunt 0.1IN SP jumper
- 1x - Universal adapter

$5500.00 USD
For a quantity of 1
- Availability: In Stock
- Inventory: 4
- Shipping: Normally ships 1-2 business days

ADD TO CART

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

LA1224-RDB-BLS
Active
Layerscape Access LA12xx Development System.
- 1x - LA1224-RDB hardware assembly
- 1x - Power supply 12 V DC, 21A, OUTPUT 2X3 MOLEX
- 1x - Power cord
- 2x - RJ45-to-DB9F shielded serial cable, 1 m
- 2x - Cat-6 500 MHz Gbit Ethernet cable, 5 ft
- 1x - Power cable for card external card 12V only
- 1x - Custom cable for LA9310-NLM card (47910)
- 2x - Jumper wire Female-to-Female 11.81 inch (300.00mm) 26 AWG
- 2x - Cable assembly coaxial U.FL (UMCC) to SMA 1.13 mm OD coaxial cable 7.874 inch (200.00 mm)
- 2x - Cable assembly coaxial U.FL (UMCC) to U.FL (UMCC) 1.37 mm OD coaxial Cable 3.937 inch (100.00 mm)
- 7x - Shunt 0.1IN SP jumper
- 1x - Universal adapter

$5500.00 USD
For a quantity of 1
- Availability: In Stock
- Inventory: 9
- Shipping: Normally ships 1-2 business days

ADD TO CART

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

LA1224RDB-LS-BO
Active
Layerscape^® Access LA12xx Programmable Baseband Processor.

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

LA1224RDB-HS-BO
Active
Layerscape^® Access LA12xx Programmable Baseband Processor.

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Documentation

Quick reference to our documentation types.

3 documents

Compact List

How to Update Software Images on LA1224-RDB[UG10135]

HTML | PDFJul 31, 2024Rev 1.0
LA1224 Reference Design Board (LA1224-RDB-B) User Guide[UG10144]

PDFJul 17, 2024Rev 2

LA1224 Reference Design Board (LA1224-RDB-B) User Manual[UM12137]

PDFJul 17, 2024Rev 2
