Layerscape LS2088A Reference Design Board

LS2088A-RDB

Roll over image to zoom in

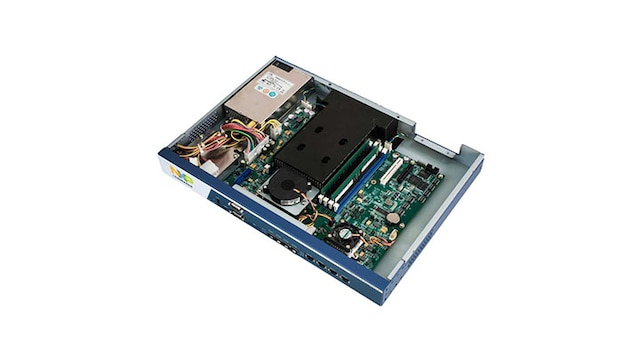

The LS2088A reference design board provides a comprehensive platform that enables design and evaluation of the product (LS2088A processor). This RDB comes pre-loaded with a board support package (BSP) based on a standard Linux kernel.

  • Enables network intelligence with the next generation Datapath (DPPA2) which provides differentiated offload and a rich set of IO
  • Simplifies programming
  • Delivers unprecedented efficiency and new virtualized networks
  • Supports designs in enterprise SDN switching and routing, cloud data center switching, wireless cell site routing, as well as many control-based applications like control plane functions for branch routers, chassis switches, firewalls and WAN optimization controllers

Block Diagram

Layerscape LS2088A

LS2088A Reference Design Board
Get diagram PDF

Supported Devices

Processors and Microcontrollers

Layerscape Processors

  • LS2088A: Layerscape® 2088A and 2048A Processors
  • LS2084A: Layerscape 2084A and 2044A Multicore Processors
  • LX2160A: Layerscape® LX2160A, LX2120A, LX2080A Processors

Features

Processor

  • LS2088A CPU Up to 8x Arm® Cortex®-A72 CPU
  • Up to 2.0GHz core speed

Memory

  • SDRAM Supporting dual ranked DIMM slot
  • Two x DDR4 UDIMM x72 supports for 4GB memory per slot, 2.1 GT/s data rate. ECC enabled
  • Support for an additional dual rank UDIMM slot. One x ½ UDIMM x40 support for 1 GB memory, 1.6 GT/s data rate
  • 128MB NOR flash
  • 8-bit 2GB SLC NAND flash

Ethernet

  • Support for up to 4-ports of 10GbE, SFP+
  • Support for up to 4-ports of 10GbE, copper (4xRJ45)

Basic Peripherals and Interconnect

  • PCI Express
    • One standard slot x8 PCIe connector to support 1 x8 PCIe Gen3 or 2x4 PCIe through a connector
  • USB 3.0
    • Two USB type A connectors on the front or rear panel connected to a USB PHY. One configured as a host, the second as OTG
  • SATA
    • Support for 2xSATA connectors. These will be muxed from the PCIe SERDES and configure through a switch on the board

Buy Options

LS2088ARDB-PC-Image

Click to expand

  • LS2088ARDB-PC
    Active

  • Layerscape LS2088A Reference Design Board.

  • $3573.72 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 8
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
