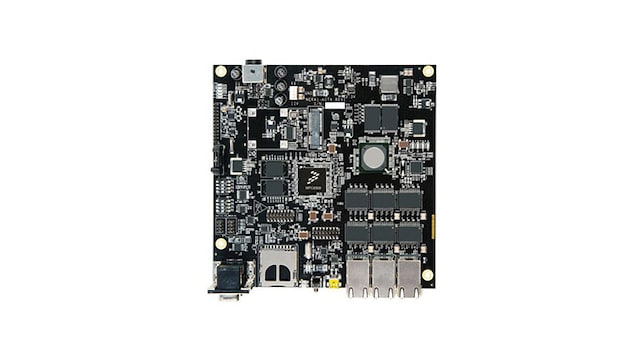

MPC8308-RDB Reference Platform

MPC8308RDB No Longer Manufactured

Roll over image to zoom in

The NXP® MPC8308RDB reference platform is ideal for hardware and software development for applications including consumer printing, wireless access points, industrial control and factory automation.

The ultra-low-cost MPC8308 communications processor meets the requirements of several low-end embedded networking applications that require low power consumption, high-speed peripherals and a small-footprint package design.

Product Details

Supported Devices

Processors and Microcontrollers

PowerQUICC II Pro (MPC83xx)

  • MPC8308: Low-Power PowerQUICC® II Pro Processor with DDR2, eSDHC, PCI Express, eTSEC, USB, IEEE® 1588

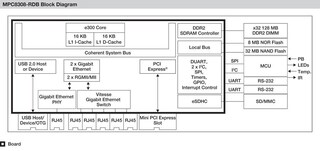

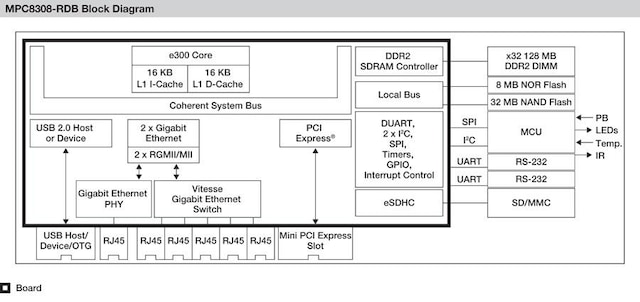

Features

Microcontroller

  • MPC8308 PowerQUICC® II Pro processor up to 333/266 MHz (CPU/DDR2)

Memory

  • 32-bit DDR2 memory controller with population option for 16-bit
    • Local bus
  • NAND flash/NOR flash memory

Connectivity

  • Ethernet
    • Four-port Gigabit Ethernet switch, supporting RGMII/MII
    • Single Gigabit Ethernet PHY (RGMII)
  • PCI Express® interconnect
    • MiniPCI Express for WLAN
  • Single high-speed USB 2.0 supporting host, device, or OTG
  • eSDHC
    • Single-port SD/MMC connector

Components

  • Two I²C
  • Dual UART

Support

  • IEEE® 1588v2 support for timing synchronization
N true 0 TSPMPC8308RDBen 4 Fact Sheet Fact Sheet t523 2 Supporting Information Supporting Information t531 1 User Guide User Guide t792 1 en_US 2 1 1 English The MPC8308 is a cost-effective, low-power, highly integrated PowerQUICC<sup>&#174;</sup> &#174; II Pro processor designed to address the requirements of networking applications such as smart grid home energy gateways, data concentrators, wireless LAN access points, wireless femto base stations and industrial applications. The MPC8308 processor incorporates the e300c3 (603e core compatible) core at 266, 333 and 400 MHz with 1.92 DMIPS/MHz. 1257540597818721504942 TSP 597.2 KB None None documents None 1257540597818721504942 /docs/en/fact-sheet/MPC8308FS.pdf 597220 /docs/en/fact-sheet/MPC8308FS.pdf MPC8308FS N N 2020-02-10 MPC8308 PowerQUICC ® II Pro Processor - Fact Sheet /docs/en/fact-sheet/MPC8308FS.pdf /docs/en/fact-sheet/MPC8308FS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 pdf N en Feb 12, 2020 Fact Sheet t523 Fact Sheet Fact Sheet Y N MPC8308 PowerQUICC ® II Pro Processor - Fact Sheet 2 1 English The MPC8308-RDB reference platform is ideal for hardware and software development for embedded applications. The MPC8308-RDB integrates leading-edge external components: 5 x Gigabit Ethernet ports, 1 x USB 2.0, x1 mini PCI Express &#174; connector and an SD/MMC card interface. The MPC8308-RDB incorporates a pre-installed board support package (BSP) containing a boot loader (u-boot). 1257796438120723429945 TSP 346.9 KB None None documents None 1257796438120723429945 /docs/en/fact-sheet/MPC8308RDBFS.pdf 346903 /docs/en/fact-sheet/MPC8308RDBFS.pdf MPC8308RDBFS N N 2020-02-12 MPC8308-RDB Reference Platform - Fact Sheet /docs/en/fact-sheet/MPC8308RDBFS.pdf /docs/en/fact-sheet/MPC8308RDBFS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 pdf N en Feb 12, 2020 Fact Sheet t523 Fact Sheet Fact Sheet Y N MPC8308-RDB Reference Platform - Fact Sheet false en_US 1 3 3 English This document describes the hardware features of the board including specifications, block diagram, connectors, interfaces, and hardware straps. It also describes the board settings and physical connections needed to boot the MPC8308_RDB. 1274241038262711666826 TSP 685.2 KB None None documents Y None 1274241038262711666826 /docs/en/user-guide/MPC8308RDBUG.pdf 685224 /docs/en/user-guide/MPC8308RDBUG.pdf MPC8308RDBUG N 2010-05-18 PowerQUICC<sup>&#174;</sup>&#8482; MPC8308_RDB User&#8217;s Guide /docs/en/user-guide/MPC8308RDBUG.pdf /docs/en/user-guide/MPC8308RDBUG.pdf User Guide N 132339537837198660 2023-06-19 pdf en Mar 30, 2010 User Guide t792 User Guide User Guide Y N PowerQUICC<sup>&#174;</sup>&#8482; MPC8308_RDB User&#8217;s Guide false en Supporting Information Supporting Information 1 4 3 English 1274241489005697805030 TSP 486.5 KB None None documents None 1274241489005697805030 /docs/en/supporting-information/MPC8308RDBSCH.pdf 486458 /docs/en/supporting-information/MPC8308RDBSCH.pdf MPC8308RDBSCH documents N 2010-05-18 MPC8308-RDB Schematics /docs/en/supporting-information/MPC8308RDBSCH.pdf /docs/en/supporting-information/MPC8308RDBSCH.pdf Supporting Information N 371282830530968666 2022-12-07 pdf en Sep 19, 2011 371282830530968666 Supporting Information Y N MPC8308-RDB Schematics false 0 MPC8308RDB downloads en true 0 Y TSP Fact Sheet 2 /docs/en/fact-sheet/MPC8308FS.pdf 2020-02-10 1257540597818721504942 TSP 1 Feb 12, 2020 Fact Sheet Fact Sheet The MPC8308 is a cost-effective, low-power, highly integrated PowerQUICC<sup>&#174;</sup> &#174; II Pro processor designed to address the requirements of networking applications such as smart grid home energy gateways, data concentrators, wireless LAN access points, wireless femto base stations and industrial applications. The MPC8308 processor incorporates the e300c3 (603e core compatible) core at 266, 333 and 400 MHz with 1.92 DMIPS/MHz. None /docs/en/fact-sheet/MPC8308FS.pdf English 597220 None Fact Sheet 2022-12-07 N /docs/en/fact-sheet/MPC8308FS.pdf MPC8308 PowerQUICC ® II Pro Processor - Fact Sheet /docs/en/fact-sheet/MPC8308FS.pdf documents 736675474163315314 Fact Sheet N Y en None Y t523 pdf 1 N N MPC8308 PowerQUICC ® II Pro Processor - Fact Sheet 597.2 KB MPC8308FS N 1257540597818721504942 /docs/en/fact-sheet/MPC8308RDBFS.pdf 2020-02-12 1257796438120723429945 TSP 2 Feb 12, 2020 Fact Sheet Fact Sheet The MPC8308-RDB reference platform is ideal for hardware and software development for embedded applications. The MPC8308-RDB integrates leading-edge external components: 5 x Gigabit Ethernet ports, 1 x USB 2.0, x1 mini PCI Express &#174; connector and an SD/MMC card interface. The MPC8308-RDB incorporates a pre-installed board support package (BSP) containing a boot loader (u-boot). None /docs/en/fact-sheet/MPC8308RDBFS.pdf English 346903 None Fact Sheet 2022-12-07 N /docs/en/fact-sheet/MPC8308RDBFS.pdf MPC8308-RDB Reference Platform - Fact Sheet /docs/en/fact-sheet/MPC8308RDBFS.pdf documents 736675474163315314 Fact Sheet N Y en None Y t523 pdf 1 N N MPC8308-RDB Reference Platform - Fact Sheet 346.9 KB MPC8308RDBFS N 1257796438120723429945 Supporting Information 1 /docs/en/supporting-information/MPC8308RDBSCH.pdf 2010-05-18 1274241489005697805030 TSP 4 Sep 19, 2011 Supporting Information None /docs/en/supporting-information/MPC8308RDBSCH.pdf English documents 486458 None 371282830530968666 2022-12-07 /docs/en/supporting-information/MPC8308RDBSCH.pdf MPC8308-RDB Schematics /docs/en/supporting-information/MPC8308RDBSCH.pdf documents 371282830530968666 Supporting Information N en None Y pdf 3 N MPC8308-RDB Schematics 486.5 KB MPC8308RDBSCH N 1274241489005697805030 User Guide 1 /docs/en/user-guide/MPC8308RDBUG.pdf 2010-05-18 1274241038262711666826 TSP 3 Mar 30, 2010 User Guide User Guide This document describes the hardware features of the board including specifications, block diagram, connectors, interfaces, and hardware straps. It also describes the board settings and physical connections needed to boot the MPC8308_RDB. Y None /docs/en/user-guide/MPC8308RDBUG.pdf English 685224 None User Guide 2023-06-19 /docs/en/user-guide/MPC8308RDBUG.pdf PowerQUICC<sup>&#174;</sup>&#8482; MPC8308_RDB User&#8217;s Guide /docs/en/user-guide/MPC8308RDBUG.pdf documents 132339537837198660 User Guide N en None Y t792 pdf 3 N PowerQUICC<sup>&#174;</sup>&#8482; MPC8308_RDB User&#8217;s Guide 685.2 KB MPC8308RDBUG N 1274241038262711666826 true Y Tools
