P2020 Reference Design Board

P2020RDB Active

Roll over image to zoom in

The NXP® P2020RDB is a highly-integrated reference design board that can help shorten your time to market.

  • Ideal for networking, wired and wireless access, industrial and medical applications.
  • This cost-effective board is based on the QorIQ® P2020E processor family, along with leading-edge external components to help you quickly design and implement your target application.
  • The P2020RDB leverages the P2020E processor and supports both the dual-core P2020E and single-core P2010E configurations.
  • The P2020E processor family is based on dual e500 cores, built on Power Architecture® technology, which has a core frequency range of 800–1200 MHz.

Product Details

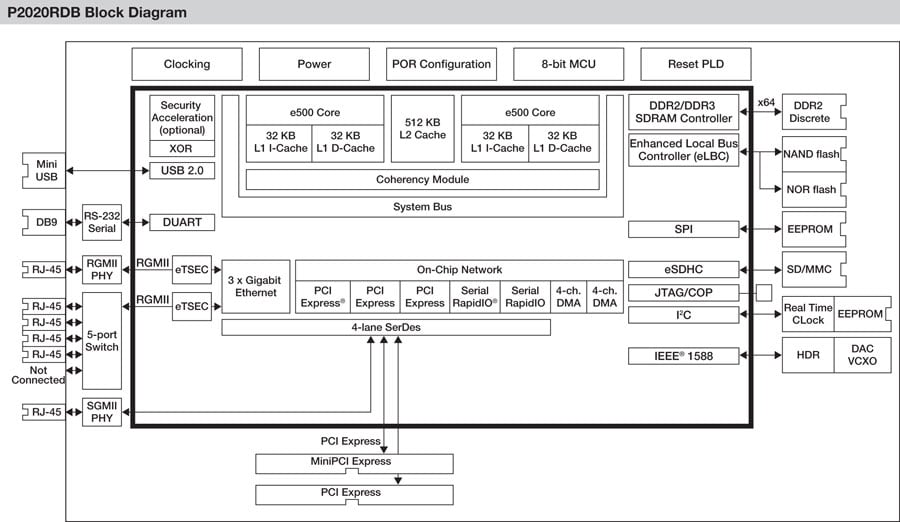

Block Diagram

P2020RDBBD

P2020RDB
Get diagram PDF

Features

Processor

  • QorIQ® P2020E processor family

Memory

  • 1 GB DDR2
  • 16 MB (128 MB device) NOR
  • 32 MB NAND flash memory
  • 16 MB SPI ROM

Connectivity

  • PCI Express
  • Ethernet - Six 10/100/1000 ports
  • Dual I²C
  • SD/MMC card slot
  • USB
  • UART: One DB-9 connector

Size

  • Mini-ITX Form Factor
    • 170 mm x 170 mm

Tools and OS Support

  • Software Tools
    • Linux® 2.6.x Kernel
    • Cross compile and native GNU toolchain
    • CodeWarrior™ USB TAP
  • Lead-Free (RoHS), CE, and FCC Certification
