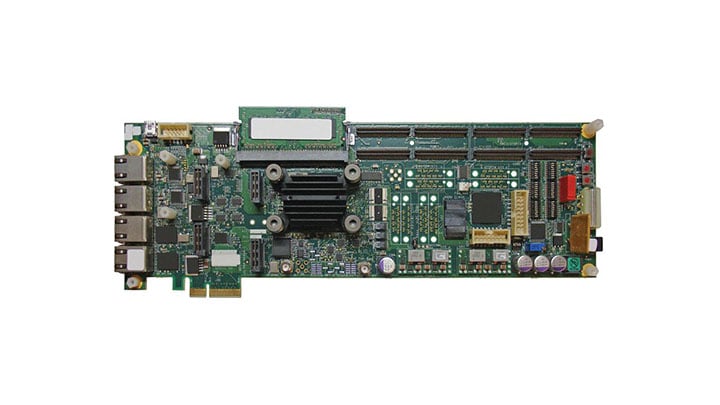

QorIQ® P1021/P1012 Modular Development System
The QorIQ® P1021/P1012 Modular Development System is designed for hardware and software developers using the P1021/P1012 QorIQ processor family to accelerate development and testing and improve time to market. The P1021/P1012 MDS enables:
- Silicon bring-up/verification
- Software/application development and support
- Performance benchmarking
- Evaluation and prototyping
The P1021/P1012 MDS consists of multiple boards that provide a comprehensive development system—a P1021/P1012 processor board, a platform and several expansion modules adding support for a TDM, ATM, etc.
Product Details
Features
Debug
- Debug port access via JTAG/COP connector
Support
- Supports both the P1021/P1012, running up to 800 MHz at 0.95V core voltage in a 689-pin TEBGA 1 mm pitch package
- DDR3 SODIMM with 512 MB and ECC support
- PCI Express® adapter
- Dual 10/100 Mbps Ethernet ports for QUICC Engine® module
- Additional three 10/100/1000 Mbps Ethernet ports from the platform
- Dual RS232 transceiver connected to DUART
- 2x LYNXx1 modules provide dual Serial
- 4x LYNX connected to PCI Express adapter through PCI Express mux to support host or agent modes
- Local bus
- 16 MB flash on eSPI interface
- Two I²C buses
- Stand-alone mode
- PCI Express endpoint mode-plugged into a PC as standard PC card
Expansion Modules
- PQ-MDS-T1—Supports E1/T1, DS3, T3 I/F with an option of two POTS analog telephone lines
- PQ-MDS-QOC3—Supports up to 4x 155 Mbps optical transceivers for evaluating the UTOPIA L2 bus
- PQ-MDS-PCI Express—Expansion module supporting multiple PCI Express agents
CodeWarrior® Tools Support
-
Development Tools Linux® OS 2.6, supporting DUART, local bus, DDR, flash, TSEC, I²C, PCI Express (root complex and end point), and SPI
Typical Applications for the P1021/P1012 QorIQ Processors
- Access gateway (IPv4 forwarding/security)
- SMB/SME applications
- Multi-service routers
- Industrial networking
