P1020RDB-PD
Active -

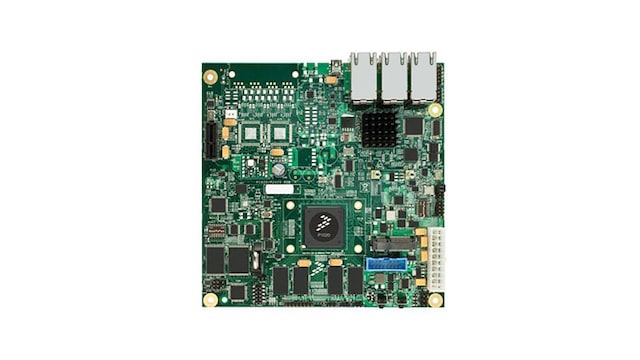

QorIQ P1020/11 Reference Design Board, revD.
QorIQ® P1020 and P1011 Reference Design Board
The QorIQ® P1020 reference design board is a feature-rich platform that supports a wide range of different application needs.
- Features 1 GB unbuffered DDR3 SDRAM, 16 MB NOR flash and 32 MB NAND flash, where the platforms can boot from either NOR or NAND flash memory.
- Supports 6 Gigabit-capable ports via an SGMII PHY, an RGMII PHY and an on-board switch with four ports, as well as two ports of USB on-the-go (OTG), four FXS ports and one FXO port via relay.

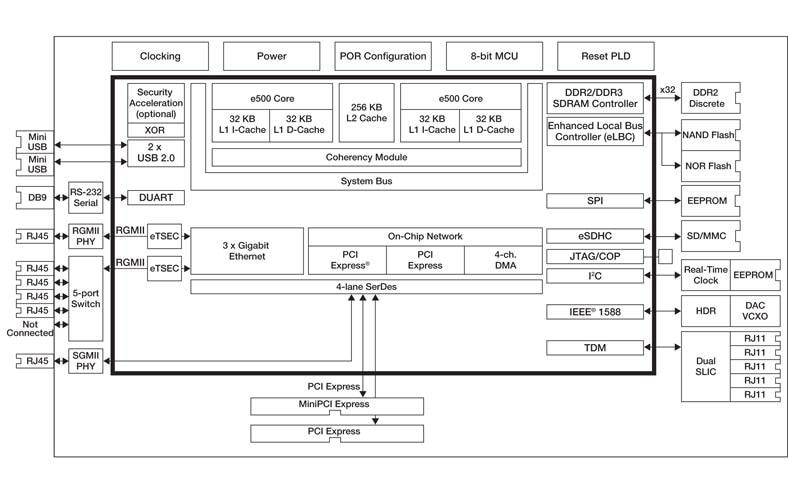

Product Details
Features
Memory
- 1 GB DDR3
- 16 MB (128 MB device) NOR flash memory
- 32 MB NAND flash memory
- 16 MB SPI ROM
Connectivity
- PCI Express® Interconnects
- One standard PCI Express connector (x1)
- One mini PCI Express connector (x1)
- Ethernet Six 10/100/1000 ports as follows:
- Four ports from L2 switch connected to eTSEC1
- One SGMII PHY connected to eTSEC2
- One RGMII PHY connected to eTSEC3 IEEE 1588 v2
- Clock input from DAC/VCXO circuitry
- Accessible via test header
- System Integration
- Dual I®C
- SD/MMC card slot
- Dual USB
- Mini-AB connectors on I/O panel (default)
- UARTs
- One DB9 connector
- Dual SLIC for FXS/FXO interfaces Mini-ITX form factor
- 170 mm x 170 mm
- 6-layer PCB routing (4-layer signals, 2-layer power, and ground) lead-free (RoHS), CE, and FCC certification software tools
- Linux® 2.6.x kernel
- Cross compile and native GNU toolchain
