LA1224-RDB-BHS
Active
Buy Options
LA1224-RDB-BHS
Active
12NC: 935438805598
Details
- Min. Package Quantity: 1
- Min. Order Quantity: 1
- Lead Time: 13 weeks
Operating Features
No information available
Environmental
| Part/12NC | PbFree | EU RoHS | Halogen Free | REACH SVHC | Weight (mg) |
|---|---|---|---|---|---|
LA1224-RDB-BHS(935438805598) | Not Available | Compliant | Not Available | Compliant | 453592.0 |
Quality
| Part/12NC | Safe Assure Functional Safety |
|---|---|
LA1224-RDB-BHS (935438805598) | No |
Shipping
| Part/12NC | Harmonized Tariff (US)Disclaimer | Export Control Classification Number (US) | CCATS |
|---|---|---|---|
LA1224-RDB-BHS (935438805598) | 847150 | 5A002A1 | G185079 |
More about LA1224-RDB

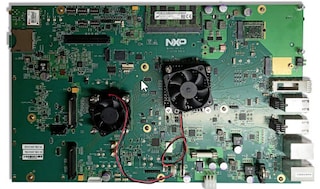

The Layerscape Access LA1224 reference design board is a comprehensive development system with a combination of an advanced NXP LX2160A CPU processor and NXP LA1224 programmable baseband processor, enabled including High Speed ADC/DAC functionality. The LA1224-RDB comes preloaded with a board support package (BSP) based on a standard Linux kernel. The board is lead-free and RoHS-compliant.
