S32K1 Microcontrollers for Automotive General Purpose

S32K1 Active

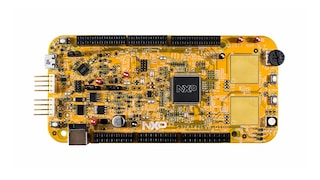

Roll over image to zoom in

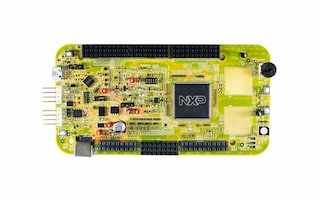

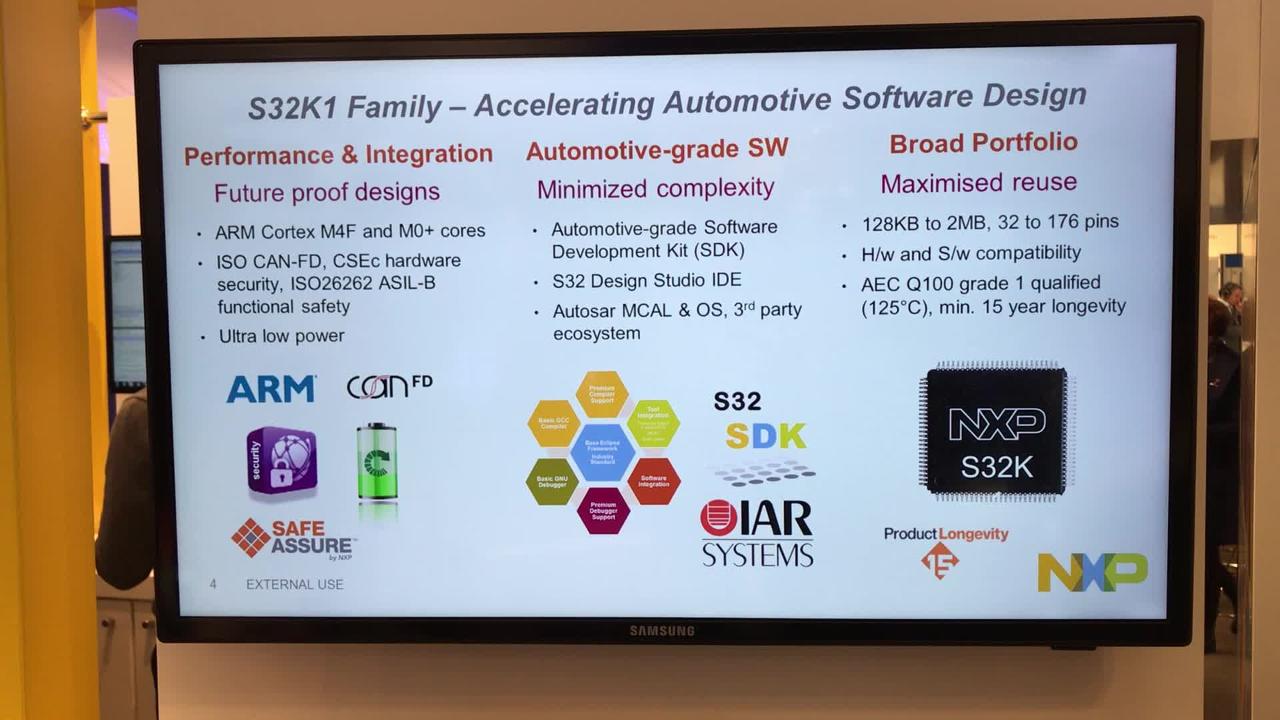

The S32K1 Family of 32-bit microcontrollers (MCUs) offers Arm® Cortex®-M-based MCUs, along with a basic cryptographic security engine. S32K1 Family offers scalability in memory and peripherals, ensuring high-performance and functional safety compliant with ISO 26262 up to ASIL B.

S32K1 Family is accompanied by a complete production-grade software ecosystem. S32K1 MCUs feature ultra-low-power operating modes and are supported by a comprehensive suite of production grade tools and software including an automotive-grade Software Development Kit (SDK) suitable for both AUTOSAR® and non-AUTOSAR applications.

S32K1 MCUs are available in various package types, including QFN, LQFP and MAPBGA, providing flexibility in integration and design.

Block Diagram

S32K1 Family Features

S32K1 Family Features
Get diagram PDF

Features

Scalable Single Platform

  • 48 MHz Cortex-M0+ core or 80/112 MHz Cortex-M4F core
  • 128 kB to 2 MB flash memory with ECC. Up to 4KB EEPROM
  • 12-bit 1 Msps ADC, 16-bit FlexTimers with dead-time insertion and fault detection
  • Scalable low power Run and Stop modes. Fast wake-up, clock and power gating
  • QFN, LQFP and MAPBGA packages. -40 to 125/150° C. Minimum 15 years longevity
  • AEC-Q100 qualified
    • Grade 0: -40° C to +150° C Ta
    • Grade 1: -40° C to +125° C Ta
    • Grade 2: -40° C to +105° C Ta

Safety, Security and Connectivity

  • Functional Safety ISO 26262 compliant, up to ASIL B
  • HW and SW watchdogs, clock/power/temperature monitors
  • Safety documentation and SafeAssure community support
  • CSEc security engine - AES-128, secure boot and key storage
  • Ethernet (10/100 Mbit/s), CAN FD, FlexIO (UART, I²C, SPI, I²S, LIN, PWM...), serial audio interface, QSPI

Complete Production-Grade Software Ecosystem

  • S32 Design Studio IDE: Eclipse, GCC and debugger
  • Production-grade S32 Software Development Kit (S32 SDK): SPICE Level 3 compliant, MISRA tested
  • NXP AUTOSAR MCAL (ISO 26262 and QM compliant) and OS
  • Security firmware - NXP provided
  • Core Self-Test Library for functional safety applications
  • Production-grade ASIL compliant Real-Time Drivers (RTD) support
  • Model-Based Design Toolbox (MBDT) for MATLAB® and Simulink®, FreeMASTER (Lite) plus Motor Control Application Tunning (MCAT) tool, and Automotive Math and Motor Control Library (AMMCLib) set
  • Third-party ecosystem support to reduce time-to-market

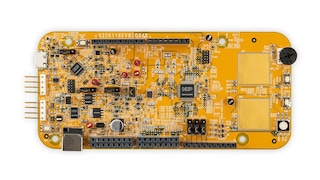

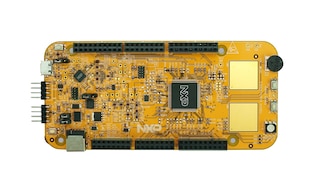

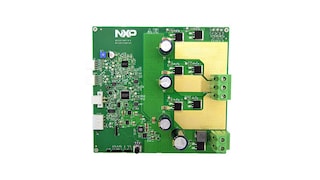

Software Enablement

Buy/Parametrics

Quick reference to our part nomenclature.

1-10 of 55 results

Include 0 NRND

Part

Show description

Order

CAD Model

Status

Core: Number of cores (SPEC)

Core Type

Operating Frequency [Max] (MHz)

Flash (kB)

SRAM (kB)

EEPROM (kB)

External memory/Connectivity interfaces

Serial Communication

I2S

GPIO

CAN

CAN FD

Serial Audio Interface (SAI)

Ethernet Type

Human Machine Interface

Security Modules

Timers [Number, bits]

PWM [Number, bits]

ADC [Number, bits, channels]

DAC [Number, bits]

Supply Voltage [Min to Max] (V)

Ambient Operating Temperature (Min to Max) (℃)

Junction Temperature (Min to Max) (℃)

Package Type

Package Pitch (mm)

SafeAssure Functional Safety

ASIL Certification

Budgetary Price excluding tax

AEC-Q100 Temperature Range

FS32K116LAT0MFMT
Data Sheet

Active

1

Arm Cortex-M0+

48

128

17

2

—

1 x I²C, 1 x SPI, 2 x UART

—

28

1

1

—

—

flexible input/output

CSEc

2 x 16

2 x 32

1, 12, 13

1 x 8

2.7 to 5.5

-40 to 125

-40 to 135

HVQFN32

0.5

ISO 26262

up to ASIL B

1K @ US$1.66

—

FS32K116LAT0MLFT
Data Sheet

Active

1

Arm Cortex-M0+

48

128

17

2

—

1 x I²C, 1 x SPI, 2 x UART

—

43

1

1

—

—

flexible input/output

CSEc

2 x 16

2 x 32

1, 12, 13

1 x 8

2.7 to 5.5

-40 to 125

-40 to 135

LQFP48

0.5

ISO 26262

up to ASIL B

1K @ US$1.73 - 1K @ US$1.79

—

FS32K116LIT0VFMT
Data Sheet

Active

1

Arm Cortex-M0+

48

128

17

2

—

1 x I²C, 1 x SPI, 2 x UART

—

28

1

—

—

—

flexible input/output

CSEc

2 x 16

2 x 32

1, 12, 13

1 x 8

2.7 to 5.5

-40 to 105

-40 to 125

HVQFN32

0.5

ISO 26262

up to ASIL B

1K @ US$1.59

grade 2

FS32K116LIT0VLFT
Data Sheet

Active

1

Arm Cortex-M0+

48

128

17

2

—

1 x I²C, 1 x SPI, 2 x UART

—

43

1

—

—

—

flexible input/output

CSEc

2 x 16

2 x 32

1, 12, 13

1 x 8

2.7 to 5.5

-40 to 105

-40 to 125

LQFP48

0.5

ISO 26262

up to ASIL B

1K @ US$1.68

grade 2

FS32K118LAT0MLFT
Data Sheet

Active

1

Arm Cortex-M0+

48

256

25

2

—

1 x I²C, 2 x SPI, 2 x UART

—

43

1

1

—

—

flexible input/output

CSEc

2 x 16

2 x 32

1, 12, 16

1 x 8

2.7 to 5.5

-40 to 125

-40 to 135

LQFP48

0.5

ISO 26262

up to ASIL B

1K @ US$1.98 - 1K @ US$2.04

grade 1

FS32K118LAT0MLHT
Data Sheet

Active

1

Arm Cortex-M0+

48

256

25

2

—

1 x I²C, 2 x SPI, 2 x UART

—

58

1

1

—

—

flexible input/output

CSEc

2 x 16

2 x 32

1, 12, 16

1 x 8

2.7 to 5.5

-40 to 125

-40 to 135

LQFP64

0.5

ISO 26262

up to ASIL B

1K @ US$2.13 - 1K @ US$2.19

grade 1

FS32K118LIT0VLFT
Data Sheet

Active

1

Arm Cortex-M0+

48

256

25

2

—

1 x I²C, 2 x SPI, 2 x UART

—

43

1

—

—

—

flexible input/output

CSEc

2 x 16

2 x 32

1, 12, 16

1 x 8

2.7 to 5.5

-40 to 105

-40 to 125

LQFP48

0.5

ISO 26262

up to ASIL B

1K @ US$1.89

grade 2

FS32K142HAT0MLFT
Data Sheet

Active

1

Arm Cortex-M4F

80

256

32

4

—

1 x I²C, 2 x SPI, 2 x UART

—

43

2

1

—

—

flexible input/output

CSEc

4 x 16

4 x 32

2, 12, 16

1 x 8

2.7 to 5.5

-40 to 125

-40 to 135

LQFP48

0.5

ISO 26262

up to ASIL B

1K @ US$2.74

grade 1

FS32K142HAT0MLHT
Data Sheet

Active

1

Arm Cortex-M4F

80

256

32

4

—

1 x I²C, 2 x SPI, 2 x UART

—

58

2

1

0

—

flexible input/output

CSEc

4 x 16

4 x 32

2, 12, 16

1 x 8

2.7 to 5.5

-40 to 125

-40 to 135

LQFP64

0.5

ISO 26262

up to ASIL B

1K @ US$2.81

grade 1

FS32K142HAT0MLLT
Data Sheet

Active

1

Arm Cortex-M4F

80

256

32

4

—

1 x I²C, 2 x SPI, 2 x UART

—

89

2

1

0

—

flexible input/output

CSEc

4 x 16

4 x 32

2, 12, 16

1 x 8

2.7 to 5.5

-40 to 125

-40 to 135

LQFP100

0.5

ISO 26262

up to ASIL B

1K @ US$3.02 - 1K @ US$3.08

grade 1
