FS2400 Safety SBC Programming Socket Board

KITFS24SKTFDMEVM

Roll over image to zoom in

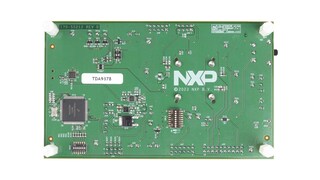

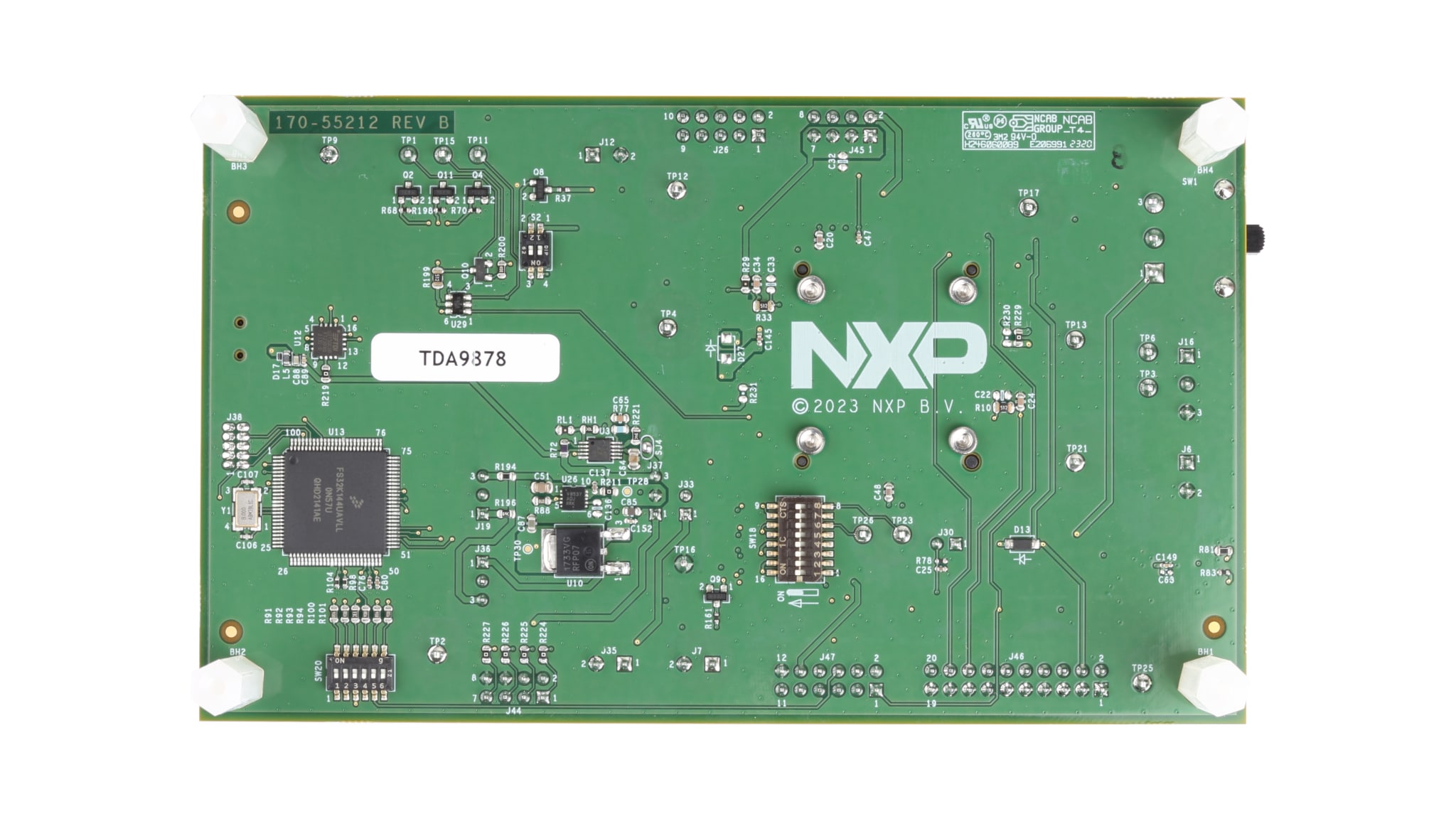

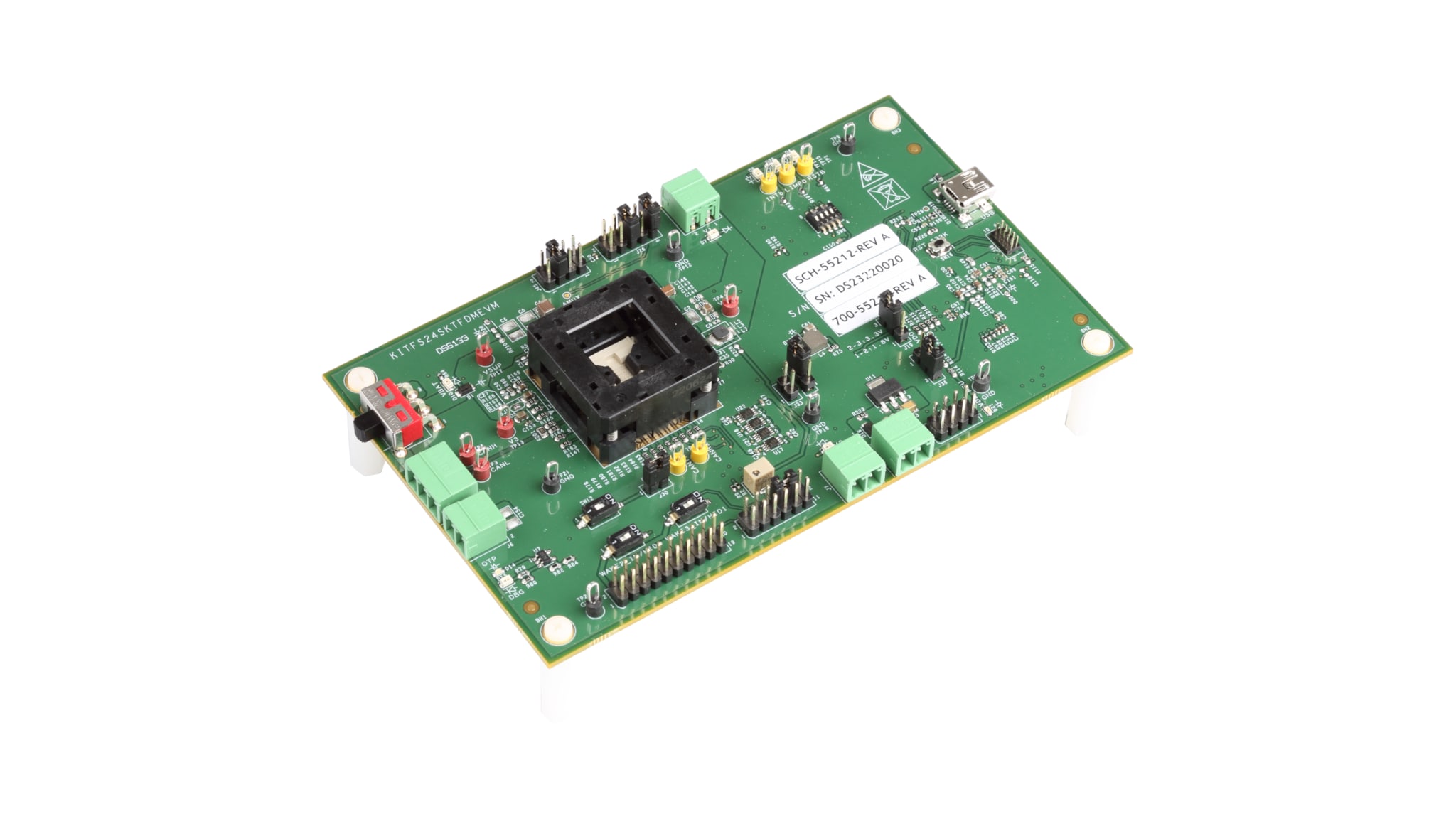

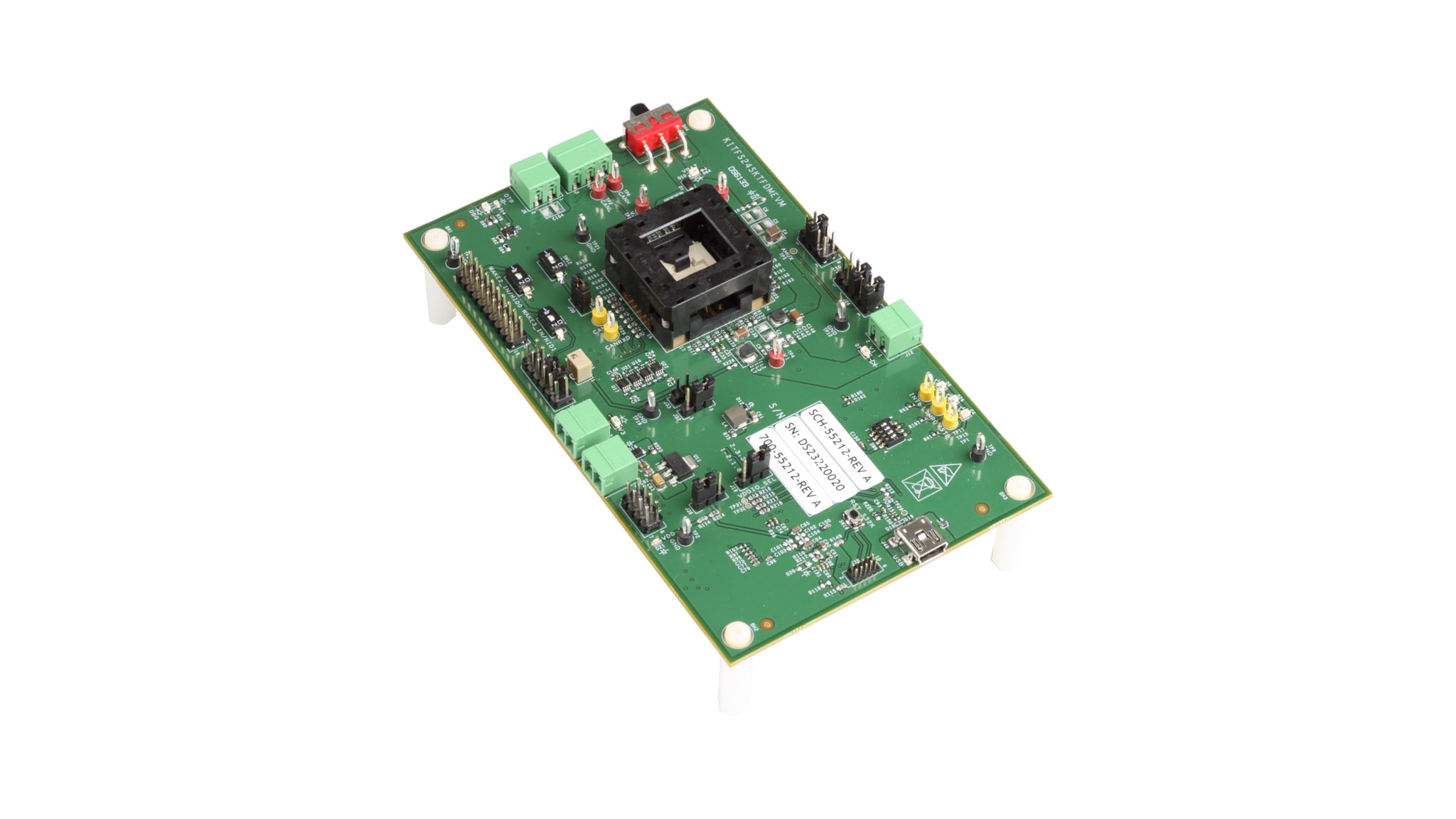

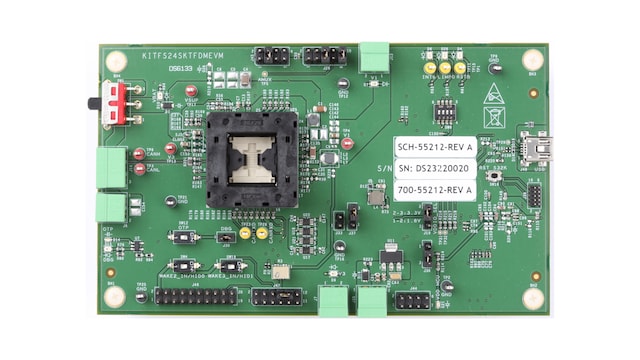

The KITFS24SKTFDMEVM provides easy customer configuration of the FS2400 device family, thanks to a QFN32 socket. The kit provides flexibility to play with all the features of the device and make measurements on the main part of the application. All regulators are accessible through connectors. Nonuser signals, like DC/DC switcher node, are mapped on test points.

The board can be used to fuse the OTP configuration of several FS2400 devices.

Supported Devices

Power Management

System Basis Chips

  • FS24: Safety Mini CAN FD SBC for Automotive Applications Fit for ASIL B

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K1: S32K1 Microcontrollers for Automotive General Purpose

Features

Connectivity

  • S32K144 MCU embedded allows USB connection for easy connection to software GUI (access to SPI bus, IOs, Safety outputs, Debug, AMUX, regulators) USB connection for register access, OTP emulation and fuse

Power Management

  • VBAT power supplied by phoenix connector or by USB
  • V1 output 1.9 V to 5 V, up to 400 mA
  • V3 output 3.3 V or 5.0 V, up to 150 mA

General Specifications

  • LIMP0 external safety pin

Support

  • Debug mode access
  • OTP fuse programming
  • Connectors allowing easy access to digital signals

Components

  • QFN32 non-soldered socket to allow functional testing and programming of multiple devices
  • LEDs that indicate signal or regulator status
  • Analog variable resistor to test external VMON

Buy Options

KITFS24SKTFDMEVM-Image

Click to expand

  • KITFS24SKTFDMEVM
    Active

  • FS2400 Safety SBC Programming Socket Board.

  • Kit contains:

    • KITFS24SKTFDMEVM board
    • Power supply connectors
    • USB mini cable
  • $307.03 USD
  • For a quantity of 1
    • Availability: Pending Stock
