FS2400 Safety SBC Evaluation Board

KITFS2400FRDMEVM

Roll over image to zoom in

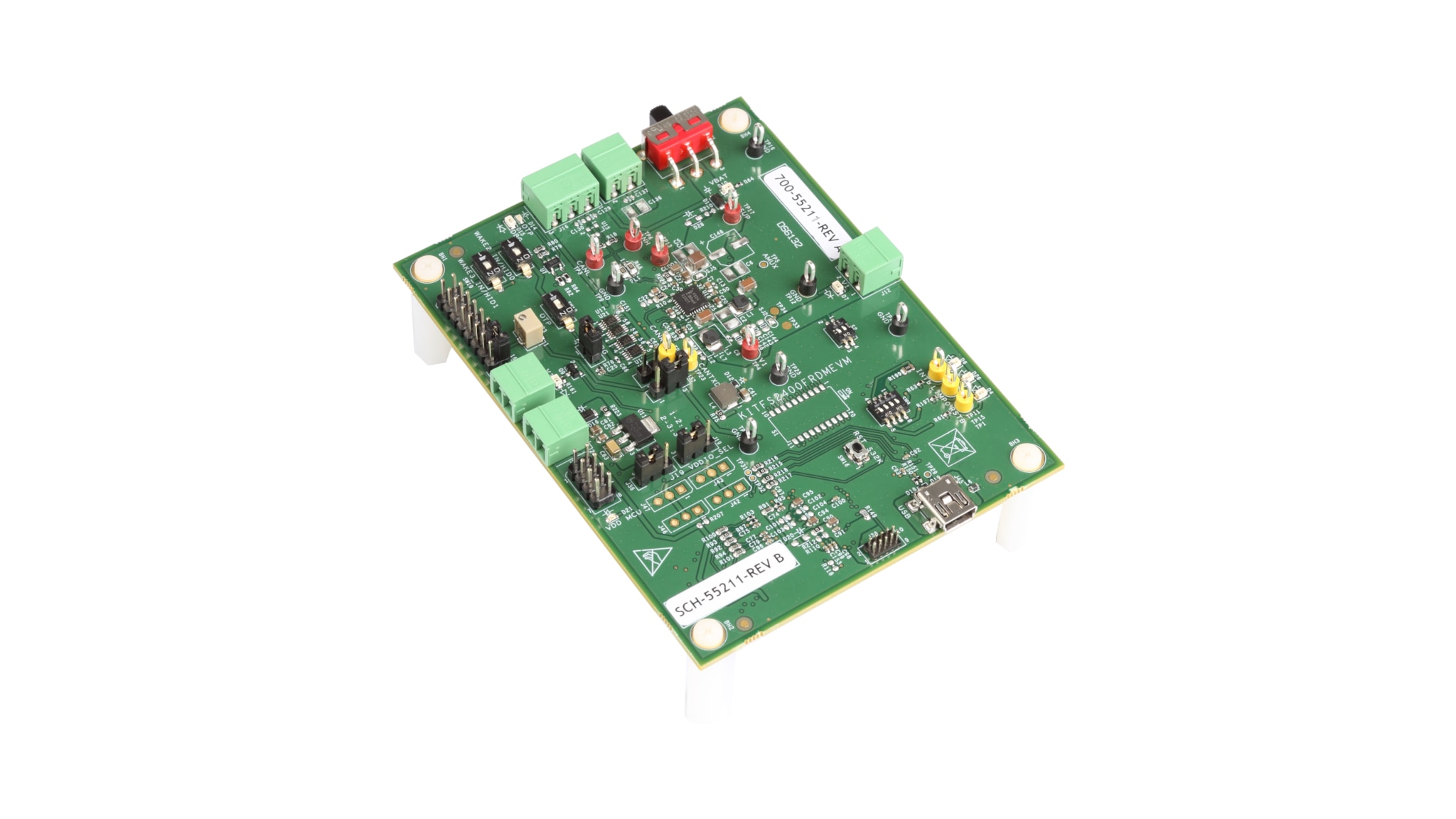

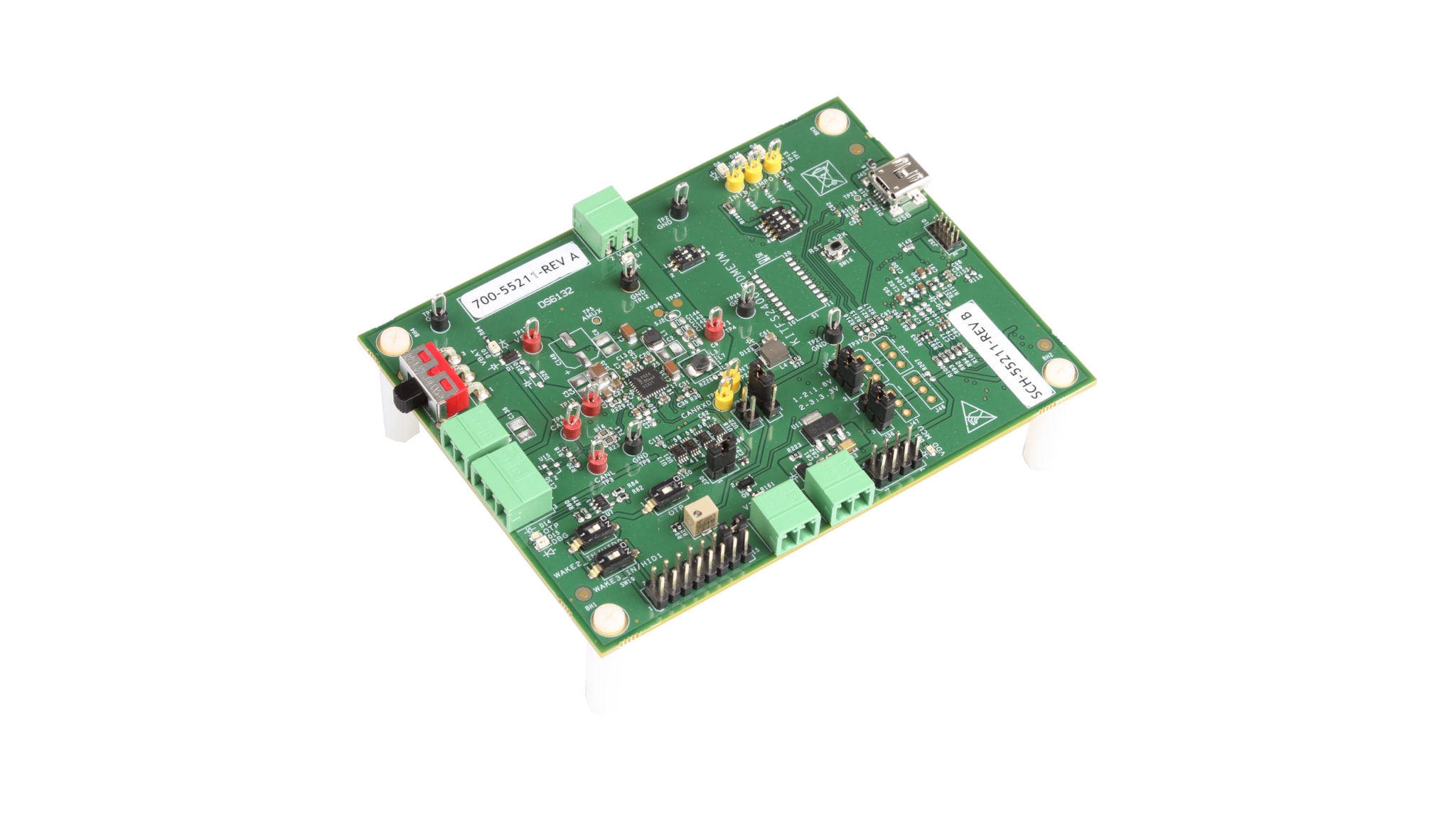

KITFS2400FRDMEVM provides easy customer development of the FS2400 device family. It's targeting 12 V automotive applications. The tool can be used in a standalone mode and controlled with an USB interface. SPI command is easily controlled by NXP GUI software.

The board is populated with a superset part. The FS240x soldered on the board can be OTP fused two times or it is possible to test as many configurations as needed in OTP Emulation mode.

Supported Devices

Power Management

System Basis Chips

  • FS24: Safety Mini CAN FD SBC for Automotive Applications Fit for ASIL B

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K1: S32K1 Microcontrollers for Automotive General Purpose

Features

Connectivity

  • S32K144 MCU embedded allows USB connection for easy connection to software GUI (access to SPI bus, IOs, Safety outputs, Debug, AMUX, regulators) USB connection for register access, OTP emulation and fuse

Power Management

  • VBAT power supplied by phoenix connector or by USB
  • V1 output 1.9 V to 5 V, up to 400 mA
  • V3 output 3.3 V or 5.0 V, up to 150 mA

General Specifications

  • LIMP0 external safety pin

Support

  • Debug mode access
  • OTP fuse programming
  • Connectors allowing easy access to digital signals

Components

  • LEDs that indicate signal or regulator status
  • Analog variable resistor to test external VMON

Buy Options

KITFS2400FRDMEVM-Image

Click to expand

  • KITFS2400FRDMEVM
    Active

  • FS2400 Safety SBC Evaluation Board.

  • Kit contains:

    • KITFS2400FRDMEVM Board
    • Power Supply Connectors
    • USB Mini Cable
  • $160.03 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 12
    • Shipping: Normally ships 1-2 business days
ADD TO CART
