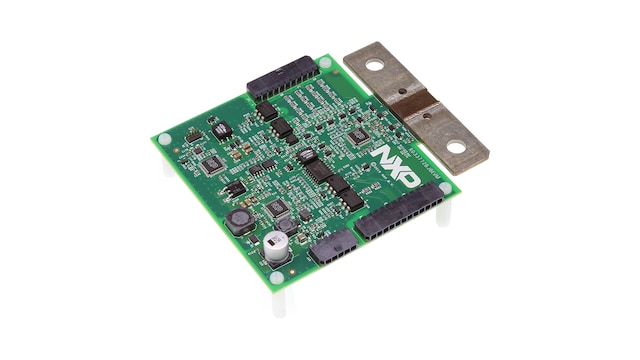

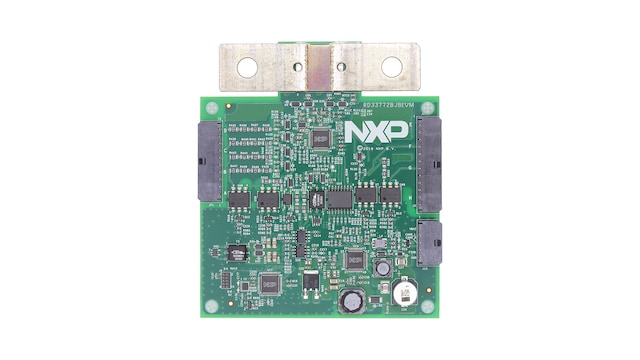

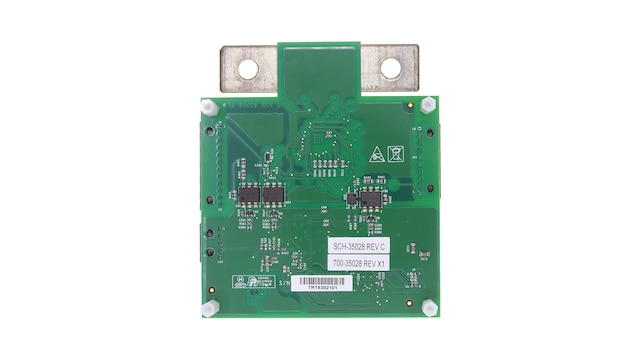

High Voltage Battery Junction Box Reference Design

RD33772BJBEVM Active

Roll over image to zoom in

The high voltage battery junction box reference design aims to accelerate customer project development. It is a standalone function board with high integration, smaller size, flexibility and compatibility with to e-car and e-bus.

Block Diagram

RD33772BJBEVM BD

RD33772BJBEVM Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K1: S32K1 Microcontrollers for Automotive General Purpose

Power Management

System Basis Chips

  • FS4500: Grade 1 and Grade 0 Safety Power System Basis Chip with CAN Flexible Data Transceiver

Battery Cell Controllers

  • MC33772B: 6-Channel Li-Ion Battery Cell Controller IC

Features

General

  • Power supply input from 5 to 12 V
  • Up to six voltage sensing channels for high-voltage measurement
  • One current sensing channel to measure the charge current and discharge current
  • One temperature sensing channel to measure shunt resistor temperature for calibration
  • Integrated insulation resistance measurement
  • One CAN communication channel to BMU/VCU

Buy Options

RD33772BJBEVM-Image

Click to expand

  • RD33772BJBEVM
    Active

  • High Voltage Battery Junction Box Reference Design.

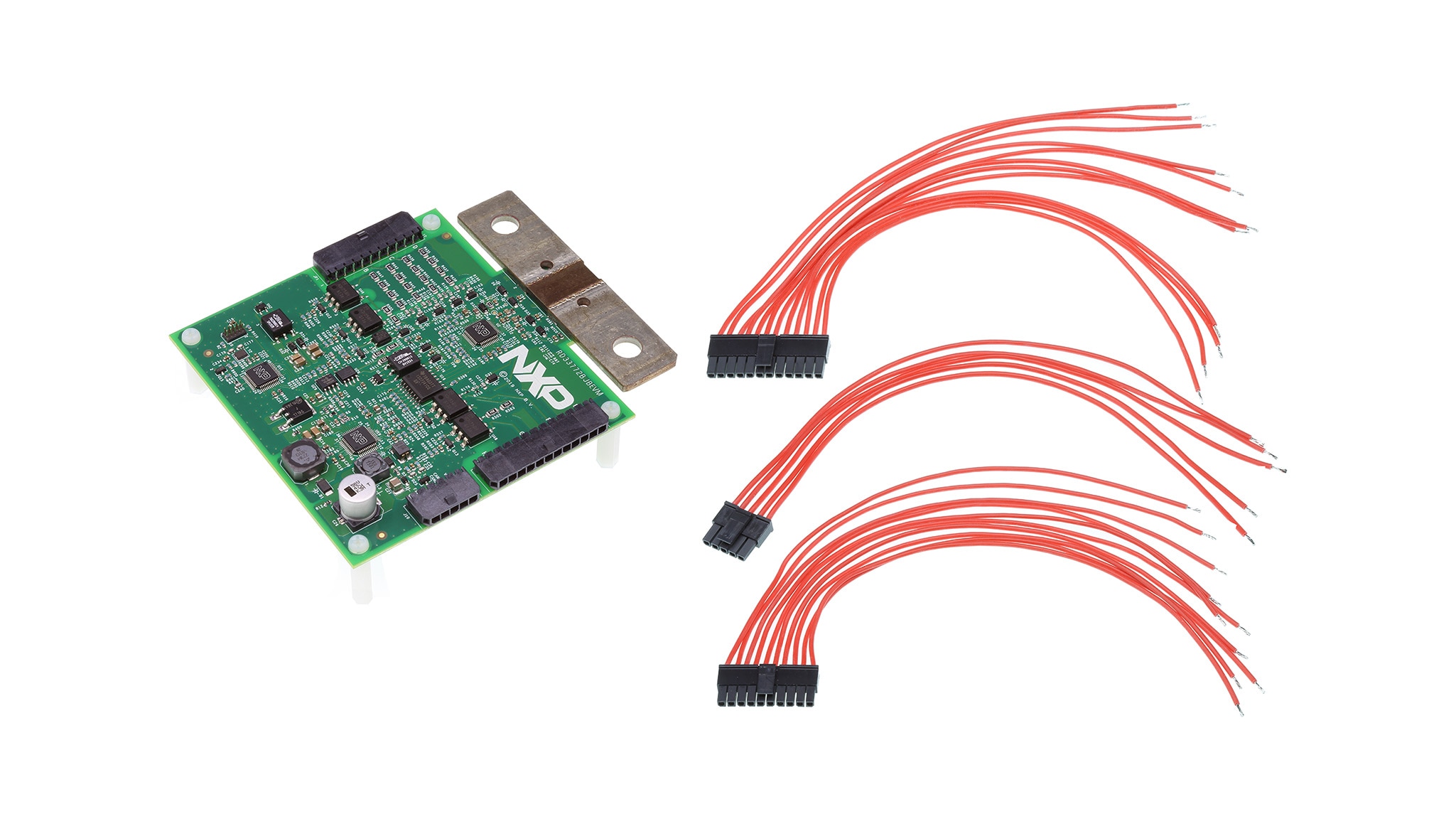

  • Kit Contains:

    • Evaluation board in an antistatic bag
    • Cables
    • Quick start
  • $1219.23 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
