i.MX RT600 Evaluation Kit

MIMXRT685-EVK Active

Roll over image to zoom in

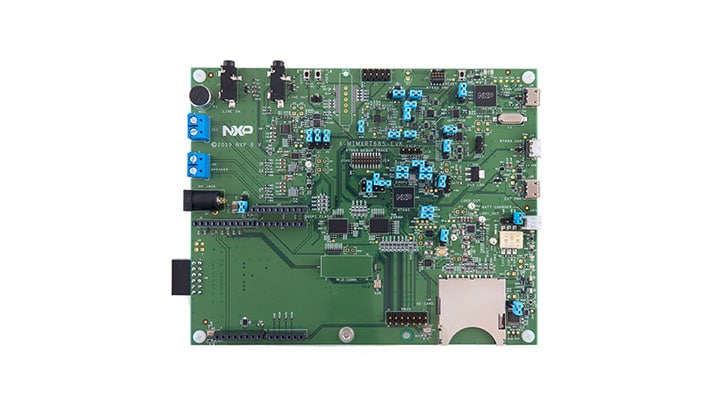

The i.MX RT600 EVK (MIMXRT685-EVK) features NXP’s advanced implementation of the Arm® Cortex®-M33 core, combined with the highly optimized Cadence® Tensilica® HiFi 4 DSP processor core. MIMXRT685-EVK supports development for the MIMXRT685 and MIMXRT633 products and its features make it ideal for ML/AI, voice and audio applications. The i.MX RT600 EVK can help jump start your next design with the included schematics and layout files.

Product Details

Supported Devices

Power Management

PMICs

Load Switches

  • NX5P3090UK: USB PD and Type-C Current-Limited Power Switch

Processors and Microcontrollers

i.MX RT Crossover MCUs

  • i.MX-RT600: i.MX RT600 Crossover MCU with Arm® Cortex®-M33 and DSP Cores

Products

No Longer Manufactured

  • FXOS8700CQ: Digital Motion Sensor - 3D Accelerometer (±2g/±4g/±8g) + 3D Magnetometer

Features

Processor

  • MIMXRT685SFVKB
    • Cortex-M33 running up to 300 MHz
    • Cadence® Tensilica® HiFi 4 running up to 600 MHz
    • VFBGA 176 package

Board Memory

  • Macronix Octal Flash
  • AP Memory PSRAM

Debug Capabilities

  • 10-pin and 20-pin JTAG/SWD connectors supporting external debug/trace probes
  • On-board debug probe, with VCOM and CMSIS-DAP or J-link firmware options

Expansion Connectors

  • Arduino expansion
  • PMOD expansion
  • Expansion connector for 8-channel microphone board
  • I3C header
  • Flexcomm header

User Interface

  • Reset and User buttons for easy testing of software functionality
  • User LEDs

Connectivity

  • High/full-speed USB port with micro-A/B connector for the host or device functionality
  • SD Card slot

Sensors

  • NXP FXOS8700CQ accelerometer

    Note: FXOS8700CQ accelerometer is in “End of Life” status

Audio and Voice

  • Dual Knowles SPH0641lM4H digital microphone
  • Stereo audio codec with Audio Line In/Out
  • Dual class D amplifiers with speaker connectors

Buy Options

MIMXRT685-EVK-Image

Click to expand

  • MIMXRT685-EVK
    Active

  • i.MX RT600 Evaluation Kit.

  • Kit Contains

    • EVK hardware
    • MicroUSB cable
    • Quick Start Guide
  • $148.35 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 9
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
IMXRT600-AUD-EVK-Image

Click to expand

  • IMXRT600-AUD-EVK
    Active

  • i.MX RT600 Evaluation Kit.

  • Kit Contains

    • EVK hardware
    • MicroUSB cable
    • Quick Start Guide
  • $171.35 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 21
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
