PCA9451A Power Management IC for i.MX 93x/91x Application Processor

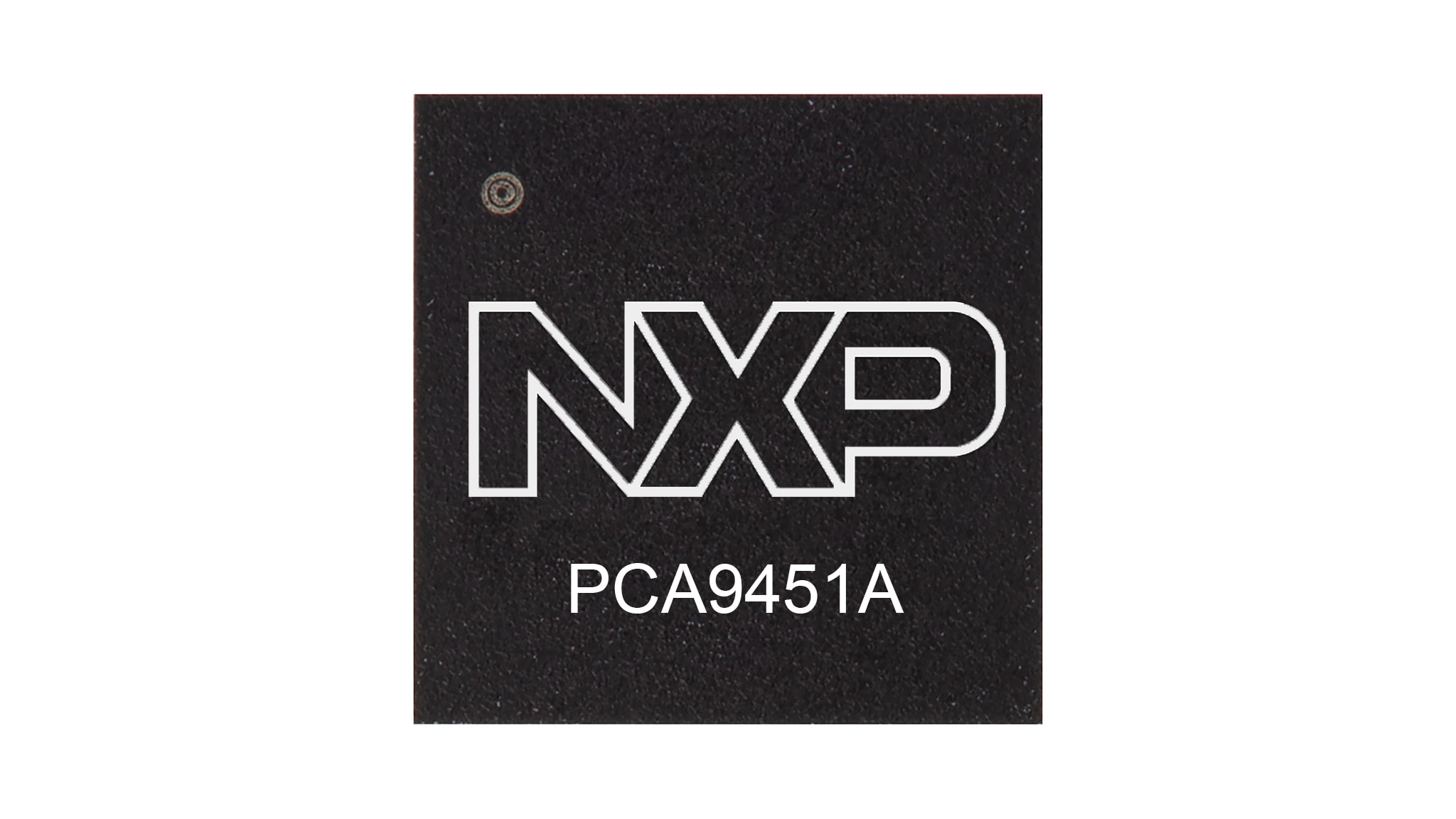

The PCA9451A is a single chip power management IC (PMIC) designed to support i.MX 93x family processor in both 1 cell Li-Ion and Li-polymer battery portable application and 5 V adapter non-portable applications. The device provides six high efficiency step-down regulators, three LDOs, one 400 mA load switch, 2-channel level translator and 32.768 kHz crystal oscillator driver.
Three buck regulators support dynamic voltage scaling (DVS)1 along with programmable ramping up and down time. The buck regulators support remote sense to compensate IR drop to load from buck regulator, allowing better performance to meet the demand for accuracy in critical supply rails. This device is characterized across -40 °C to 105 °C ambient temperature range, making it a good option for the industrial, extended industrial and consumer markets.
Product Details
Block Diagram
Features
Six High-Efficiency Step Down Regulators
- One 4 A dual phase buck regulator with DVS feature and remote sense
- One 2 A buck regulator with DVS feature and remote sense
- One 3 A buck regulator
- One 2 A buck regulator
- One 1.5 A buck regulator
Three Linear Regulators
- One low IQ 10 mA LDO
- One 150 mA LDO
- One 200 mA LDO
Key Features
- 400 mA load switch with a built-in active discharge resistor
- 32.768 kHz crystal oscillator driver and buffer output
Product Longevity Program
- This product is included in the NXP Product Longevity program, with assured supply for a minimum of 15 years after launch
Related products
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documentation
Quick reference to our documentation types.
1-5 of 6 documents
-
Application Note
Power Supply IC i.MX 93 for PCA9451A Powering Guide
-
Application Note
AN13698, PCA9451A Application Note
-
Fact Sheet
PMIC PCA9451 for i.MX 93 Fact Sheet
Design Resources
Hardware
Quick reference to our
board types.
4 hardware offerings
-
Evaluation and Development Boardsi.MX 93 Quick Start Evaluation Kit
-
Evaluation and Development Boardsi.MX 93 Evaluation Kit
-

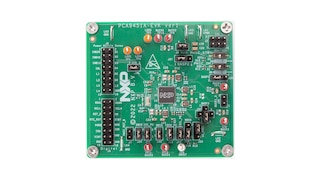

Evaluation and Development BoardsPCA9451A Evaluation Board
-
