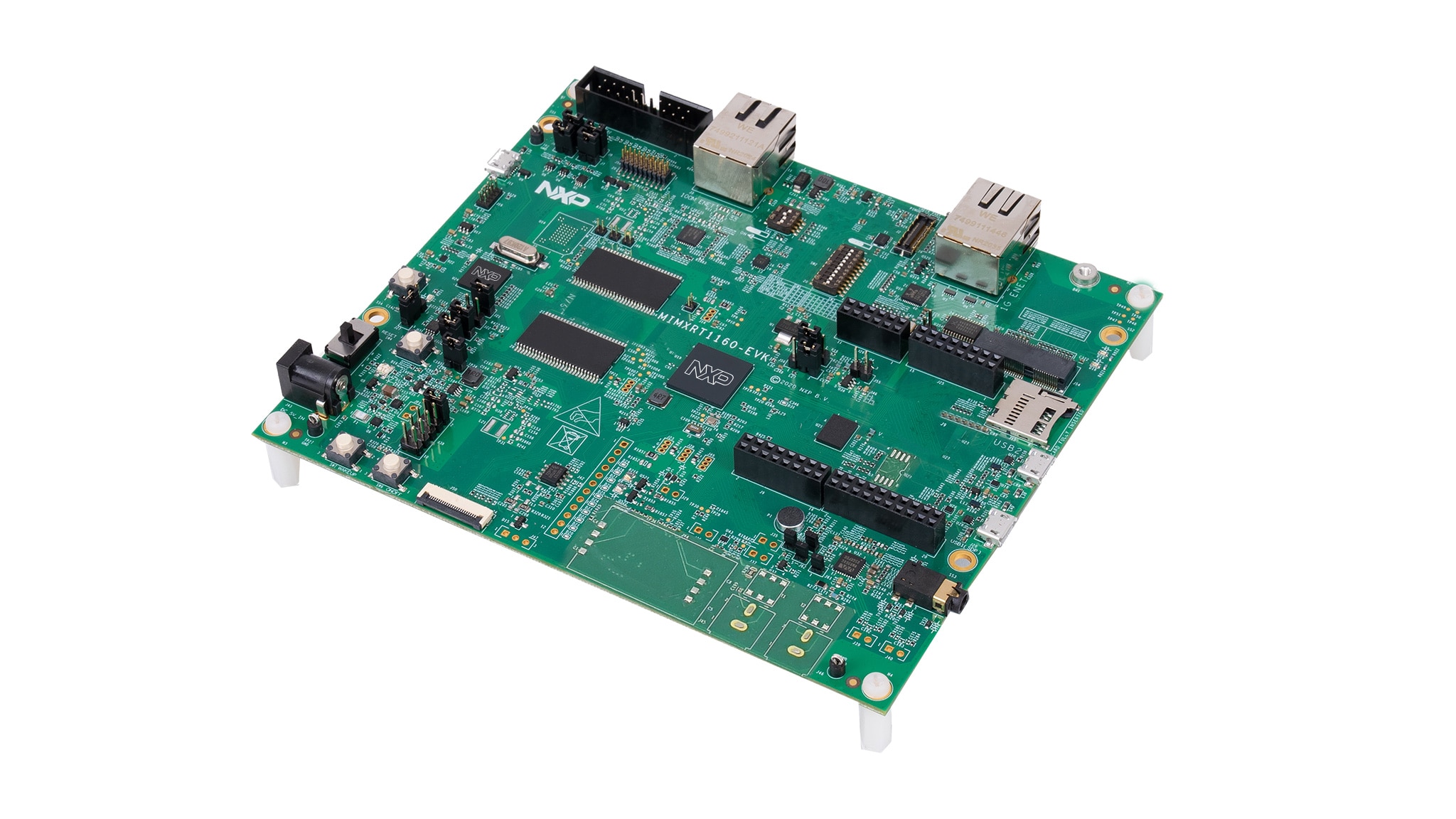

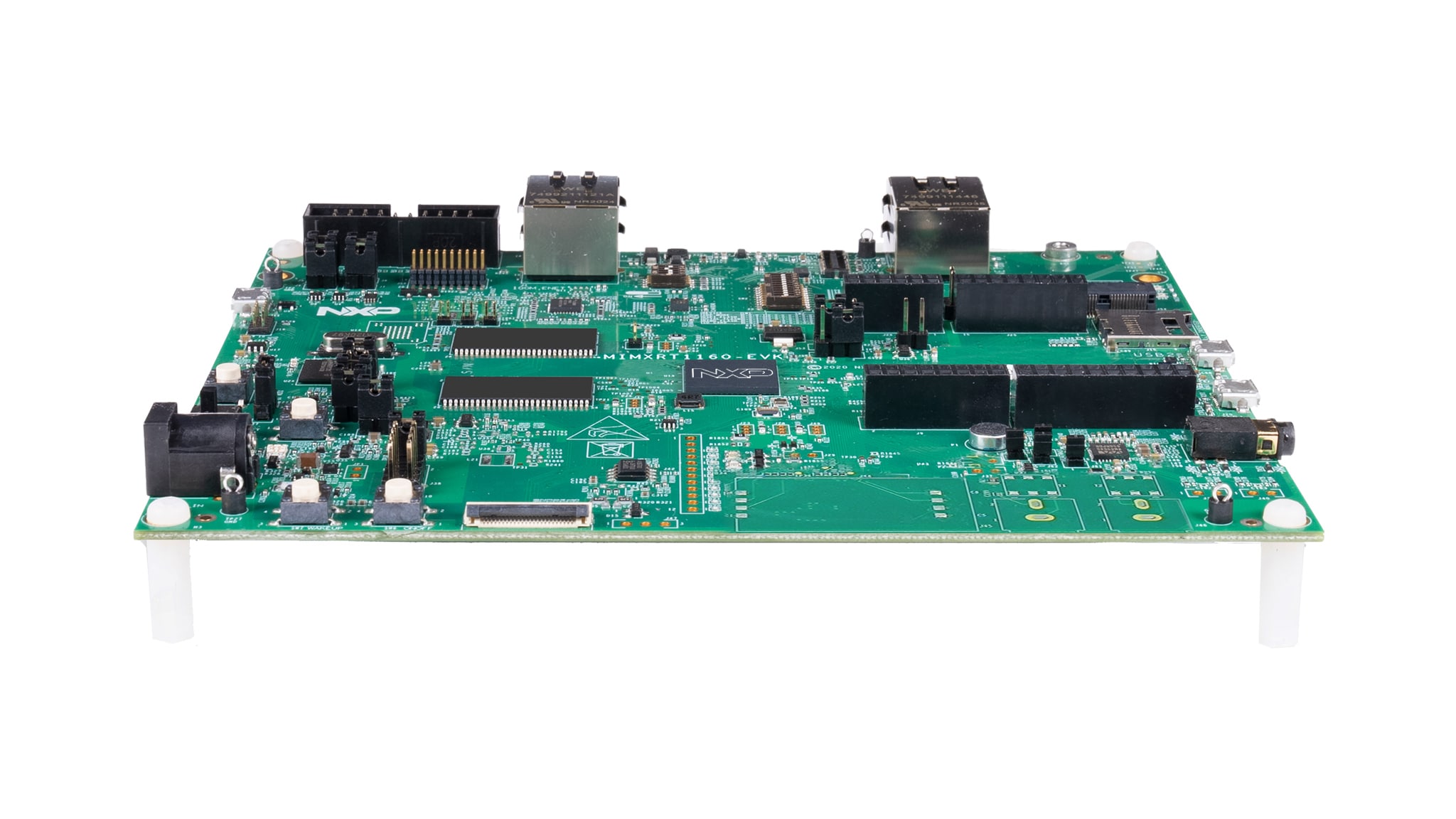

i.MX RT1160 Evaluation Kit

MIMXRT1160-EVK Active

Roll over image to zoom in

i.MX RT evaluation boards provide a powerful, extendable platform or evaluation and prototyping using the MCUXpresso suite of software and tools. An Arduino UNO site is provided for expansion using NXP or 3rd party shield boards. The boards feature a high speed USB debug probe based with easy firmware update options to support CMSIS-DSP or a special version of J-link LITE from SEGGER.

Product Details

Supported Devices

Processors and Microcontrollers

i.MX RT Crossover MCUs

  • i.MX-RT1160: i.MX RT1160 Crossover MCU Dual-Core Arm® Cortex®-M7 and Cortex-M4

Features

Processor

  • MIMXRT1166DVM6A
  • 600 MHz Arm® Cortex®-M7 core
  • 240 MHz Arm® Cortex®-M4 core

Board Memory

  • 512 Mbit SDRAM memory
  • 512 Mbit Octal Flash
  • 128 Mbit QSPI Flash
  • TF socket for SD card

Connectivity

  • 2x Micro-USB OTG connectors
  • Ethernet (10/100/1000M) connector
  • Ethernet (10/100M) connector
  • Optional NXP WiFi and Wifi + Bluetooth add-on boards (SDIO or M.2 based)
  • CAN Transcievers

Audio

  • Stereo Audio codec
  • 4-Pole Audio Headphone Jack
  • External Speaker connection
  • Microphone (Analog and Digital)

Debug Capabilities

  • Arm Cortex and 0.1" SWD/JTAG debug connectors
  • On-board HS USB debugger with VCOM
  • Options for OpenSDA, LPC-Link2 or SEGGER J-Link debug firmware
  • Optional SWO support (LPC-Link2 and J-Link firmware)
  • Optional drag-drop programming (OpenSDA firmware)

Expansion Connectors

  • Arduino UNO R3 interface
  • FRDM Motor control interface

Sensors

  • MIPI Camera Sensor connector

User Interface

  • MIPI LCD connector
