Evaluation Kit for the i.MX 8M Nano UltraLite Applications Processor

8MNANOD3L-EVK Active

Roll over image to zoom in

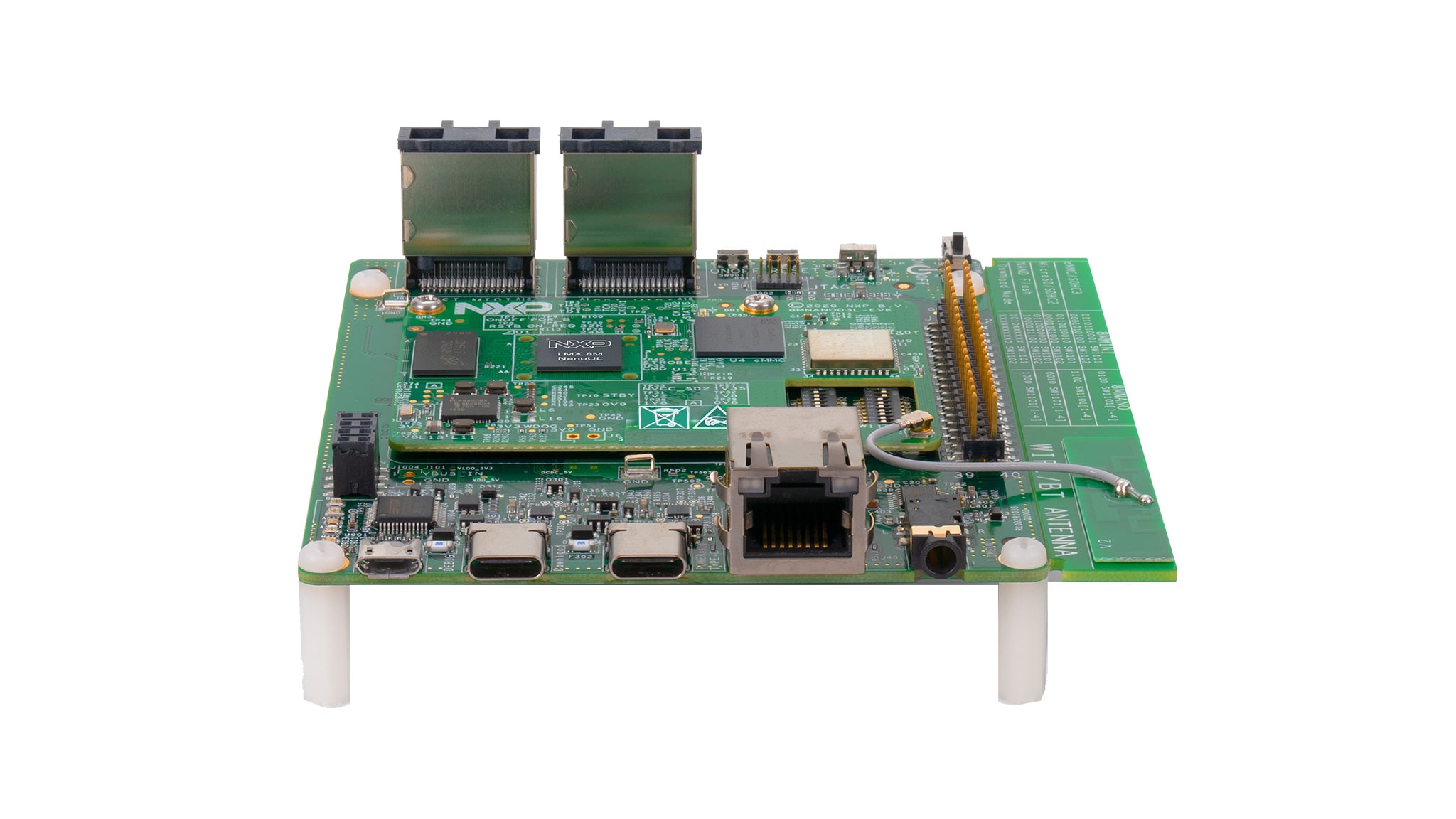

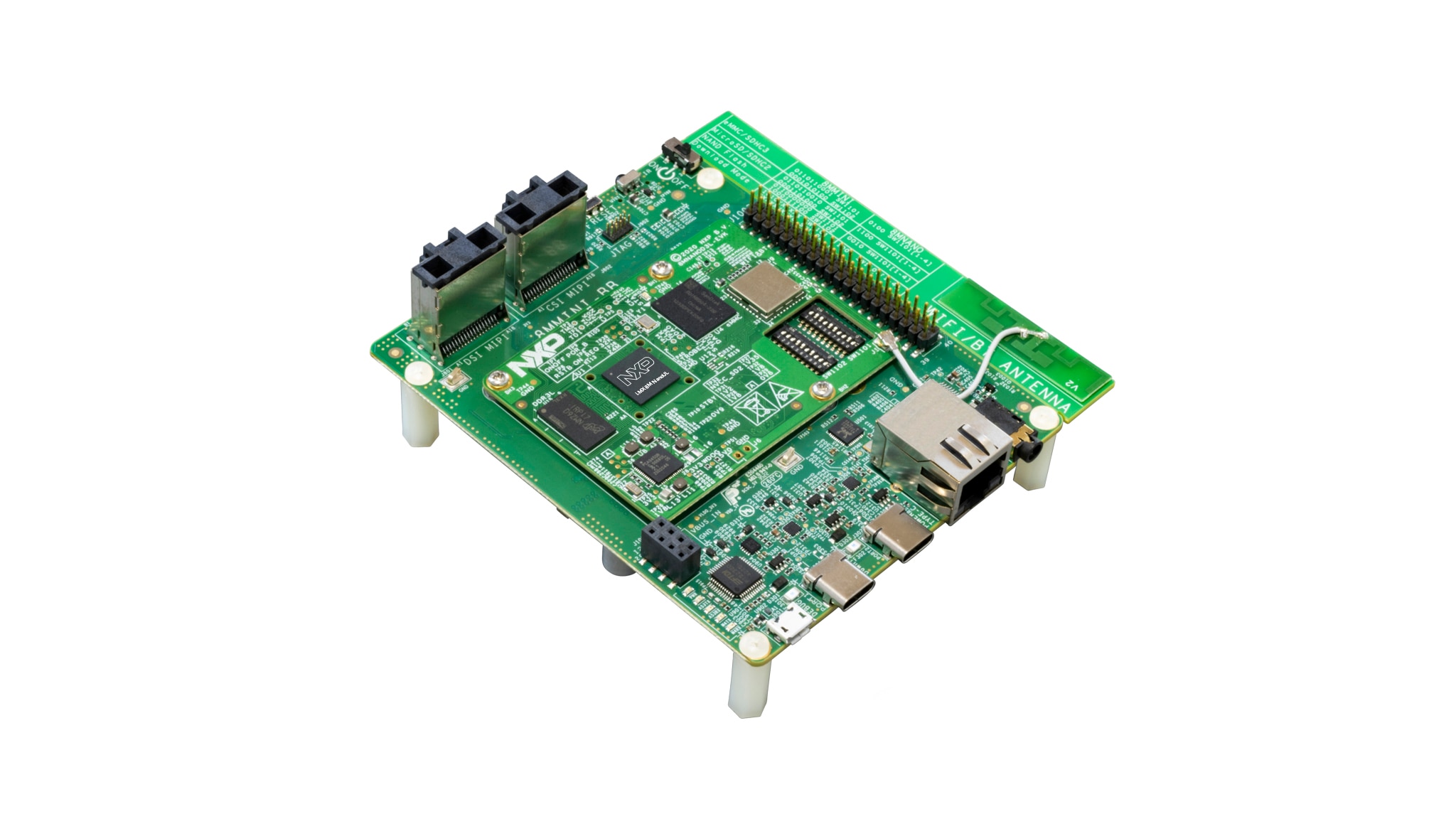

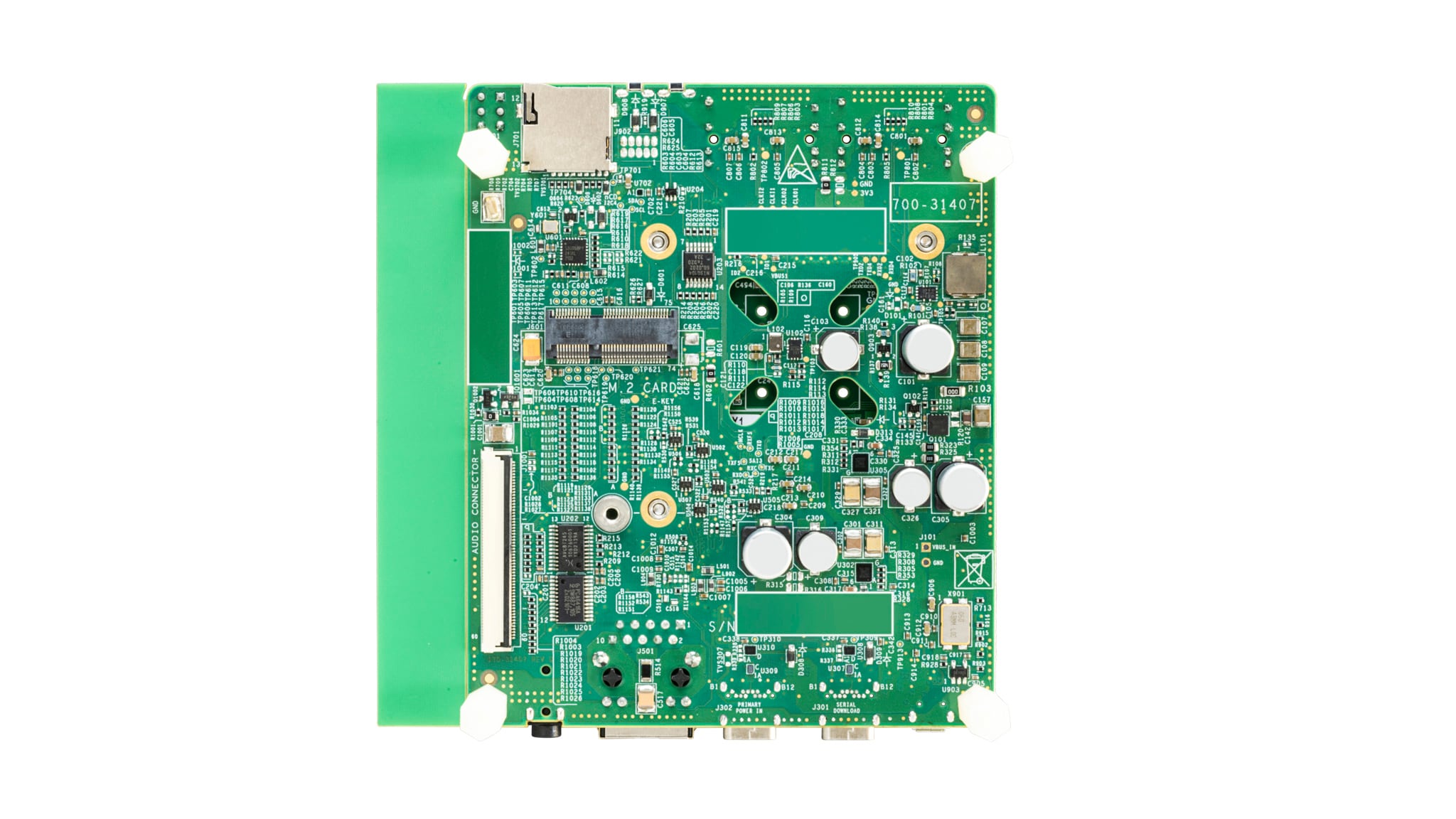

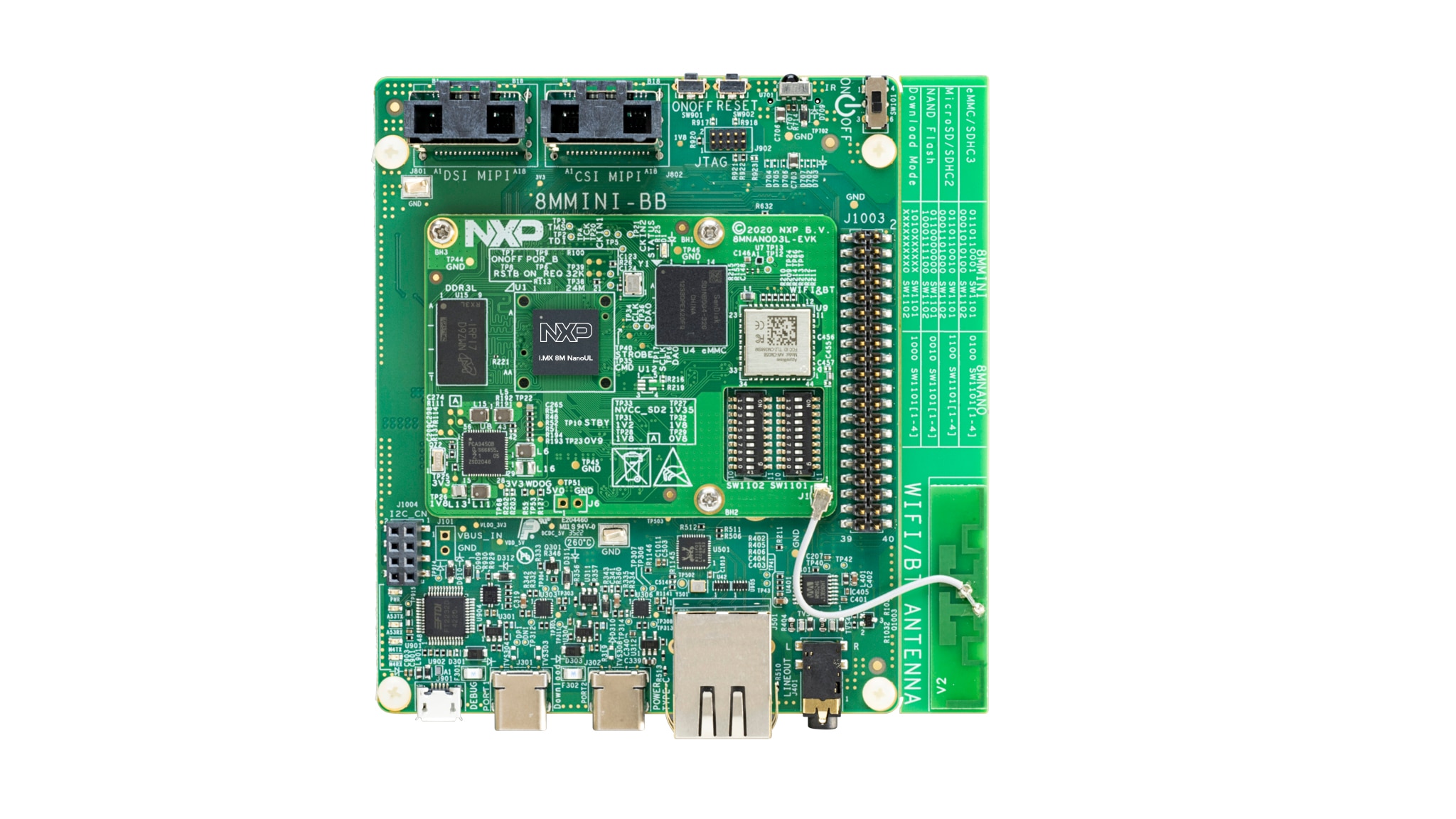

The i.MX 8M Nano UltraLite EVK provides a platform for rapid evaluation of the i.MX 8M Nano UltraLite applications processors utilizing 1, 2, or 4x Arm® Cortex®-A53 cores and 1x Cortex-M7 core. It offers affordable high performance, flexible options for memory and high-speed interfaces, as well as optimized audio capabilities. The i.MX 8M Nano UltraLite EVK comes with a base board and a CPU board (compute module). They are delivered pre-connected as a single EVK system.

Product Details

Supported Devices

Processors and Microcontrollers

i.MX 8 Applications Processors

  • i.MX8MNANO: i.MX 8M Nano Family - Arm® Cortex®-A53, Cortex-M7

Power Management

PMICs

  • PCA9450: Power Management IC (PMIC) for i.MX 8M Mini/Nano/Plus

Wireless Connectivity

Wi-Fi® + Bluetooth® + 802.15.4

  • 88W8987: 2.4/5 GHz Dual-Band 1x1 Wi-Fi® 5 (802.11ac) + Bluetooth® 5.2 Solution

Features

Processor

  • i.MX 8M Nano UltraLite applications processor
  • 4x Arm Cortex-A53 @ 1.4 GHz
  • 512 KB L2 cache
  • 1x Arm Cortex-M7 @ 750 MHz

Memory

  • DDR3L x16 w/1 GB
  • eMMC 5.0/5.1 w/32 GB
  • SD/MMC connector
  • QSPI w/32 MB

Camera Connectors

  • MIPI-CSI Camera mini-SAS connector

Wireless

  • NXP 88W8987 Wi-Fi/Bluetooth® module:
    • Wi-Fi® 5 (802.11ac) 1x1 DB (2.5/5 GHz)
    • Bluetooth 5.0
  • Onboard chip antenna
  • External antenna connector

Audio

  • Audio DAC 24-bit 192 kHz stereo
  • HP Jack 3.5 mm audio connector
  • Board expansion connector for audio interfaces

Connectivity

  • 10/100/1000 Ethernet
  • USB 3.0 Type C connector

Debug

  • JTAG connector
  • UART via USB

Tools and OS Support

  • Linux
  • FreeRTOS

Buy Options

8MNANOD3L-EVK-Image

Click to expand

  • 8MNANOD3L-EVK
    Active

  • Evaluation Kit for the i.MX 8M Nano UltraLite Applications Processor.

  • i.MX 8M Nano UltraLite EVK Board

    Power Supply:

    • USB Type-C Cable
    • USB Micro-B Cable
    • USB Type-C to A Adapter
    • Linux BSP flashed in eMMC
    • Quick Start Guide

  • $458.85 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
MINISASTOCSI-Image

Click to expand

  • $74.75 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 12
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
