i.MX-RT1170: i.MX RT1170: 1 GHz Crossover MCU with Arm® Cortex® Cores

Features

Processor

MIMXRT1176DVMAA
1 GHz Arm Cortex-M7 core
400 MHz Arm Cortex-M4 core

Board Memory

512 Mbit SDRAM memory
512 Mbit Octal Flash
128 Mbit QSPI Flash
2 Gbit Raw NAND Flash
64 Mbit LPSPI Flash
TF socket for SD card

Connectivity

2x Micro-USB OTG connectors
Ethernet (10/100/1000M) connector
Ethernet (10/100M) connector

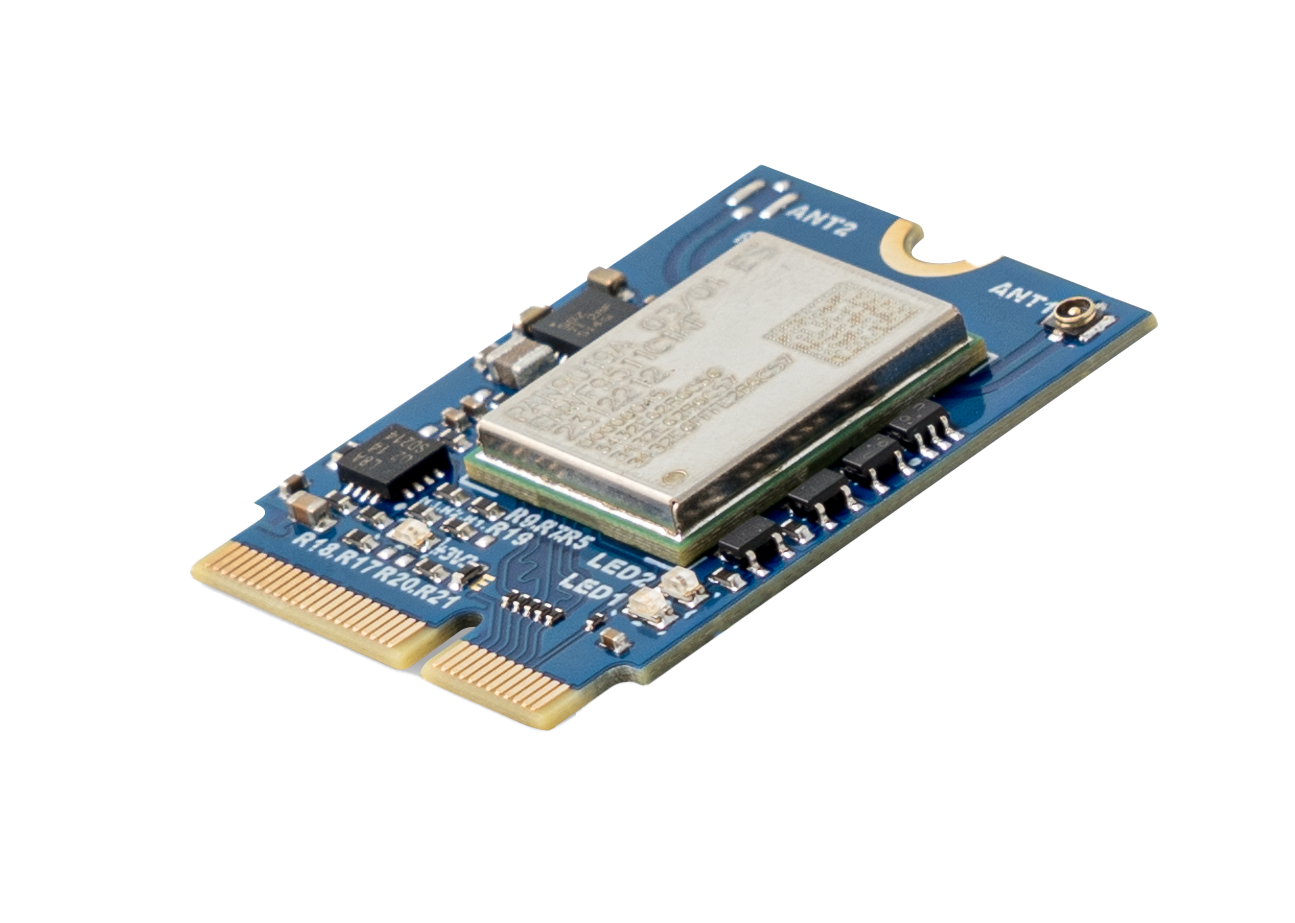

M.2 connector
CAN transceivers
ARDUINO^® interface - Expansion connectors need to be added
FRDM motor control interface
SIM card slot

Audio

Audio codec
4-Pole audio headphone jack
External speaker connection
Microphone (analog and digital)
SPDIF Connector

Debug Capabilities

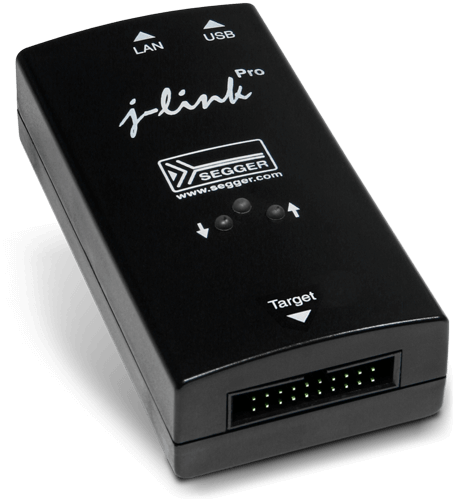

JTAG connector
On-board DAP-Link debugger

Sensors

6-Axis ecompass (3-Axis Mag, 3-Axis Accel) sensor FXOS8700CQ

Expansion Connectors

MIPI^® LCD connector
MIPI camera sensor connector

Additional

MCUXpresso Software and Tools, including MCUXpresso SDK with Amazon FreeRTOS^™
IAR Embedded Workbench^® IDE
Keil^® IDE
All-in-one board design
6-Layer through hole PCB

Buy Options

Click to expand

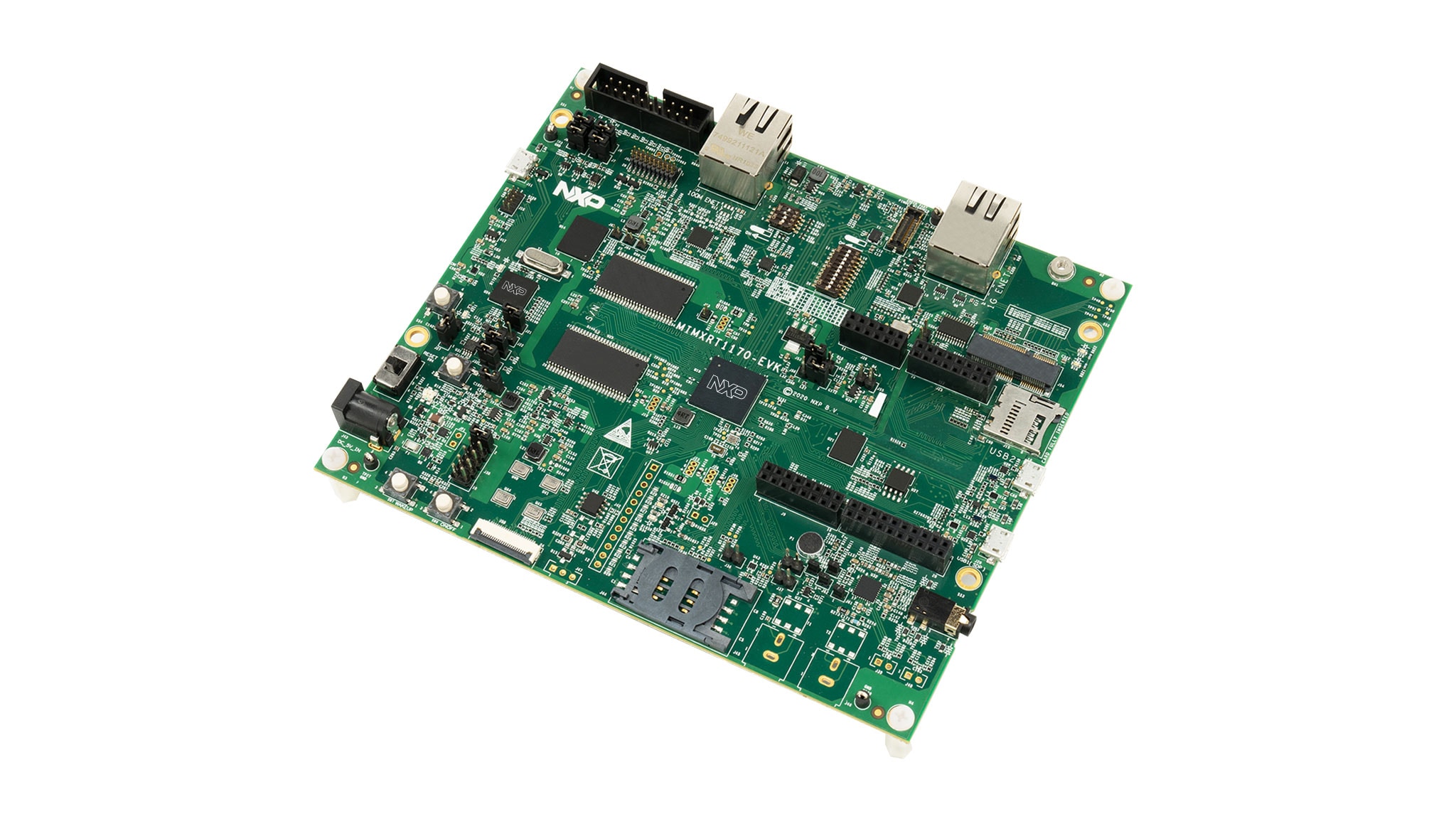

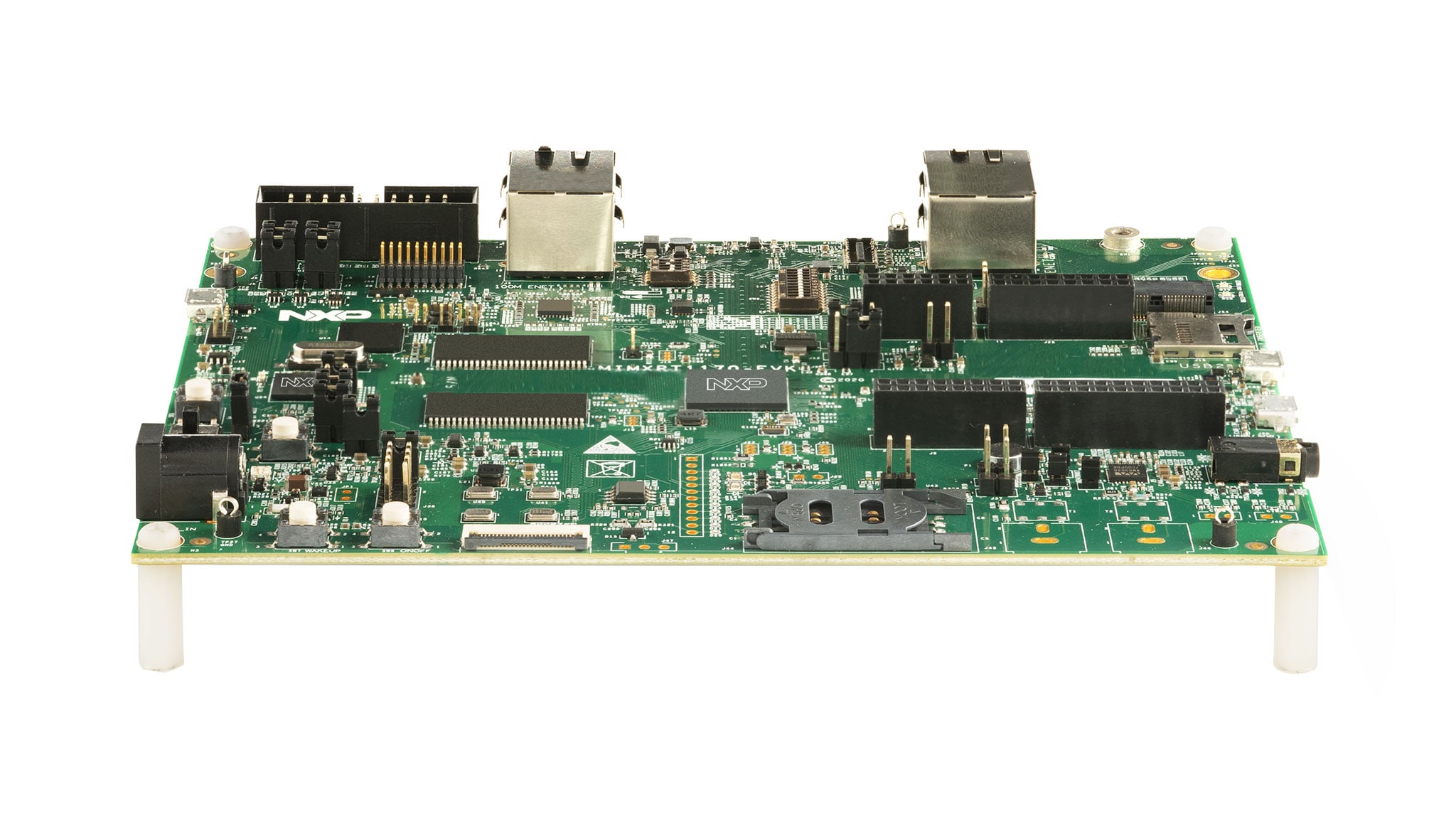

MIMXRT1170-EVKB
i.MX RT1170 Evaluation Kit.

$182.85 USD
For a quantity of 1
- Availability: In Stock
- Inventory: 5
- Shipping: Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

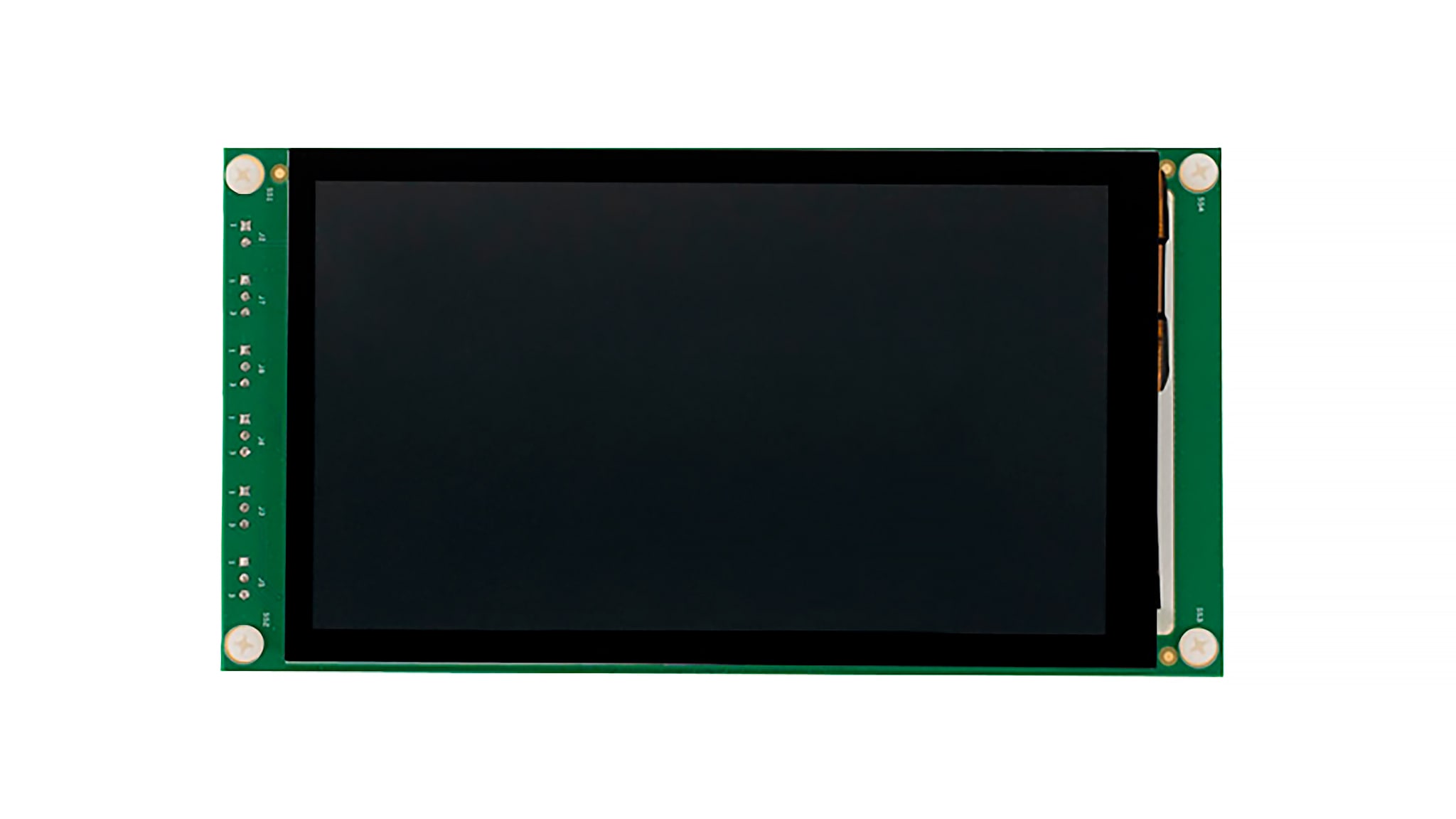

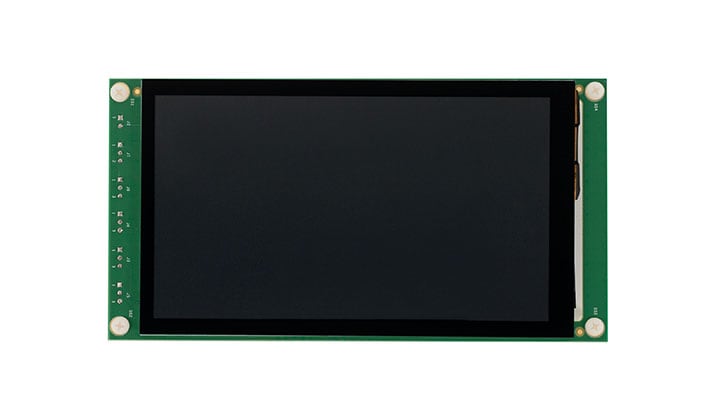

RK055HDMIPI4MA0
5.5" LCD Panel.

$90.85 USD
For a quantity of 1
- Availability: In Stock
- Inventory: 7
- Shipping: Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Documentation

Quick reference to our documentation types.

1-5 of 13 documents

^{User Guide}
MIMXRT1170 EVK Board Hardware User’s GuideGetting Started

PDFRev 2May 14, 2021533.2 KBMIMXRT1170EVKHUGEnglish, 中文
Sign in required
^{User Guide}
Getting Started with NXP Wi-Fi^® modules using i.MX RT platformGetting Started

HTMLRev 1Jul 22, 2020null kbGS-WIFI-MODULES-IMXRT-PLATFORM-LINKEnglish
^{User Guide}
Getting Started with the i.MX RT1170 Evaluation KitGetting Started

HTMLNov 30, 2020GS-MIMXRT1170-EVKEnglish
^{User Guide}
Hardware Development Guide for the MIMXRT1160/1170 ProcessorGetting Started

PDFRev 5Jul 3, 2023372.1 KBMIMXRT1170HDUGEnglish, 中文
Sign in required
^{Data Sheet}
i.MX RT1170 Crossover Processors Data Sheet for Consumer Products

PDFRev 5Mar 4, 20243.1 MBIMXRT1170CECEnglish
^{Application Note}
Modifying Debug Firmware on i.MX RT10xx Boards Featuring an LPC4322- based Debug Probeupdated

HTML | PDFRev 1.0Nov 6, 2024855.3 KBAN13206English, 中文
^{Application Note}
Wi-Fi/Bluetooth/802.15.4 M.2 Key E Pinout Definition

PDFRev 4May 30, 2023303.4 KBAN13049English
^{User Guide}
MIMXRT1170 EVKB Board Hardware User Guide

PDFRev 4Jun 11, 20241.4 MBMIMXRT1170EVKBHUGEnglish
Sign in required
^{Application Note Software}
MCU-Based Multiple Person Detector

EXTERNALRev 0Jun 20, 202421.6 MBMCUBMPD-ANSWEnglish
^{Application Note Software}
ML State Monitor

EXTERNALRev 0Jun 20, 2024123.2 MBMLSTATEM-ANSWEnglish
^Errata
MIMXRT1170_RT1160-EVK Errata

PDFRev 1.1Feb 28, 2022528.7 KBMIMXRT1170_RT1160-EVK-ERRATAEnglish
^{Quick Reference Guide}
i.MX RT1170 EVKB Quick Start Guide

PDFRev 0Dec 26, 20223.8 MBMIMXRT1170-EVKB-QSGEnglish
^{Quick Reference Guide}
i.MX RT1170 EVK Quick Start Guide

PDFRev 0Apr 23, 20213.3 MBMIMXRT1170-EVK-QSGEnglish

Show All
