Layerscape LS1028A Reference Design Board

LS1028ARDB

Roll over image to zoom in

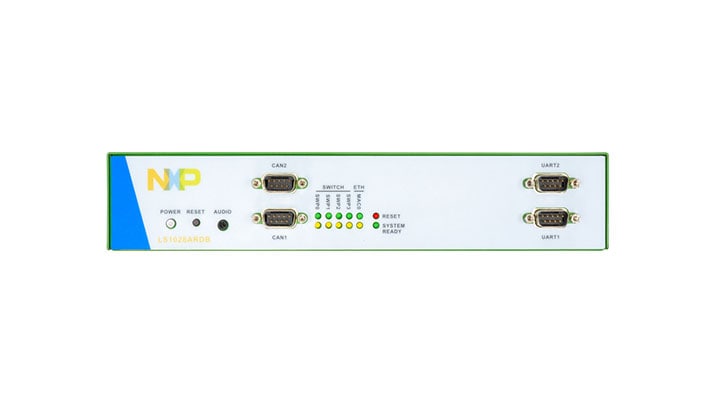

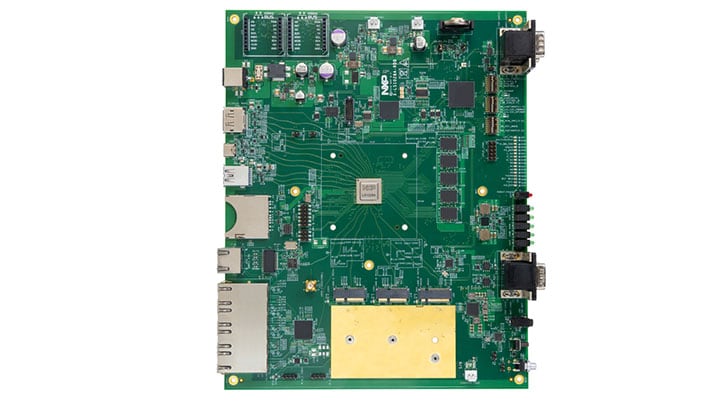

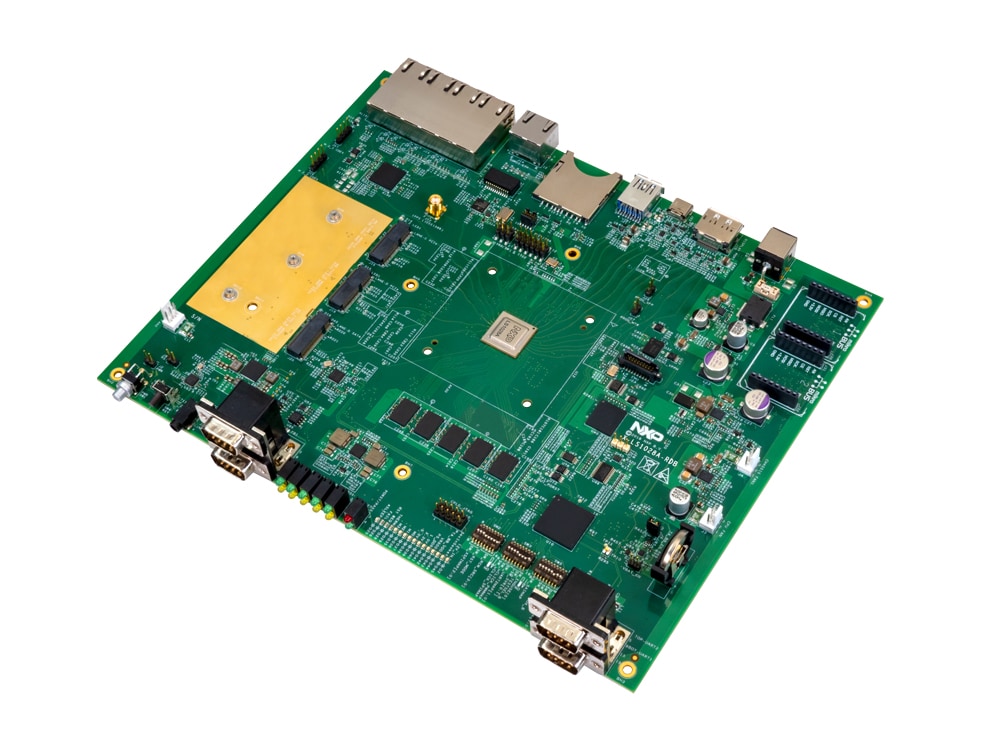

The LS1028A reference design board (RDB) is a computing, evaluation, and development platform that supports industrial IoT applications, human machine interface solutions, and industrial networking.

The LS1028A processor is dual-core 64-bit Arm® Cortex®-A72. The LS1028ARDB can help reduce development time by providing:

  • A reference for custom board development
  • A debug tool to check behavior on the board compared to custom board designs
  • A pre-loaded embedded Linux® Software Development Kit (SDK) for Layerscape® processors

Block Diagram

Layerscape LS1028A

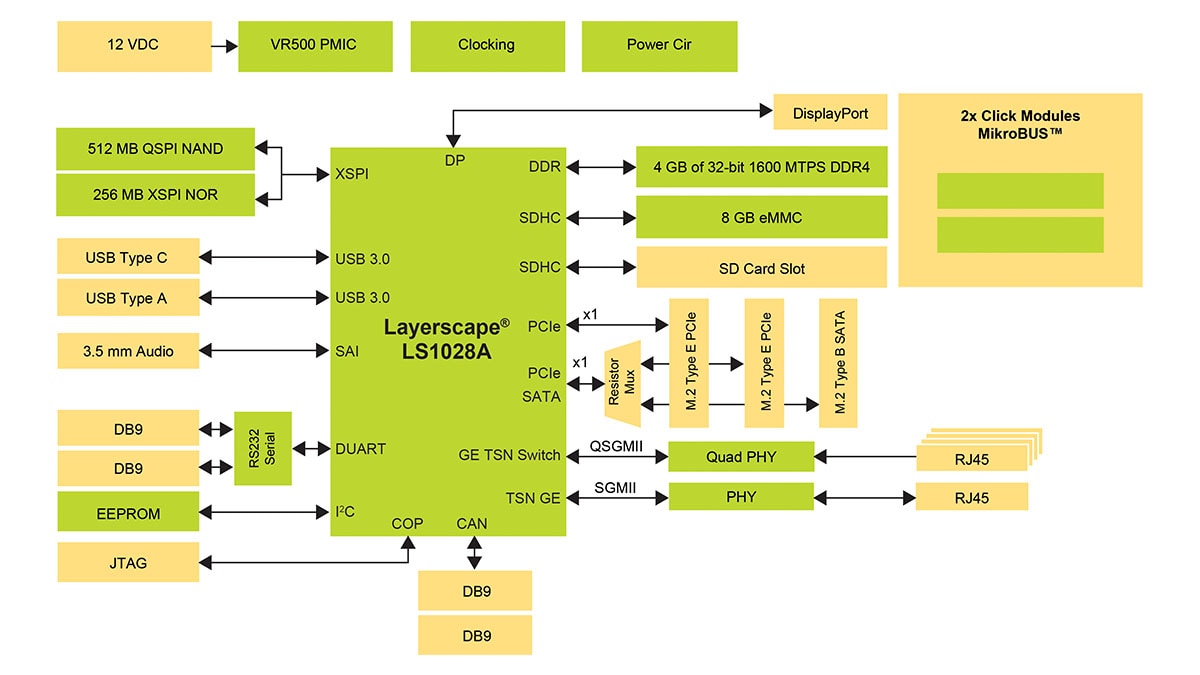

LS1028ARDB BLOCK DIAGRAM
Get diagram PDF

Supported Devices

Processors and Microcontrollers

Layerscape Processors

  • LS1028A: Layerscape® 1028A Applications Processor

Features

Processor

  • Layerscape LS1028A dual-core processor based on Cortex-A72 at 1.3 GHz
  • ECC on internal L1, L2 caches for high-reliability applications

Memory

  • 4 GB DDR4 SDRAM w/ECC
  • 32-bit DDR4 bus at data rates up to 1600 MT/s
  • 256 MB QSPI NOR flash
  • 512 MB QSPI NAND flash
  • 8 GB eMMC
  • SDHC port connected to full-size SD slot

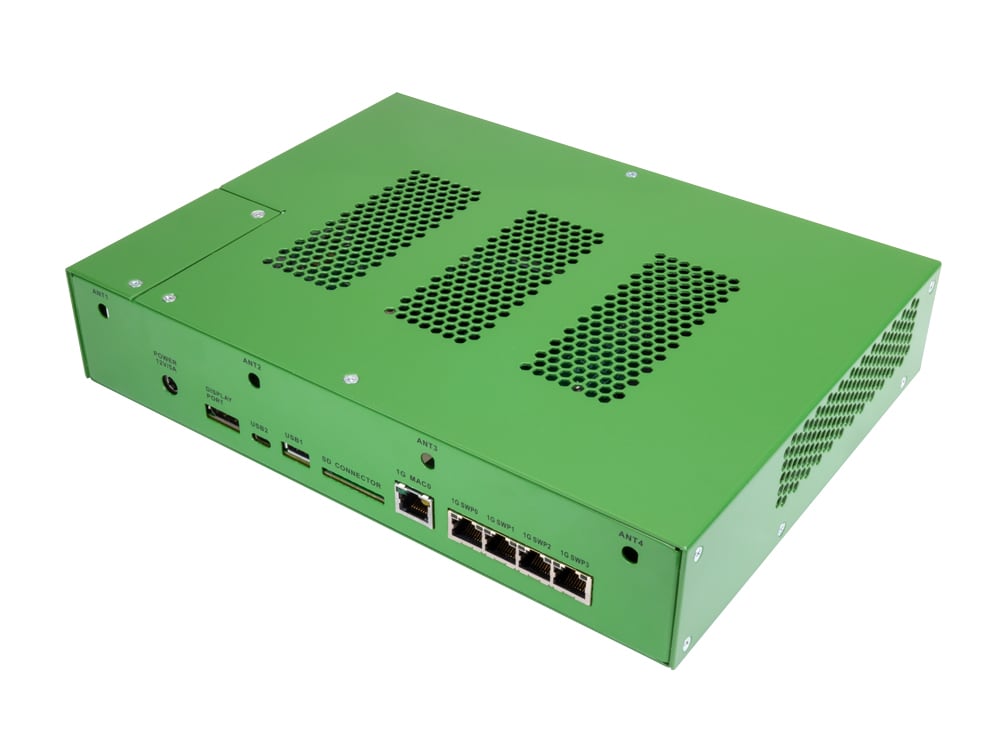

Ethernet

  • x1 RJ45 connector for 1Gbps Ethernet support w/TSN, 1588
  • x4 RJ45 connector for 1Gbps Ethernet switch support w/TSN, 1588 (QSGMII)

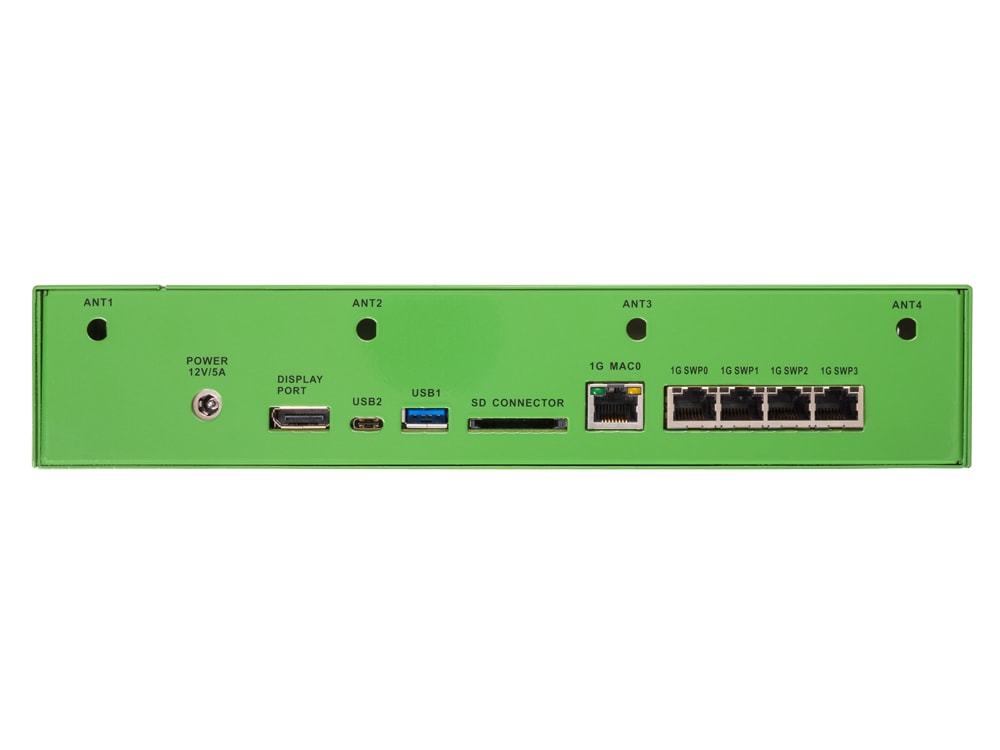

Basic Peripherals and Interconnect

  • 2x M.2 Type E slots with PCIe Gen 3.0 x1
  • 1x M.2 Type B slot with SATA 3.0 (resistor mux with 1 Type E slot)
  • 1x Type A USB 3.0 super-speed port
  • 1x Type C USB 3.0 super-speed port
  • 1x DisplayPort interface
  • 2x DB9 RS232 serial ports
  • 2x DB9 CAN interfaces
  • 1x 3.5 mm audio out
  • 2x MikroBUS™ sockets

Buy Options

LS1028ARDB-PA-Image

Click to expand

  • LS1028ARDB-PA
    Active

  • Layerscape® 1028A Applications Processor.

  • Kit Contains:

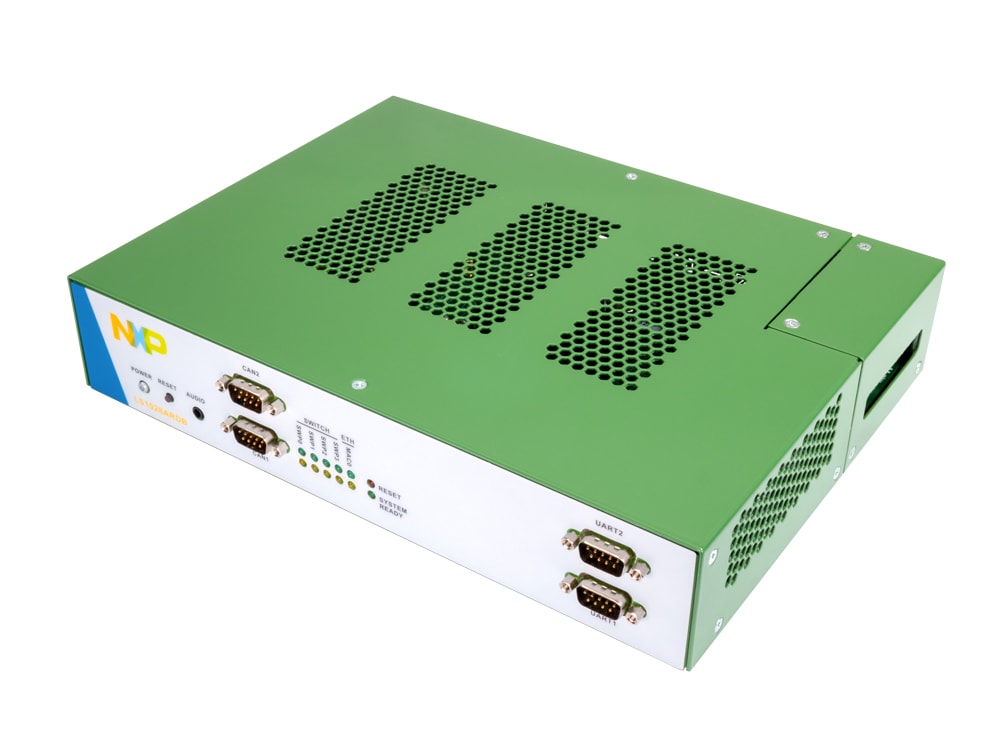

    • LS1028ARDB hardware assembly with enclosure
    • 12 V, 6.67 A AC-DC power adapter
    • Universal adapter
    • Cable, USB 3.1 Type-C Male to USB 3.0 Type-A Female, 50 mm
    • Cable, USB Type-A to DB9F (Windows 10 support), 1 m
    • Ethernet cable, 6 ft (min)
    • Cable, DB9F-to-DB9F
    • Programmed 16 GB SD card
  • $1928.24 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors

Documentation

Quick reference to our documentation types.

Filters

6 documents

Compact List

Application Note (1)
Errata (1)
Fact Sheet (1)
Quick Reference Guide (1)
Reference Manual (1)
User Guide (1)

Design Resources

Select a section:

Related Hardware

Quick reference to our board types.
Filters

3 hardware offerings

  • uCLS1012A IoT SoM
    Embedded Board Solutions

    uCLS1012A IoT SoM

    LS1012A based SMARC SoM for secure IoT applications. It includes Mbarx Secure IoT software for connectivity, telemetry, management, OTA firmware updates over Ethernet or ...
    uCLS1012A IoT SoM By Arcturus Gold Partner
  • uCLS1012A VoIP SoM
    Embedded Board Solutions

    uCLS1012A VoIP SoM

    LS1012A based SMARC SoM for hardened VoIP and IP audio/PA applications. Supports SIP/RTP with audio processing including intelligibility enhancements. SIPxtream + Mbarx s...
    uCLS1012A VoIP SoM By Arcturus Gold Partner
  • MYC-J1028X SOM
    Embedded Board Solutions

    MYC-J1028X SOM

    The MCY-J1028X SOM is a high performance based on NXP LS1028 CPU ,it offers Dual Core ARM cortex A72 running at 1.5Ghz. It is in MXM 3.0 formfactor ,equipped with 2GB DD4...
    MYC-J1028X SOM By MYIR Electronics Limited Gold Partner

To find a complete list of our partners that support this product, please see our Partner Marketplace.
