Evaluation Board for PF8121 Power Management IC

KITPF8121FRDMEVM Active

Roll over image to zoom in

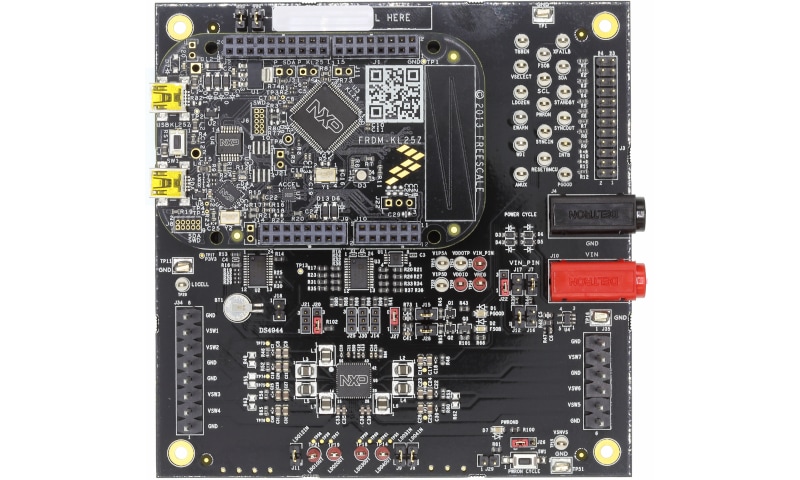

The KITPF8121FRDMEVM is a customer evaluation board featuring the PF8121 power management IC. The kit integrates all hardware needed to fully evaluate the featured power management integrated circuit.

PMIC evaluation board integrates a communication bridge based on the FRDM-KL25Z freedom board to interface with the FlexGUI software interface to fully configure and control the PF8121 PMIC.

Product Details

Supported Devices

Power Management

PMICs

  • PF8121: 12-Channel Power Management Integrated Circuit (PMIC) for High-Performance Consumer Applications

Features

System Features

  • 2.5 V to 5.5 V operating input voltage range
  • USB to I²C communication via the FRDM-KL25Z interface
  • Up to 1.0 MHz I²C communication
  • Selectable hardwire default PMIC configuration or OTP/TBB operation
  • Advance system monitoring/diagnostic via PMIC and/or system AMUX
  • Leader/follower interface connector for multi-PMIC support
  • Onboard I/O regulator with 1.8 V/3.3 V selectable output voltage

PMIC Features

  • Up to seven switching regulators with multiphase capability
  • Four LDO regulators with selectable switch mode operation
  • Programmable output voltage and current limits
  • Programmable switching frequency with selectable frequency spread spectrum
  • RTC supply with programmable coin cell charger
  • Voltage monitoring circuits
  • System watchdog monitoring

Buy Options

KITPF8121FRDMEVM-Image

Click to expand

  • KITPF8121FRDMEVM
    Active

  • Evaluation Board for PF8121 Power Management IC.

    • Assembled and tested KITPF8121FRDMEVM and preprogrammed FRDM-KL25Z microcontroller board in an anti-static bag
    • 3.0ft. USB-STD A to USB-B-mini cable
    • Quick Start Guide
  • $228.85 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
