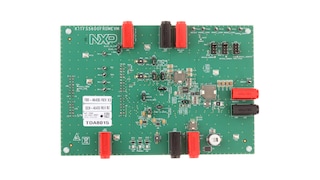

FS5600

Roll over image to zoom in

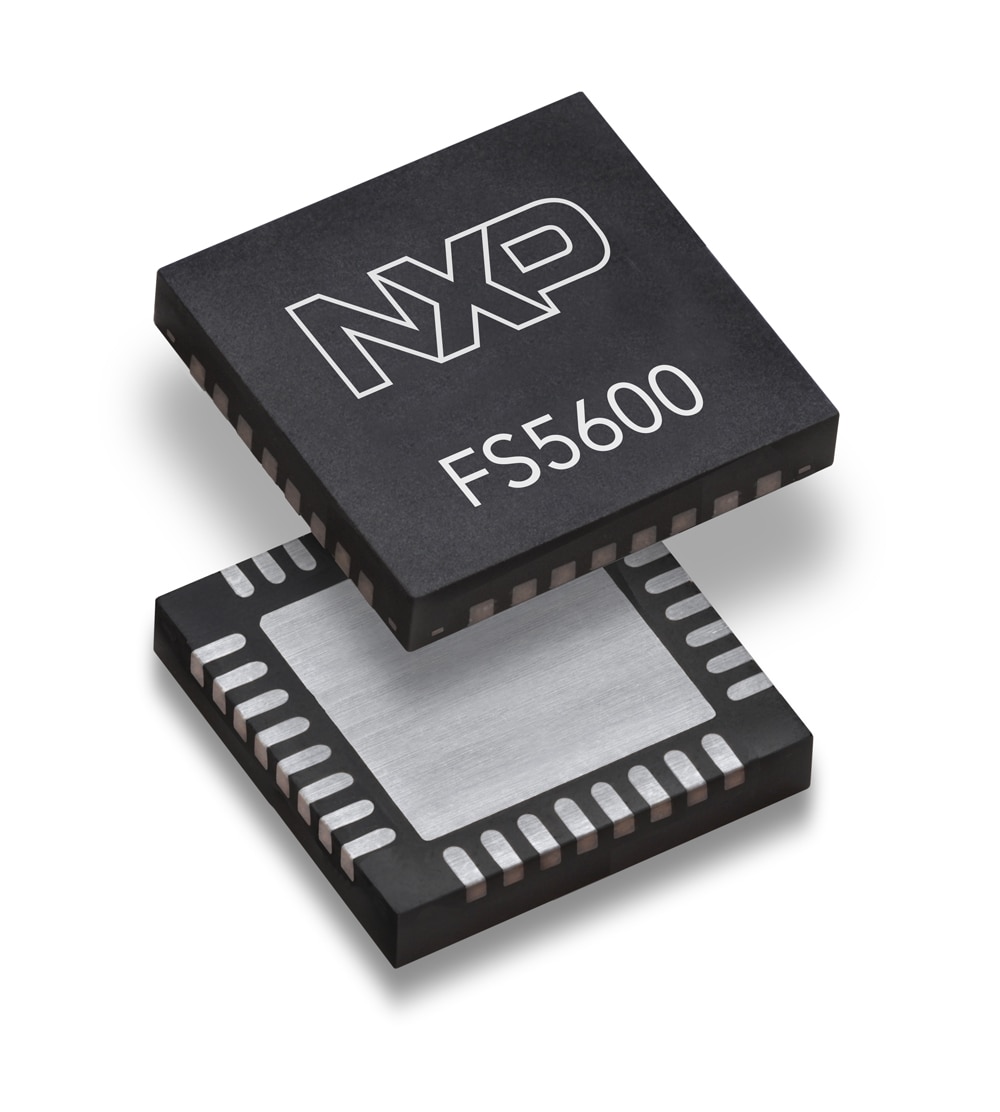

The FS56 System Basis Chip (SBC) for Automotive features a battery connected DC-DC buck controller with external FET and a battery connected DC-DC buck controller with internal FET.

In addition, it offers functional safety features such as independent voltage monitors, windowed watchdog timer, I/O monitoring via ERRMON and FCCU and built-in-self test. The FS56 is offered in QM, ASIL B and Enhanced ASIL B versions.

The FS56 offers highly configurable General Purpose Input/Outputs for seamless operation with PF PMICs as PF8x, PF7x and PF5x families.

The FS56 presents an optimized architecture for automotive with low-power modes and EMC minimizing as spread spectrum, frequency tuning and synchronization.

Product Details

Block Diagram

FS56 Block Diagram

Get diagram PDF

Features

Power Management

2 x High-Voltage Buck Converters:
HV Buck Controller - External FETs – up to 15A load
3 A HV Buck Regulator – Internal FETs - η = 93% @ 3A
+/- 2% Output Accuracy
250 kHz to 3 MHz switching frequency
High-Efficiency PFM Mode (700 uW quiescent power)

System Features

Dual independents DC/DC Buck
GPIOs for seamless operation with PF PMICs
Rated from -40 °C to 150 °C TJ

Safety Features (ASIL B)

ASIL B compliant
2 internal and 4 external voltage monitors
Windowed Watchdog Timer
PGOOD and FS0B outputs
ABIST and LBIST
SoC HW monitoring pins (FCCU and ERRMON)

Programmability

Supplies, sequencing and specific functions can be programmed by One Time programmable (OTP) memory
Standard Predefined OTP supporting popular MCU can be found in data sheet under “ordering information” chapter
Custom OTP can be provided for production. Please contact your NXP sales channel (NXP or your distributor)
Custom OTP can be created using the NXP GUI software tool

Product Longevity Program

This product is included in the NXP Product Longevity program ensuring a stable supply of products for your embedded designs. Automotive target market derivatives are included in the 15-year program and Industrial target market derivatives are included in the 10-year program

Comparison Table

Device options for Automotive

Part Number	Target Market	Safety Grade	OTP ID
MFS5600AMMA0ES	Automotive	QM	A0-Non-programmed
MFS5600AMBA0ES	Automotive	ASIL B	A0-Non-programmed
MFS5600AMEA0ES	Automotive	Enhanced ASIL B	A0-Non-programmed
MFS5600AMMA7ES	Automotive	QM	A7 – `SW1` = 5.0 V, `SW2` = 3.3 V MFS5600A7ES-OTP-Report
MFS5600AMMA8ES	Automotive	QM	A8 – `SW1` = 3.3 V, `SW2` = 5.0 V MFS5600A8ES-OTP-Report
MFS5600AMBAFES	Automotive	ASIL B	AF – `SW1` = 3.3 V, `SW2` = 5.0 V MFS5600AMBAFES-OTP-Report
MFS5600AMMABES	Automotive	QM	AB – `SW1` = 5.0 V, `SW2` = 5.0 V MFS5600AMMABES-OTP-Report

Device options for Industrial

Part Number	Target Market	Safety Grade	OTP ID
MFS5600AVNA0EP	Industrial	QM	A0-Non-programmed
MFS5600AVMABEP	Industrial	QM	AB – `SW1` = 5.0 V, `SW2` = 5.0 V MFS5600AVMABEP-OTP-Report
MFS5600AVMADEP	Industrial	QM	AD – `SW1` = 3.3 V, `SW2` = 3.3 V MFS5600AVMADEP-OTP-Report
MFS5600AVMAEEP	Industrial	QM	AE – `SW1` = 5.5 V, `SW2` = 5.0 V MFS5600AVMAEEP-OTP-Report

Product Program

Safe Assure^® (Functional Safety)

When it comes to functional safety, NXP stands for quality and reliability. Our SafeAssure program simplifies system-level safety requirements in accordance with ISO 26262.

BYLink System Power Platform

This platform facilitates the design of safe power management systems thanks to a portfolio of configurable and linkable devices. It simplifies complex power supply subsystems into a single smart solution.

Learn more

Product Longevity

This product is included in the NXP Product Longevity Program ensuring a stable supply of products for your embedded designs.
