PF8100-PF8200-EVAL-KITS

Roll over image to zoom in

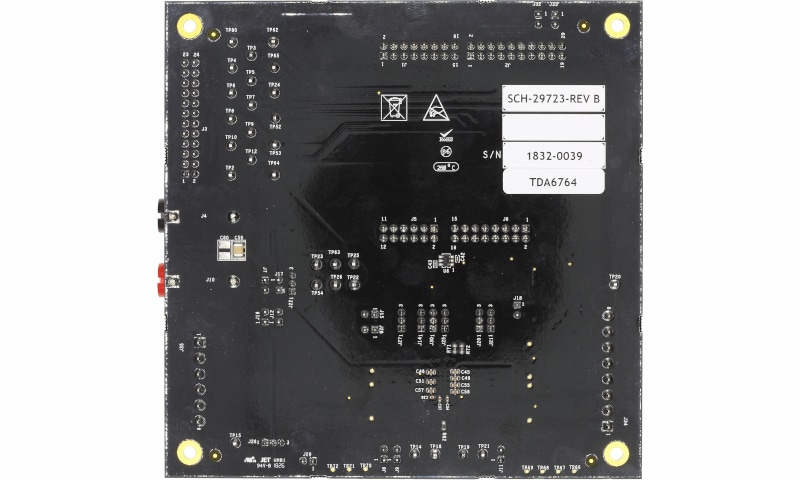

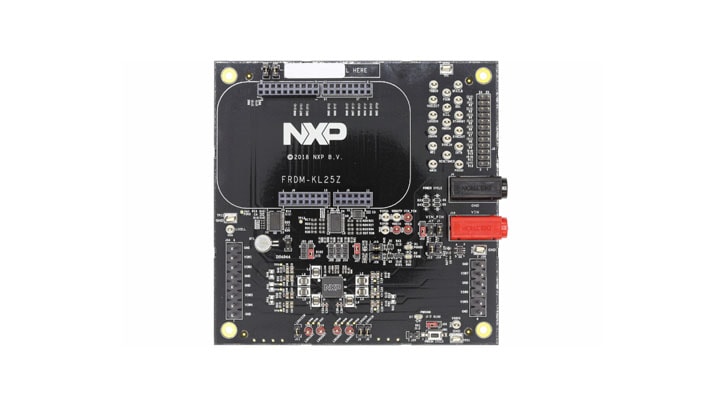

The KITPF8100FRDMEVM and KITPF8200FRDMEVM are customer evaluation boards featuring the PF8100 and PF8200 power management IC.

The kits integrate all hardware needed to fully evaluate the featured power management integrated circuit. It integrates a communication bridge based on the FRDM-KL25Z freedom board to interface with the FlexGUI software interface to fully configure and control the PF8100/ PF8200 PMIC.

Design Files

Software

Product Details

Supported Devices

Power Management

PMICs

PF81-PF82: 12-Channel Power Management Integrated Circuit (PMIC) for High-Performance Processing Applications

Features

System Features

2.5 V to 5.5 V operating input voltage range
USB to I²C communication via the FRDM-KL25Z interface
Up to 1.0 MHz I²C communication
Selectable hardwire default PMIC configuration or OTP/TBB operation
Advance system monitoring/diagnostic via PMIC and/or system AMUX
Leader/follower interface connector for multi-PMIC support
On-board I/O regulator with 1.8 V/3.3 V selectable output voltage

PMIC Features

Up to seven switching regulators with multiphase capability
Four LDO regulators with selectable switch mode operation
Programmable output voltage and current limits
Programmable switching frequency with selectable frequency spread spectrum
RTC supply with programmable coin cell charger
Voltage monitoring circuits
System watchdog monitoring

Buy Options

Click to expand

KITPF8100FRDMEVM
PF8100/PF8200 Customer Evaluation Boards.
- Assembled and tested KITPF8100FRDMEVM and preprogrammed FRDM-KL25Z microcontroller board in an anti-static bag

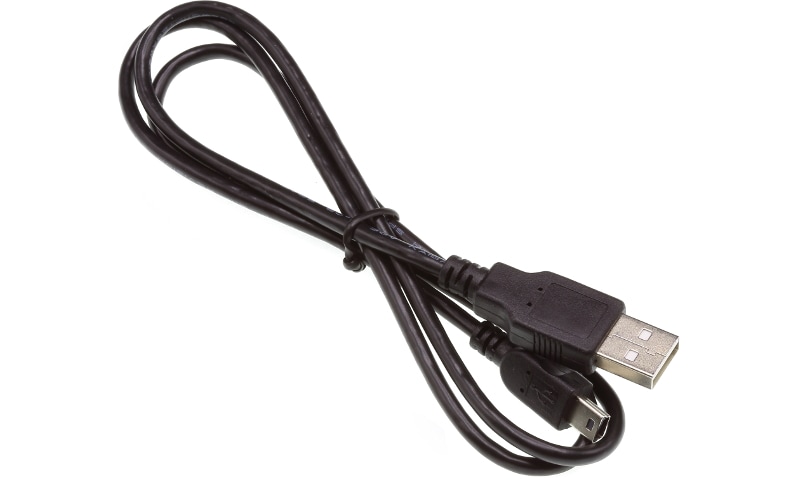

- 3.0 ft. USB-STD A to USB-B-mini cable
- Quick Start Guide

$341.02USD
For a quantity of 1
- Availability: In stock
- Inventory: 10
- Shipping: Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

KITPF8200FRDMEVM
Freedom Expansion board, PF8200 PMIC, i.MX8,.
- Assembled and tested KITPF8200FRDMEVM, and preprogrammed FRDM-KL25Z microcontroller board in an anti-static bag
- 3.0 ft. USB-STD A to USB-B-mini cable
- Quick Start Guide

$359.66USD
For a quantity of 1
- Availability: In stock
- Inventory: 10
- Shipping: Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Documentation

Quick reference to our documentation types.

4 documents

^{User Guide}
Get Started with the PF8100/PF8200 Evaluation Board Getting Started

HTMLDec 20, 2022GS-PF8100-PF8200-EVAL-KITSEnglish
^{User Guide}
KITPF8100FRDMEVM / KITPF8200FRDMEVM evaluation board - User GuideGetting Started

PDFRev 1.0Apr 22, 20193.3 MBUM11160English
Sign in required
^{Data Sheet}
PF8100_PF8200, 12-channel power management integrated circuit for high performance applications - Data sheet

PDFRev 11Feb 24, 20211.5 MBPF8100_PF8200English
^Errata
ES_PF8100_PF8200_2, Errata sheet for PF8100, PF8200 - Errata sheet

PDFRev 2.0Aug 11, 2020344.0 KBES_PF8100_PF8200_2English

Design Resources

Related Hardware

Quick reference to our board types.

1 hardware offering

^{Evaluation and Development Boards}
PF8200/PF8100 Programming BoardActive

KITPF8200FRDMPGMSimilar

Design Files

Quick reference to our design files types.

4 design files

^{Printed Circuit Boards and Schematics}
KITPF8200FRDMEVM Schematics

PDFRev CJul 1, 2019 12:31:00204.5 KBSPF-29723
Sign in required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
^{Printed Circuit Boards and Schematics}
KITPF8100FRDMEVM Schematics

PDFRev BJul 1, 2019 12:31:00569.8 KBSPF-32204
Sign in required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
^{Printed Circuit Boards and Schematics}
Gerber files for the KITPF8100FRDMEVM Evaluation board

ZIPRev BJul 24, 2019 14:45:006.3 MBKITPF8100FRDMEVM-GR
Sign in required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
^{Printed Circuit Boards and Schematics}
Gerber files for the KITPF8200FRDMEVM Evaluation board

ZIPRev CJul 30, 2019 14:45:006.3 MBKITPF8200FRDMEVM-GR
Sign in required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Software

Quick reference to our software types.

3 software files

^{Debugging and Visualization Tools}
FlexGUI: Software Tool for Evaluation of Reference Design Kits

Download Options
^{Simulation and Modeling Tools}
NXP GUI for Automotive PMIC Families

Download Options
^{Software Development Resources}
Embedded SW: PF8x SW Driver

Download Options

Note: For better experience, software downloads are recommended on desktop.
