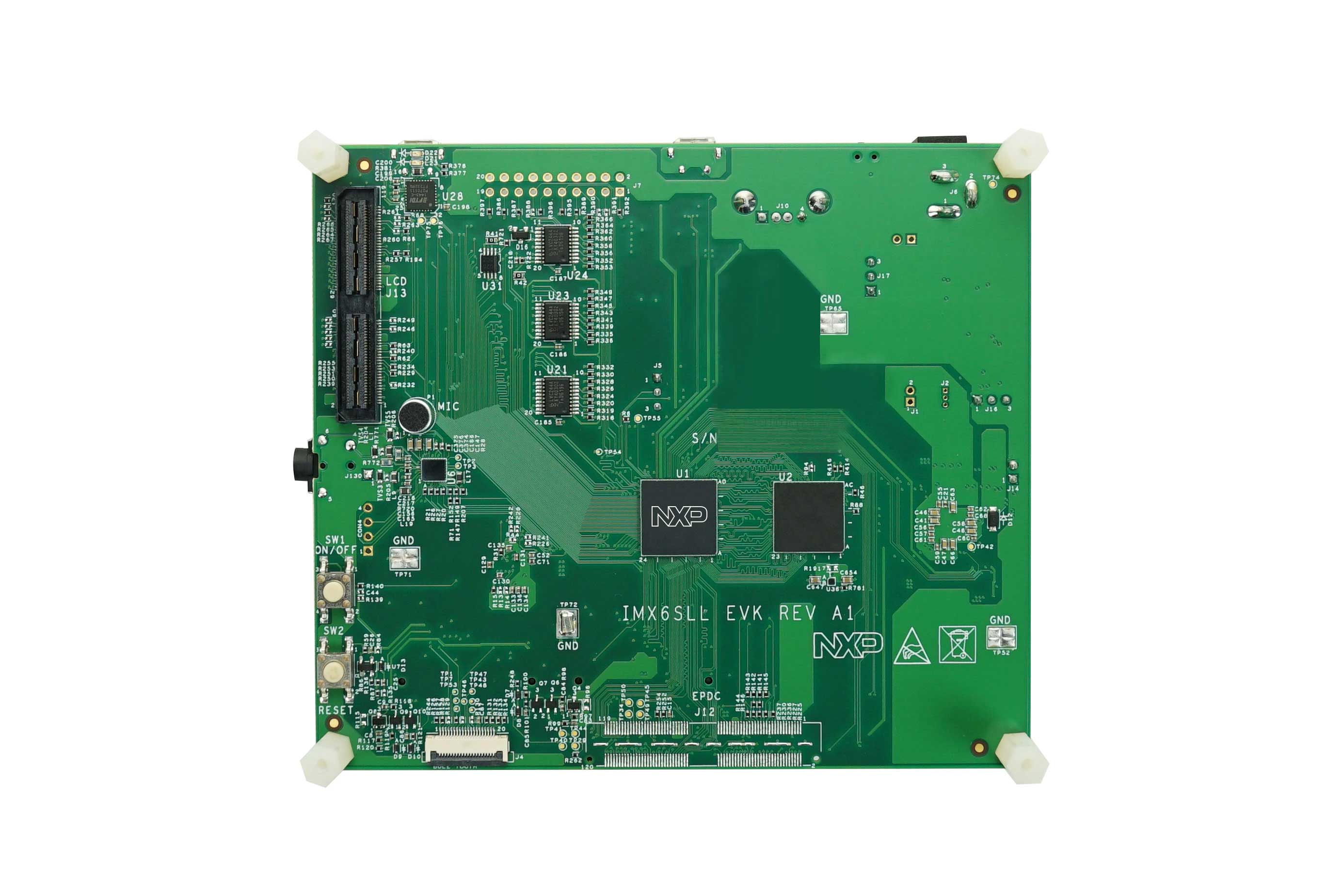

NXP^® delivers highly-flexible, market-focused development tools with an Evaluation Kit (EVK) based on the i.MX 6SLL applications processor.

The processor features NXP’s advanced implementation of a single Arm^® Cortex^®-A9, which operates at speeds up to 1GHz. The processor provides a 32-bit DDR interface that supports LPDDR2 and LPDDR3. In addition, there are a number of other interfaces for connecting peripherals, such as WLAN, Bluetooth^™, GPS, hard drive, displays, and camera sensors.

This EVK enables EPDs with touch control and LCD display, audio playback and the ability to add WLAN, a 3G modem or Bluetooth^® wireless technology. Additionally, the EVK facilitates software development with the ultimate goal of faster time to market through the support of Linux^® OS operating systems.

Design Files

Software

Product Details

Supported Devices

Processors and Microcontrollers

i.MX 6 Processors

i.MX6SLL: i.MX 6SLL Processors - Single-Core Processor with Arm^® Cortex^®-A9 Core

Features

Processor

i.MX 6SLL 1 GHz based on Arm^® Cortex^®-A9 CORE
NXP^® PF0100 PMIC

Memory

LPDDR3 running at 400 MHz
Footprint for eMMC
2 x SD/multimedia card (MMC) sockets

Display

Footprint for EPD connector
LCD daughter card

Audio

Wolfson WM8962 audio codec
Audio HP jack
External speaker connection
Microphone

Connectivity

USB host connectors
Micro USB OTG connector

Debug

JTAG connector (footprint)
One console UART

Buy Options

Click to expand

MCIMX6SLL-EVK
i.MX 6SLL Evaluation Kit.

$228.85 USD
For a quantity of 1
- Availability: Pending Stock

ADD TO CART

Order from distributors
