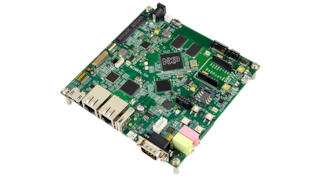

NXP^® delivers the Smart Application Blueprint for Rapid Engineering (SABRE) board based on i.MX7Dual applications processor, utilizing both the Arm^® Cortex^®-A7 and Cortex^®-M4 cores with enhanced security and power optimization.

With the goal of faster time to market, the SABRE board allows developers to evaluate the processors’ primary features including hardware-enabled security, integrated EPD controller, LCD/HDMI/MIPI DSI display and flexible connectivity interface, plus rich on-board solutions to Wi-Fi^®/Bluetooth^®4.0+EDR (Supporting Bluetooth Low Energy), and dual 1 Gigabit Ethernet.

The corresponding software support enables developers to run a rich operating system like Linux^® or Android^™ on the Arm Cortex-A7 core and FreeRTOS on the Arm Cortex-M4 core, exploring the full potential of the Heterogeneous Multicore Processing (HMP) architecture.

Design Files

Software

Product Details

Supported Devices

Processors and Microcontrollers

i.MX 7 Processors

i.MX7D: i.MX 7Dual Processors - Heterogeneous Processing with Dual Arm^® Cortex^®-A7 Cores and Cortex-M4 Core

Features

Processor

Two Arm^® Cortex^®-A7 core operating up to 1 GHz
Single Arm Cortex -M4 core operating up to 200 MHz

Memory

1 GB DDR3, 533 MHz
eMMC expansion footprint
NAND flash expansion footprint
QSPI flash expansion footprint

Power Management

PF3000 PMIC

Display/Camera Connectors

Expansion port for EPDC (Electrophoretic Display Controller)
Port for Parallel LCD display
Port for HDMI display
Port for MIPI DSI display
Port for MIPI CSI CMOS sensor (camera)

Wireless

802.11 a/b/g/n/ac Wi-Fi^® on board
Bluetooth V4.0 + EDR on board

Connectivity

Dual Ethernet (both 1 GigE) on board
1 SD socket for boot code
1 mikroBus^™ socket
1 USB host connector
1 micro USB OTG connector
Full Mini PCIe socket
SIM card slot
CAN (DB-9)

Debug

UART via USB port
10-pin standard JTAG connector for debugging

Sensor Fusion

Accelerometer, magnetometer, gyroscope
Barometer, altimeter

Buy Options

Click to expand

MCIMX7SABRE
SABRE Board, Hardware, i.MX 7.
Kit Contains
- i.MX 7Dual SABRE board for smart devices
- Power supply
- USB cable (micro-B to standard-A)
- Quick Start Guide
- SD card with bootable Linux operating system demonstration

$286.35 USD
For a quantity of 1
- Availability: Pending Stock

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order
