i.MX 7Dual Processors Family

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Click over video to play

The i.MX 7Dual family of processors represents our latest achievement in high-performance processing for low-power requirements with a high degree of functional integration. These processors are targeted towards the growing market of connected devices. The i.MX 7Dual family of processors features our advanced implementation of the Arm® Cortex®-A7 core, which operates at speeds of up to 1.2 GHz, as well as the Arm Cortex-M4 core. The i.MX 7Dual family supports multiple memory types including 16/32-bit DDR3L/LPDDR2/LPDDR3-1066, Quad SPI memory, NAND, eMMC and NOR. Several high-speed connectivity connections include Gigabit Ethernet with AVB, PCIe and USB. Both parallel and serial Display and Camera interfaces are provided, as well as a way to directly connect to the Electrophoretic Displays (EPD).

i.MX 7 applications processors are part of NXP's EdgeVerse™ edge computing platform.

Data Sheet

Reference Manual

Product Details

Block Diagram

i.MX 7Dual Processors

Get diagram PDF

Features

Heterogeneous Multicore Processing Architecture, up to Dual Cortex-A7 and Cortex-M4 configuration
External Memory Support: DDR3/DDR3L/LPDDR2/LPDDR3
Flash Memory Support: NAND (60-bit ECC), Managed NAND (eMMC, eSD)
Electrophoretic Display (EPD) Controller
Dual Gigabit ETH controllers supporting AVB
Parallel RGB and MIPI DSI Display Interfaces
Parallel and MIPI CSI Camera Interfaces
256 KB SRAM
Quad SPI
Communication Ports (I²C, SAI, UART, SPI, SDIO, USB, PCIe)

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Documentation

Quick reference to our documentation types.

1-5 of 26 documents

Supporting Information
L4.1.15_2.0.0_LINUX_DOCSFeatured

GZRev L4.1.15_2.0.0Jan 18, 20178.8 MBL4.1.15_2.0.0-LINUX-DOCSEnglish

Account Required
Data Sheet
i.MX 7Dual Family of Applications Processors Datasheet

PDFRev 7Sep 18, 20233.0 MBIMX7DCECEnglish, 日本語
Reference Manual
i.MX 7Dual Applications Processor Reference Manual

PDFRev 1Jan 22, 201834.5 MBIMX7DRMEnglish

Account Required
Reference Manual
Security Reference Manual for i.MX 7Dual and 7Solo Applications Processors

PDFRev 0Apr 1, 20177.7 MBIMX7DSSRMEnglish

Account Required
Application Note
Secure Debug in i.MX 6/7/8M Family of Applications Processors

HTML | PDFRev 3.0Oct 14, 2024566.5 KBAN4686English

Account Required
Application Note
Loading Code on Cortex-M from U-Boot/Linux for the i.MX Asymmetric Multi-Processing Application Processors

HTML | PDFRev 3Oct 7, 2024579.9 KBAN5317English
Application Note
Demo Application to Generate Red/Black Blobs Using CAAM and Encrypt/Decrypt Data

PDFRev 2Mar 8, 2024174.6 KBAN12554English

Account Required
Application Note
Ethernet Controller Configuration on i.MX 8MP and i.MX 93 Processors

PDFRev 1Jan 10, 2024404.5 KBAN14149English, 中文

Account Required
Application Note
i.MX ROMs Log Events

PDFRev 1Sep 21, 2023162.1 KBAN12853English

Account Required
Application Note
i.MX Manufacturing Protection

PDFRev 0May 24, 2021791.3 KBAN13222English, 中文

Account Required
Application Note
i.MX Encrypted Storage Using CAAM Secure Keys

PDFRev 2Feb 9, 2021209.6 KBAN12714English

Account Required
Application Note
Secure Over-the-Air Prototype for Linux Using CAAM and Mender

PDFRev 1Nov 18, 20202.3 MBAN12900English

Account Required
Application Note
HABv4 RVT Guidelines and Recommendations

PDFRev 1Jun 30, 2020145.7 KBAN12263English

Account Required
Application Note
i.MX Secure Boot on HABv4 Supported Devices

PDFRev 4Jun 11, 2020665.2 KBAN4581English

Account Required
Application Note
Strengthening Public Key Cryptography using CAAM Secure Key

PDFRev 0Jun 8, 2020198.8 KBAN12838English

Account Required
Application Note
Tampering Application for i.MX7Dsabresd

PDFRev 1Feb 25, 20201.1 MBAN12210English

Account Required
Application Note
AN12632: Enhanced OpenSSL on i.MX 8M and i.MX 8MM – Application Note

PDFRev 0Jan 31, 2020278.7 KBAN12632English

Account Required
Application Note
i.MX 7DS Power Consumption Measurement

PDFRev 1Jun 10, 20191.0 MBAN5383English
Application Note
Encrypted Boot on HABv4 and CAAM Enabled Devices

PDFRev 0Nov 11, 2018811.5 KBAN12056English

Account Required
Application Note
i.MX7 Dual/Solo Product Lifetime Usage

PDFRev 1May 11, 2017453.2 KBAN5334English
Application Note
i.MX7 SABRE SD Board—Running the Core at 1.2 GHz

PDFRev 0Apr 24, 2017532.3 KBAN11957English
User Guide
Hardware Development Guide for i.MX7Dual and 7Solo Applications Processors

PDFRev 1Jul 10, 20172.0 MBIMX7DSHDGEnglish

Account Required
User Guide
PCIe® Certification Guide for i.MX 7Dual

PDFRev 0Feb 21, 20172.3 MBPCIECGFIMX7DUGEnglish
Errata
Mask Set Errata for Mask 2N09P

PDFRev 1.1Apr 4, 2023148.4 KBIMX7DS_2N09PEnglish

Account Required
Errata
Mask Set Errata for Mask 3N09P

PDFRev 1.2Apr 4, 2023151.8 KBIMX7DS_3N09PEnglish
Fact Sheet
i.MX 7Solo, i.MX 7Dual Fact Sheet

PDFRev 1Mar 4, 2020310.8 KBIMX7SOLODUALFSEnglish

Show All

Design Resources

Design Files

Quick reference to our design files types.

5 design files

Receive the full breakdown. See the product footprint and more in the eCad file.

Models
BSDL file for i.MX 7D

ZIPRev 2May 17, 2024 00:00:0015.3 KBIMX7D_BSDL

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Models
IMX7D-IBIS Model

ZIPRev 20161010Jan 11, 2017 00:00:0017147 KBIMX7D_IBIS

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Models
IMX7-IBIS Model

ZIPRev 20161010Jan 11, 2017 00:00:0017146 KBIMX7_IBIS

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
Design files for i.MX 7Dual

ZIPRev DMay 6, 2016 00:00:005.8 MBiMX7D-SABRE-DESIGNFILES

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
Design files, including hardware schematics, Gerbers, and OrCAD files for i.MX 7Dual

ZIPRev DMay 6, 2016 00:00:001.7 MBiMX7D-EVK-BRD-DESIGNFILES

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Hardware

Quick reference to our board types.

1-5 of 7 hardware offerings

Evaluation and Development Boards
SABRE Board for Smart Devices Based on the i.MX 7Dual Applications ProcessorsFeatured

MCIMX7SABRE
Emulators, Probes, and Programmers
Universal Multilink Development Interface

UMultilink
Emulators, Probes, and Programmers
PEmicro Cyclone programmer

CYCLONE
Additional hardware available. View our featured partner solutions.
Emulators, Probes, and Programmers
PEmicro Cyclone FX programmer

CYCLONE-FX
Emulators, Probes, and Programmers
Universal Multilink FX High-Speed Development Interface

U-MULTILINK-FX
Evaluation and Development Boards

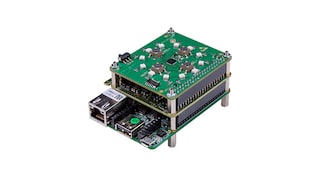

Creoir Far-Field Voice Solution

CREOIR-VOICE-SOLUTION
Evaluation and Development Boards
MPC560x Calibration, Debug and Interface Boards

MPC560xBOARDS

Show All

1-5 of 24 hardware offerings

Embedded Board Solutions
VAR-SOM-MX7 System on Module

highly flexible SoM based on i.MX7 1GHz Dual core ARM Cortex-A7 alongside real-time 200MHz ARM Cortex-M4 co-processor, with a variety of interfaces and connectivity optio...

By Variscite Platinum Partner
Embedded Board Solutions
TQMa7x

Security-oriented Dual Cortex A7 module based on i.MX7 with integrated Cortex M4 and smart card interface.

By TQ-Systems GmbH Platinum Partner
Embedded Board Solutions

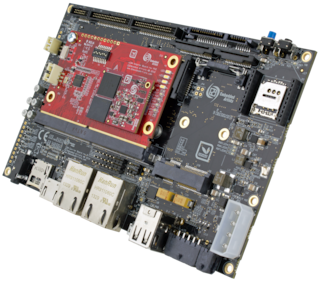

iMX7 Dual uCOM Board

The EA iMX7 Dual uCOM Board provides a quick and easy solution for implementing a high-performance ARM dual-core Cortex-A7/M4 based design. The board supports heterogeneo...

By Embedded Artists AB Gold Partner
Embedded Board Solutions
iMX7 Dual COM Board

The EA iMX7 Dual COM Board provides a quick and easy solution for implementing a high-performance ARM Cortex-A7 based design. The board supports heterogeneous multi-core ...

By Embedded Artists AB Gold Partner
Embedded Board Solutions
SBC-IOT-iMX7

SBC-IOT-iMX7 is a miniature i.MX7 Internet-of-Things Single Board Computer designed for custom networking and industrial control and monitoring applications.

By CompuLab Gold Partner
Embedded Board Solutions
Colibri iMX7D

SODIMM sized module with peak frequency 1GHz and 1 GB RAM. Key benefits include advanced security, efficient performance, and heterogeneous processing.

By Toradex® Platinum Partner
Embedded Board Solutions
PICO-IMX7

The PICO-IMX7 SoM, based on the NXP i.MX7 multi-market applications processor, is designed to enable secure and portable applications within the Internet of Things.

By TechNexion Ltd Gold Partner
Embedded Board Solutions

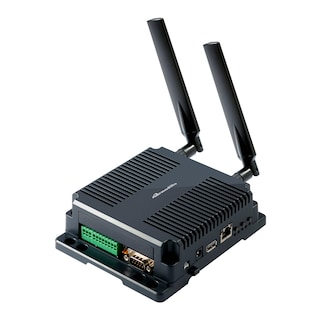

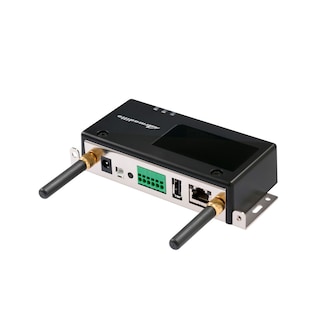

Armadillo-IoT Gateway G3L

IoT gateway with LTE communication module. It has LAN/USB/RS485 interfaces. By simply writing applications on Linux, it can be commercialized without hardware developmen...

By Atmark Techno, Inc. Gold Partner
Embedded Board Solutions
IOT-GATE-iMX7

IOT-GATE-iMX7 is a miniature i.MX7 Internet-of-Things Gateway designed for custom gateway/router and industrial control and monitoring applications.

By CompuLab Gold Partner
Embedded Board Solutions
Armadillo-IoT Gateway G3

IoT gateway with flexible expansion interfaces by Add-on modules that have any functions such as RS232C/422/485, 920MHz band wireless communication, etc.

By Atmark Techno, Inc. Gold Partner
Embedded Board Solutions

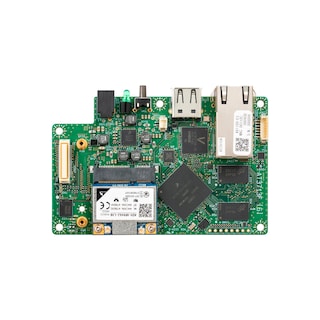

Armadillo-X1
