i.MX 8ULP Evaluation Kit 9 (EVK9)

MCIMX8ULP-EVK9

Roll over image to zoom in

The i.MX 8ULP EVK9 kit provides a platform for comprehensive evaluation of the 9.4x9.4mm i.MX 8ULP applications processors.

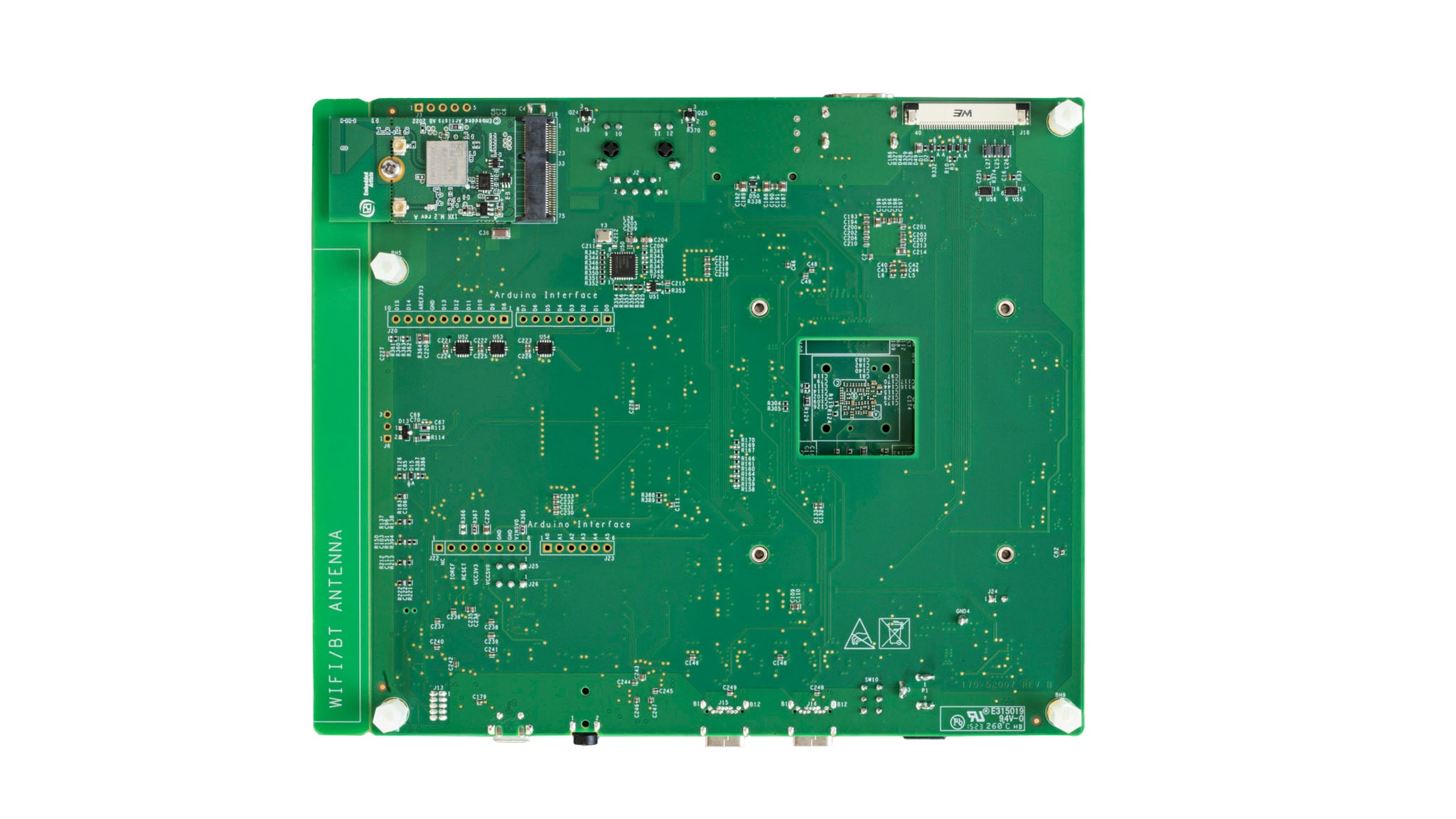

The two-board solution consists of a compute module that contains i.MX 8ULP SoC (9.4x9.4mm), LPDDR4, PMIC, Octal SPI NOR flash, Octal SPI pSRAM, and eMMC and a base board that brings out the broad connectivity that is needed for product evaluation. This kit provides an excellent starting point to accelerate your own design. .

Supported Devices

Processors and Microcontrollers

i.MX 8 Applications Processors

  • i.MX8ULP: i.MX 8ULP Applications Processor Family

Power Management

PMICs

  • PCA9460: 13-Channel Power Management Integrated Circuit (PMIC) for Ultra Low Power Application

Wireless Connectivity

Wi-Fi® + Bluetooth® + 802.15.4

  • IW416: 2.4/5 GHz Dual-Band 1x1 Wi-Fi® 4 (802.11n) + Bluetooth® 5.2 Solution

Features

Processor

  • i.MX 8ULP applications processor
  • Dual Cortex-A35 @800MHz
  • Cortex-M33 @216MHz
  • Cadence® Tensillica® Hifi 4 DSP @600 MHz
  • Cadence® Tensilica® Fusion DSP@200 MHz
  • EdgeLock® secure enclave

Memory

  • 2 GB LPDDR4
  • 32 GB eMMC
  • 32 MB Octal SPI Nor flash on RTD
  • 64 MB Octal SPI Nor flash on APD
  • 8MB Octal-SPI pSRAM on RTD

Power Management

  • NXP PCA9460A PMIC

Display and Camera Interfaces

  • HDMI Output connector
  • MIPI-DSI connector
  • miniSAS MIPI-CSI connector

Wireless

  • NXP IW416: Wi-Fi 1x1 Dual-Band (2.4/5 GHz) and Bluetooth 5.2
  • Onboard PCB antenna Wi-Fi 4 (802.11n)
  • External antenna connector

Audio

  • 3.5 mm Audio stereo headphone jack
  • I2S Expansion header – J12

Connectivity

  • 2x USB C 2.0 connectors
  • 1x 10/100M ethernet RJ45 connector
  • CAN header
  • ADC/DAC connector

Debug

  • JTAG connector
  • UART via USB micro-B connector

Sensors

  • Accelerometer / Gyroscope
  • Precision pressure sensor

Security

  • Tamper detect switch

Tools and OS Support

  • Linux®
  • Android®
  • FreeRTOS™

More

Buy Options

MCIMX8ULP-EVK9-Image

Click to expand

  • MCIMX8ULP-EVK9
    Active

  • i.MX 8ULP Evaluation Kit (EVK9).

  • Kit Contains:

    • i.MX 8ULP CPU module based on the i.MX 8ULP 9.4x9.4 package
    • Base board
    • Quick Start Guide
    • 1x USB type-C to standard-A cable
    • 1x USB micro-B to standard-A cable
    • Power supply
  • $550.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 19
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
RK055HDMIPI4MA0-Image

Click to expand

  • RK055HDMIPI4MA0
    Active

  • 5.5" LCD Panel.

  • 5.5 inch 720 x 1280 TFT LCD display with touch sensitive overlay, 2-lane or 4-lane MIPI interface

  • $90.85 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 7
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
MINISASTOCSI-Image

Click to expand

  • $74.75 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 11
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
