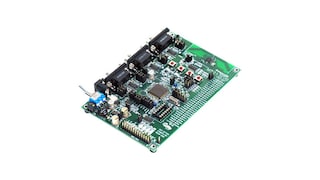

32-Bit Microcontroller with CAN

MCF521X
NRND

The MCF521X microcontroller family is a cost-effective, low-power single-chip solution with up to 521 KB of high-performance, near-single access, interleaved and securable embedded flash memory. Moreover, the MCF521X embedded controller communication peripherals provide easy connection to other systems. Three universal asynchronous receiver/transmitters (UARTS) enable medium-to long-distance communication to other control systems or computers. An inter-integrated circuit (I²C) and queued serial peripheral interface (QSPI) enable in-system communication to connected peripherals and systems, including LCDs and keyboards. This is offered along with the high-performance ColdFire® V2 core that even incorporates a multiply and accumulate module (MAC)-enhanced multiply and accumulate module (eMAC) for DSP-like operation.

Higher-end MCF5214 and MCF5216 provide an upgrade for current MMC2107, MMC2113 and MMC2114 users requiring more flash and/or higher performance with a richer set of the same peripheral mix while standardizing on one cost-effective, low-power MCU family.

Product Details

Block Diagram

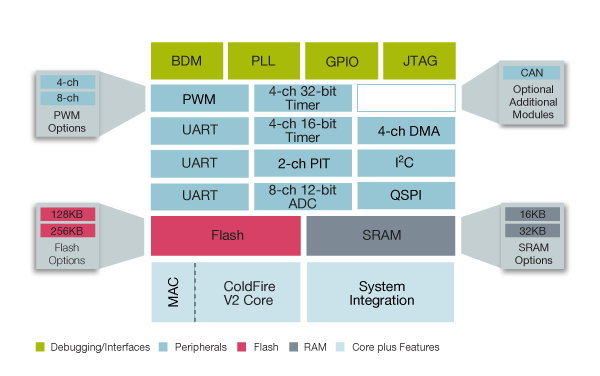

ColdFire MCF521X Microcontroller Block Diagram

ColdFire MCF521X Microcontroller Block Diagram
Get diagram PDF

Features

  • Up to 512 KB embedded flash memory
  • Up to 64 KB of static RAM
  • Integrated Peripherials:
    • Up to 56 general-purpose input/outputs (GPIOs)
    • MAC/eMAC for DSP functionality
    • 2.0B controller area network (CAN) interface with 16 message buffers (in MCF5213,MCF5214 and MCF5216)
    • Three UARTs with direct memory access (DMA) capability
    • QSPI with four peripheral chip selects
  • This product is included in NXP®.s product longevity program, with assured supply for a minimum of 10 years after launch
