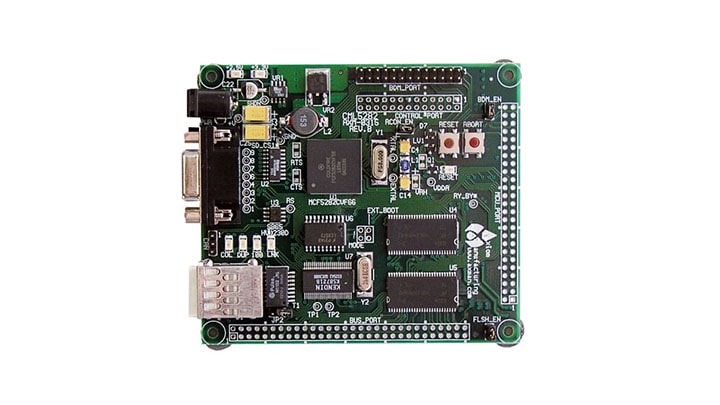

ColdFire M5282 Student Learning Kit
*All the Student Learning Kits (SLK) are being migrated over to a lead-free equivalent solution. As the new lead-free solutions (prefixed with PB, AP, or SA) become available, the existing kits will be phased out.
The Student Learning Kit includes the evaluation board which provides a low cost option for embarking on high-performance yet price sensitive embedded networking designs. With 16 MBytes of SDRAM, 10/100 BaseT Ethernet connectivity, and an excellent ColdFire® debug module, this complete package includes all the components to enable quick design support for the MCF5280, MCF5281, and MCF5282.
This cost-sensitive development platform includes RTOS, open source GNU tools, and open source TCP/IP stack. This low cost student learning kit with its software and tools combine to provide a cost effective networking platform that can be up and running right out of the box with all the necessary components for application development.
Product Details
Features
Memory
- 16 M byte SDRAM, 2 M byte Flash
Connectivity
- 10/100 Ethernet PHY and RJ45 connector
- DB-9 connector
- Serial ports
Power Management
- 6 to 14 VDC Input
- Typical Operating Power: 400 mA @ 66 MHz (expected)
