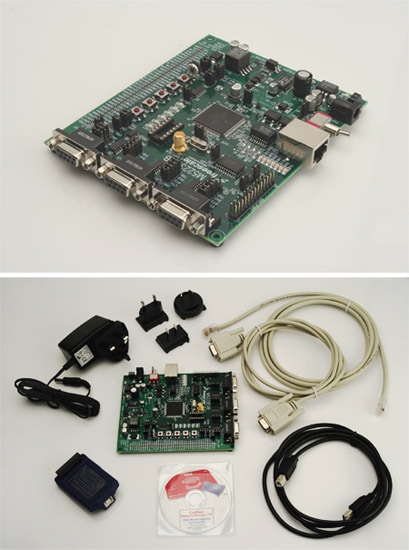

MCF52235 Evaluation Board

M52235EVB

Roll over image to zoom in

The M52235EVB evaluation board provides an excellent vehicle for high-performance embedded design of the NXP® MCF5223x family of ColdFire® MPUs.

This cost-efficient evaluation kit offers an array of complementary software, including a fully licensed special edition of the CodeWarrior® Development Studio for ColdFire Architectures for development of applications up to 128 KB code size, as well as a host of low-cost and professional tools from leading third-party tool vendors, including a ColdFire TCP/IP stack by InterNiche.

See the MCF5223X family product pages for more information on how to evaluate each MCU using the M52235EVB.

Product Details

Supported Devices

Processors and Microcontrollers

ColdFire® V2 MCUs

  • MCF5223X: Integrated ColdFire® V2 Ethernet Microcontrollers

Features

Memory devices

  • 256 KB flash internal to the MCF52235 device

User interface

  • Ethernet port 10/100 Mb/s with on-chip PHY
  • Abort/IRQ7 logic switch (debounced)
  • PLL clocking options - oscillator, crystal or SMA for external clocking signals
  • 3 - UART interfaces (auxiliary RS-232 serial port)and standard DB9 connections.
  • Supports Zigbee-ready RF daughter card.
  • Breakout connector for serial interfaces (including I2C, QSPI, GPIO, and ADC)
  • LEDs for power-up indication, general purpose I/O, and timer output signals
  • Power over Ethernet
  • Potentiometer and light sensor dedicated to the ADC
  • CAN transceiver interface>
  • BDM/JTAG interface
  • Software
  • Resident firmware package that provides a self-contained programming and operating environment (dBUG)
  • Evaluation software from leading third-party tool vendors
  • InterNiche TCP/IP Stack

Software

  • Resident firmware package that provides a self-contained programming and operating environment (dBUG)
  • Evaluation software from leading third-party tool vendors
  • InterNiche TCP/IP Stack
