MCF5213 Evaluation Board

M5213EVB

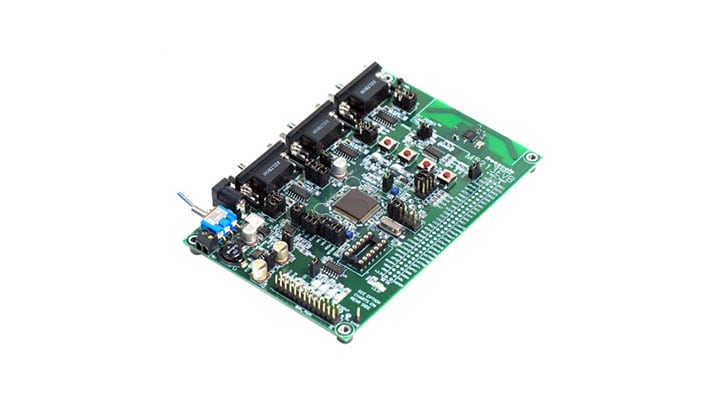

Roll over image to zoom in

Demonstrating easy to get, easy to use ColdFire® development support, the M5213EVB is a low cost development system for the NXP® MCF521x ColdFire microcontroller family.  Application development is quick and easy with the included DB9 serial cable and dBUG firmware monitor. The BDM port is compatible with standard ColdFire BDM / JTAG interface cables and hosting software, allowing easy application debugging and development with a variety of hardware and software tools.

This cost-efficient evaluation kit offers impressive additions with a fully licensed, complimentary Special Edition of the CodeWarrior® Development Studio for ColdFire Architectures  for development of applications up to 128Kbytes code size, as well as a host of ther low cost and professional tools from leading 3rd party tool vendors  The kit also comes equipped with the  MC13192 Zigbee-ready transceiver on board with and integrated Zigbee antenna making the board an impressive low cost ZigBee-enabled reference design.

The evaluation board comes fitted with an 80MHz MCF5213 microcontroller (256 Kbyte internal flash). The MCF5213 microcontroller has a superset of the same functional modules and interfaces as those on the other devices supported.

See the MCF521X product page for more information on the differences on how to evaluate each microcontroller using the M5213EVB.

Product Details

Supported Devices

Processors and Microcontrollers

ColdFire® V2 MCUs

  • MCF521X: 32-Bit Microcontroller with CAN

Features

Processor

  • MCF5213 CPU

Memory

  • 256K Byte Flash (on-chip), 32K Byte SRAM (on-chip)

Connectivity

  • MCU port
  • 60-pin I/O port
  • BDM / JTAG Port
  • 26-pin development port
  • UART0 / Terminal Port w/ RS-232 DB9-S Connector
  • UART1 Port w/ RS-232 DB9-S Connector
  • UART2 / CAN port w/ RS-232 and 1 Mbaud CAN transceiver

Power Management

  • +25 VDC, 9 VDC typical power input
  • Current Consumption: 100 ma typical @ 9VDC input
  • Regulated +3.3 V power supply w/ indicator
  • 2 User Push Switches

Size

  • Size 3.5 x 5.5 +5 -

User Components

  • RESET switch and indicator
  • 4 User Indicators (LEDs)
  • 2 User Push Switches
  • 2.4 GHz Zigbee™ capable RF Transceiver
  • 8 MHz reference crystal
  • External clock options
