MCF52211 Evaluation Board
The M52211EVB evaluation board provides an excellent vehicle for embarking on a high-performance embedded design of theMCF5221x Family of ColdFire® microprocessors. With USB 2.0 On-The-Go connectivity, breakout connectors for serial interfaces (including UART, I2C, QSPI, GPIO, and ADC), and support for a Zigbee-ready daughter card, this complete package includes all the components for realizing a MCF5221x design quickly and easily.

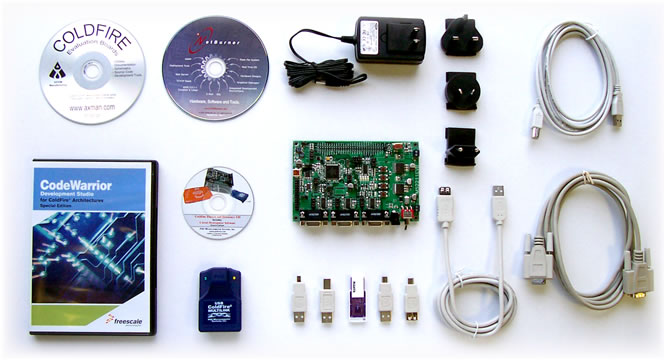

This cost-efficient evaluation kit offers an impressive array of complementary software. Included with the evaluation kit is a fully licensed, complimentary Special Edition of the CodeWarrior® Development Studio for ColdFire Architectures for development of applications up to 128Kbytes code size, as well as a host of ther low cost and professional tools from leading 3rd party tool vendors.

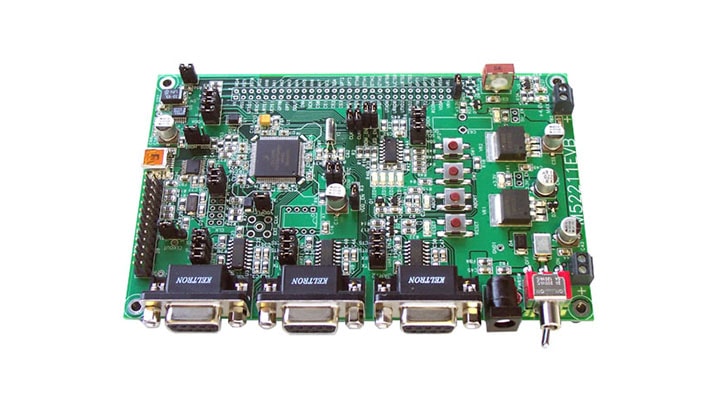

The evaluation board comes fitted with an 80MHz MCF52211 microcontroller with 128K byte internal flash. The MCF52211 microcontroller has a superset of the same functional modules and interfaces as those on the other devices supported.
Product Details
Features
Memory Devices
- 16-Kbyte SRAM internal to the MCF52211 device
- 128-Kbyte Flash internal to the MCF52211 device
User Interface
- USB 2.0 On-The-Go module
- Abort/IRQ7 logic switch (debounced)
- PLL Clocking options - Oscillator, Crystal, or SMA for external clocking signals
- 3 - UART interface
- Supports Zigbee-ready RF daughter card
- Breakout connector for serial interfaces (including I2C, QSPI, GPIO, and ADC)
- LEDs for power-up indication, general-purpose I/O, and timer output signals
- Potentiometer and light sensor dedicated to the ADC
- CAN transceiver interface
- BDM/JTAG interface
- Super Cap for battery life evaluation
Software
- Resident firmware package that provides a self-contained programming and operating environment (dBUG)
- Evaluation software from leading third-party tool vendors
