MCF521XX|32 Bit Microcontroller (MCU) | NXP Semiconductors

Automotive

Industrial

Consumer

Technologies

32-Bit Microcontroller

MCF521XX No Longer Manufactured

Featuring a wide variety of serial interface offerings (up to three universal asynchronous receiver/transmitters (UARTS), one serial peripheral interface (SPI) and two I²C) the MCF521xx family allows developing for power-sensitive, high-performance applications where connectivity and easy integration to various systems is key.

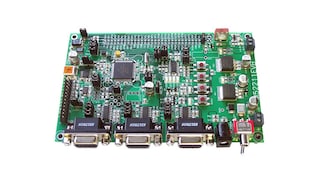

The MCF521xx family is based on the cost-effective, low-power ColdFire® V2 core (up to 80 MHz and 76 MIPS performance @ 3.3-volt CPU). If more connectivity is needed, the MCF5221x Family offers USB on-the-go module

Block Diagram

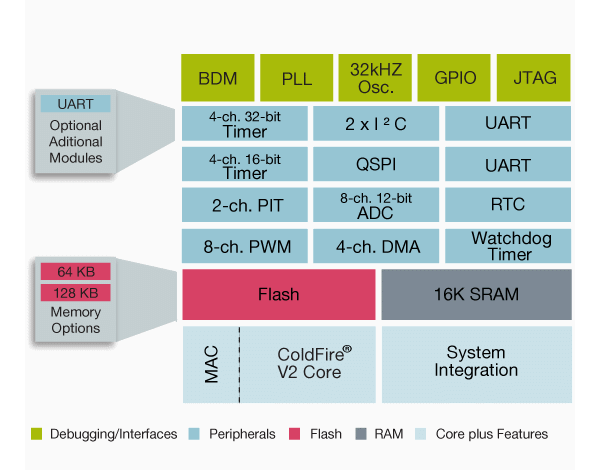

ColdFire MCF521XX Microcontroller Block Diagram

ColdFire MCF521XX Microcontroller Block Diagram
Get diagram PDF

Features

  • ColdFire® V2 core delivering 76 (Dhrystone 2.1) MIPS at 66 to 80 MHz
  • Flash: 64 - 128 KB
  • RAM (up to): 16 KB
  • Integrated peripherials:
    • Analog-to-digital converter (ADC): 8 channels, 12 bits
    • Two I²C
    • Three UART
    • 56 general-purpose input/outputs (GPIOs) (max)
    • Four timers
  • This product is included in NXP®.s product longevity program, with assured supply for a minimum of 10 years after launch

Buy/Parametrics

5 results

Exclude 5 NRND

Part

Show description

Order

CAD Model

Status

Package Type

Package Termination Count

Operating Frequency [Max] (MHz)

Flash (kB)

RAM (kB)

GPIO

Supply Voltage [min] (V)

Supply Voltage [max] (V)

Ambient Operating Temperature (Min to Max) (℃)

MCF52100CAE66
Data Sheet

End of Life

LQFP64

64

66

64

16

43

3

3.6

-40 to 85

MCF52100CAE80
Data Sheet

End of Life

LQFP64

64

80

64

16

43

3

3.6

-40 to 85

MCF52100CVM80
Data Sheet

End of Life

LBGA81

81

80

64

16

55

3

3.6

-40 to 85

MCF52110CAE66
Data Sheet

End of Life

LQFP64

64

66

128

16

43

3

3.6

-40 to 85

MCF52110CAF80
Data Sheet
—

End of Life

LQFP100

100

80

128

16

63

3

3.6

-40 to 85
