USB ColdFire Multlink

USBMLCF Active

Roll over image to zoom in

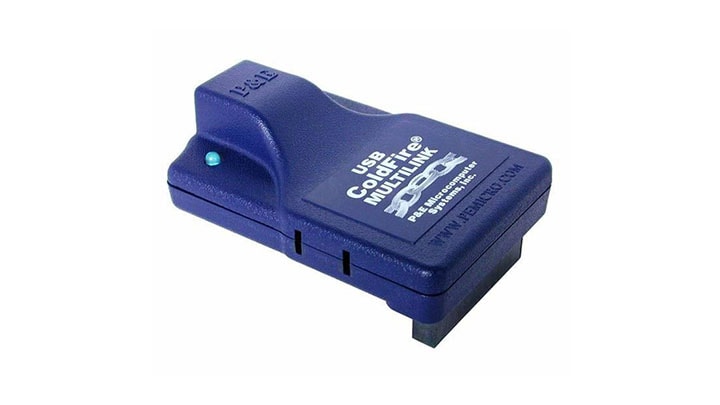

P&E’s USB ColdFire® Multilink is an easy-to-use debug and programming interface for the ColdFire V2/V3/V4 line of MPUs.

The USB ColdFire Multilink is supported by P&E software, Our CodeWarrior®, and other 3rd-party software (available separately). P&E’s ColdFire In-Circuit Programmer can be used with the Multilink to program flash memory devices. The USB ColdFire Multilink also works with P&E’s ColdFire In-Circuit Debugger to control the target processor’s execution, read/write registers and memory, and perform full C source-level debug.

NOTE: The USBMLCF interface is being discontinued and replaced by the U-MULTILINK-FX interface.

Product Details

Supported Devices

Processors and Microcontrollers

ColdFire® V2 Processors

  • MCF5206E: Integrated ColdFire® Microprocessor with DMA
  • MCF520X: Integrated ColdFire® V2 External Memory and Ethernet Microprocessors
  • MCF5227X: V2 Microprocessor with Touchscreen, LCD Controller and USB
  • MCF523X: Integrated V2 ColdFire® Microprocessor
  • MCF524X: Integrated ColdFire® Version 2 Microprocessor
  • MCF525X: Integrated ColdFire® V2 Microprocessor
  • MCF527X: ColdFire® V2 Integrated Microprocessor
  • SCF5250: Integrated ColdFire® V2 Microprocessor

ColdFire® V3 Processors

  • MCF5301x: Low-Power MPU with dual Ethernet, USB, and audio sub-system
  • MCF530X: Integrated ColdFire® V3 Microprocessor
  • MCF532X: ColdFire® V3 Microprocessor with LCD driver, Ethernet, USB and CAN
  • MCF537X: Coldfire V3 Microprocessor with Ethernet, USB and Encryption

ColdFire® V4 Processors

  • MCF540X: Integrated ColdFire® V4 Microprocessor
  • MCF5445X: 32-Bit Microprocessor with USB On-the-Go, Ethernet, PCI, DDR2/DDR controller and Encryption
  • MCF547X: ColdFire® V4 Microprocessor with Ethernet and Encryption
  • MCF548X: ColdFire® V4e Microcontroller with Ethernet, CAN and Encryption

Features

Microcontroller

  • Compatible with MCF52xx, MCF53xx, and MCF54xx families of MCUs

Connectivity

  • USB 2.0 interface from PC to Multilink allows for fast, easy programming and debugging, with the ease and compatibility of the USB interface. USB cable is included

Power Management

  • Target voltage: 1.8 V - 5.5 V
  • Draws power from the USB bus - no separate power supply required (draws less than 1 mA from the target)

Debug

  • Works with P&E's debugger and flash programmer, Our CodeWarrior, and development suites from many other third parties

Hardware Features

  • Fast, hassle-free USB 2.0 communications interface
  • Draws power directly from the USB port - no external power supply needed
  • Multivoltage support for targets ranging from 1.8 to 5.5 Volts
  • Compact size

Software Compatibility

  • P&E Power Architecture BDM In-Circuit Debugger
  • P&E Power Architecture BDM In-Circuit Programmer
  • CodeWarrior
  • Greenhills Multi
  • CodeSourcery GNU Tools
  • Mentor Graphics Edge

Buy Options

USBMLCF-Image

Click to expand

  • USBMLCF
    Active

  • P&E USB BDM INTERFACE MCF52XX/53XX/54XX.

  • For a quantity of 1
Order from distributors
