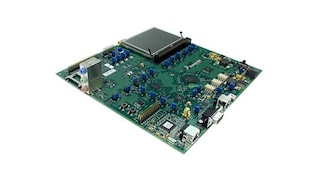

V2 Microprocessor with Touchscreen, LCD Controller and USB

MCF5227X Not Recommended for New Designs

The 32-bit ColdFire® V2 microprocessor portfolio expands with cost-effective LCD solutions, giving more control, flexibility and performance options for human-machine interface and industrial control applications.

Block Diagram

ColdFire MCF5227X Microcontroller Block Diagram

ColdFire MCF5227X Microcontroller Block Diagram
Get diagram PDF

Features

  • 8 KB configurable I/D cache
  • 128 KB SRAM
  • Integrated LCD controller
    • CSTN and TFT w/up to 800 x 600 (SVGA) resolution
  • 8 x 12-bit analog-to-digital converter (ADC) w/touch-screen controller
    • Real touch screen controller
  • USB 2.0 full-speed on-the-go controller
  • CAN 2.0B controller (FlexCAN)
  • 3 UARTs
  • DMA serial peripheral interface (DSPI)
  • I²C bus interface
  • Synchronous serial interface (SSI)
  • 4-channel 32-bit timers with direct memory access (DMA) support
  • Real-time clock
  • 16-channel DMA controller
  • 16-bit DDR/32-bit SDRAM controller
  • Up to 55 general purpose (GPIO)
  • System integration (phase-lock loop, software watchdog)
  • 1.5-volt core, 1.8-volt/2.5-volt/3.3-volt bus I/O
  • Complimentary MQX Software Solutions
  • This product is included in NXP®.s product longevity program, with assured supply for a minimum of 10 years after launch

Buy/Parametrics

2 results

Exclude 2 NRND

Part

Show description

Order

CAD Model

Status

Package Termination Count

Package Type

Budgetary Price excluding tax

Operating Frequency [Max] (MHz)

RAM (kB)

GPIO

Ambient Operating Temperature (Min to Max) (℃)

MCF52277CVM160
Data Sheet

Not Recommended for New Designs

196

LBGA196

10K @ US$10.37

166

128

55

-40 to 85

MCF52274CLU120
Data Sheet
—

End of Life

176

LQFP176

—

120

128

47

-40 to 85
