MCF52277 Evaluation Board

M52277EVB Active

Roll over image to zoom in

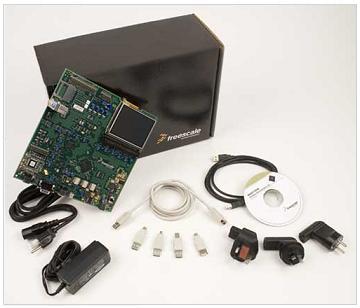

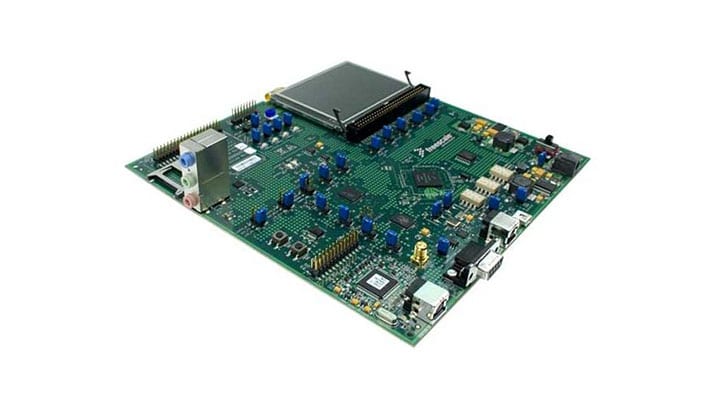

The M52277 evaluation board is based on the V2 Coldfire Core with eMAC. This board is shipped with the MCF52277 populated to allow for evaluation of all of the functionality of this part.

This board was designed as a validation platform with maximum flexibility. Where possible we've also designed for power and speed, but the primary goal of this system is flexibility.

Product Details

Features

M52277 External Interfaces

  • On-board Sharp 240 x 320 color touchscreen LCD panel
  • 60-pin external LCD connector
  • Synchronous Serial Interface (SSI) connected to audio codec
  • USB Support
    • MCF52277 on-chip OTG transceiver with device, host, and OTG support (mini-AB receptacle)
  • Crystal/clock
  • BDM/JTAG
  • Two UARTs
  • FlexBus
  • Timers
  • External interrupts
  • CAN support
    • External CAN transceiver (DB9 connector)
  • University Breakout Connector for serial interfaces (I²C, QSPI, GPIO, etc.)

Memory Subsystems

  • 32 M x 16 mobile DDR
  • 8 M x 16 NOR flash
  • 16 MB serial boot flash

Power

  • Inputs
    • 5 V input to the voltage regulator circuitry
  • Regulated onboard voltages:
    • 3.3 V - I/O voltage
    • 1.8 V - Mobile DDR and flash voltage
    • 1.5 V - MCF52277 core voltage

Buy Options

M52277EVBJ-Image

Click to expand

  • M52277EVBJ
    Active

  • ITC comp EVAL BOARD FOR THE MCF5227X FAM.
