MCF5235 Evaluation Board

M523xEVB Active

Roll over image to zoom in

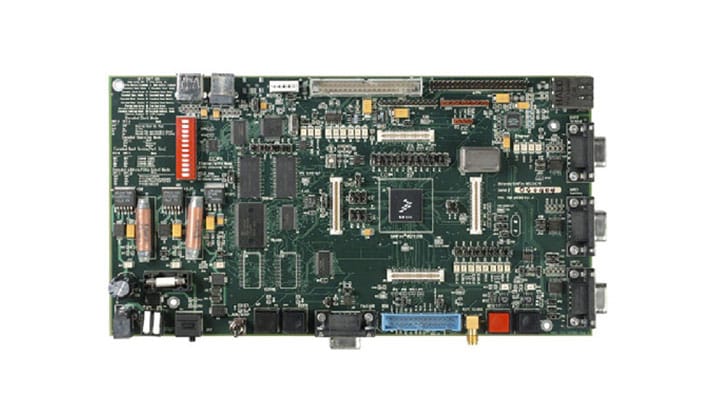

The ColdFire® M523xEVB evaluation board is intended to provide a mechanism for easy evaluation of the NXP® MCF523x family of ColdFire microprocessors and to facilitate hardware and software development. The EVB can be used to test programs, tools, or circuits without having to develop a complete microprocessor system.

The heart of the evaluation board is the MCF5235. All other MCF523x family members have a subset of the MCF5235 specification and can therefore be fully emulated using the MCF5235 device.

Product Details

Supported Devices

Processors and Microcontrollers

ColdFire® V2 Processors

  • MCF523X: Integrated V2 ColdFire® Microprocessor

Features

Microcontroller Support

  • MCF5235 Microprocessor (150 MHz max core frequency)

Development Ports

  • BDM Debug Development connector

Memory

  • 32 Mbyte SDRAM
  • 2 Mbyte external Page Mode Flash
  • 10/100 Ethernet PHY and RJ45 connector
  • Two CAN transceivers and DB-9 connectors
  • Two serial ports and DB-9 connectors
  • All internal module signal connectors available via four, 60-pin expansion connectors
  • Breakout connector for serial interfaces (eTPU, I²C, QSPI, GPIO)
  • ADC Interface
  • Chip configuration capability
  • Multiple clocking options
  • Debug monitor
  • Power Port with Power Supply Access
  • Power Requirement: 6 to 14 V DC input
  • Power output: 5 V, 3.3 V, and 1.5 V regulated supplies

Buy Options

M523XEVBE-Image

Click to expand

  • For a quantity of 1
Order from distributors
N true 0 TSPM523xEVBen 7 Application Note Application Note t789 2 Application Note Software Application Note Software t783 2 Reference Manual Reference Manual t877 2 User Guide User Guide t792 1 en_US en_US 1 1 Rev. 2 English This document details the setup and configuration of the ColdFire M523xEVB evaluation board (hereafter referred to as the EVB). The EVB is intended to provide a mechanism for easy customer evaluation of the MCF523x family of ColdFire microprocessors and to facilitate hardware and software development. The EVB can be used by software and hardware developers to test programs, tools, or circuits without having to develop a complete microprocessor system themselves. All special features of the MCF523x family ar 1267825116092696155123 TSP 1.1 MB None None documents Y None 1267825116092696155123 /docs/en/user-guide/M5235EVBUM.pdf 1106089 /docs/en/user-guide/M5235EVBUM.pdf M5235EVBUM N 2010-03-05 M5235EVB User’s Manual /docs/en/user-guide/M5235EVBUM.pdf /docs/en/user-guide/M5235EVBUM.pdf User Guide N 132339537837198660 2023-06-19 pdf en Aug 1, 2007 User Guide t792 User Guide User Guide N N M5235EVB User’s Manual false en Reference Manual Reference Manual 2 2 2 English The primary objective of this reference manual is to define the functionality of the MCF5235 processor for use by software and hardware developers. In addition, this manual supports the MCF5232, MCF5233, and MCF5234. The MCF5235 is a family of highly-integrated 32-bit microcontrollers based on the V2 ColdFire microarchitecture. It is also a high-performance upgrade for users of the MC68332. 1084551048615716474982 TSP 12.5 MB None None documents None 1084551048615716474982 /docs/en/reference-manual/MCF5235RM.pdf 12521021 /docs/en/reference-manual/MCF5235RM.pdf MCF5235RM documents N 2004-05-14 MCF5235 - Reference Manual /docs/en/reference-manual/MCF5235RM.pdf /docs/en/reference-manual/MCF5235RM.pdf Reference Manual N 500633505221135046 2022-12-07 pdf en Jul 7, 2006 500633505221135046 Reference Manual Y N MCF5235 - Reference Manual 3 0.1 English Our Three-phase Micro Power Stage is a 12-vold, 3-amp power stage. It provides a ready-made software development platform for small brushless dc motors among others. RM includes setup instructions, schematics, pin assignments, design aspects of the board's circuitry. 1101229760659701178784 TSP 950.2 KB None None documents None 1101229760659701178784 /docs/en/reference-manual/3PMPSRM.pdf 950239 /docs/en/reference-manual/3PMPSRM.pdf 3PMPSRM documents N N 2016-10-31 Three-Phase Micro Power Stage Reference Manual /docs/en/reference-manual/3PMPSRM.pdf /docs/en/reference-manual/3PMPSRM.pdf Reference Manual N 500633505221135046 2022-12-07 pdf N en Nov 23, 2004 500633505221135046 Reference Manual Y N Three-Phase Micro Power Stage Reference Manual Application Note Application Note 2 4 2 English AN2948SW.zip /secured/assets/documents/en/application-note-software/AN2948SW.zip /webapp/Download?colCode=AN2948SW&appType=license&docLang=en This application note describes the designs of multiple 3-phase Brushless DC (BLDC) motors driven by Our ColdFire MCF523x microprocessor. 1108659648956691904957 TSP 2.0 MB None None documents None 1108659648956691904957 /docs/en/application-note/AN2948.pdf 2036228 /docs/en/application-note/AN2948.pdf AN2948 documents N N 2016-10-31 Three 3-Phase BLDC Motors with Speed Closed Loop, driven by eTPU on MCF523x /docs/en/application-note/AN2948.pdf /docs/en/application-note/AN2948.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Sep 1, 2005 645036621402383989 Application Note Y N Three 3-Phase BLDC Motors with Speed Closed Loop, driven by eTPU on MCF523x 5 1 English AN2892SW.zip /secured/assets/documents/en/application-note-software/AN2892SW.zip /webapp/Download?colCode=AN2892SW&appType=license&docLang=en This application note describes the design of a 3-phase Brushless DV (BLDC) motor drive based on Our ColdFire MCF523x microprocessor. 1108659655870719955143 TSP 1.6 MB None None documents None 1108659655870719955143 /docs/en/application-note/AN2892.pdf 1618874 /docs/en/application-note/AN2892.pdf AN2892 documents N N 2016-10-31 3-Phase BLDC Motor with Speed Closed Loop, driven by eTPU on MCF523x /docs/en/application-note/AN2892.pdf /docs/en/application-note/AN2892.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jun 5, 2005 645036621402383989 Application Note Y N 3-Phase BLDC Motor with Speed Closed Loop, driven by eTPU on MCF523x Application Note Software Application Note Software 2 6 2.1 English Accompanying software to AN2892. 1169756367646710284278 TSP 441.9 KB Registration With Click-Thru Software Licensing Agreement 1395958162559706127527 documents Extended 1169756367646710284278 /secured/assets/documents/en/application-note-software/AN2892SW.zip 441924 /secured/assets/documents/en/application-note-software/AN2892SW.zip AN2892SW documents Y N 2016-10-31 3-Phase BLDC Motor with Speed Closed Loop, driven by eTPU on MCF523x Software Source /webapp/Download?colCode=AN2892SW&appType=license /secured/assets/documents/en/application-note-software/AN2892SW.zip Application Note Software N 789425793691620447 2022-12-07 zip Y en May 11, 2006 789425793691620447 Application Note Software N 3-Phase BLDC Motor with Speed Closed Loop, driven by eTPU on MCF523x Software Source 7 1.2 English Accompanying Software to AN2948 1170256202103669205800 TSP 612.8 KB Registration With Click-Thru Software Licensing Agreement 1395958162559706127527 documents Extended 1170256202103669205800 /secured/assets/documents/en/application-note-software/AN2948SW.zip 612805 /secured/assets/documents/en/application-note-software/AN2948SW.zip AN2948SW documents Y N 2016-10-31 Three 3-Phase BLDC Motors with Speed Closed Loop, driven by eTPU on MCF523x Software Source /webapp/Download?colCode=AN2948SW&appType=license /secured/assets/documents/en/application-note-software/AN2948SW.zip Application Note Software N 789425793691620447 2022-12-07 zip Y en Jun 10, 2005 789425793691620447 Application Note Software N Three 3-Phase BLDC Motors with Speed Closed Loop, driven by eTPU on MCF523x Software Source false 0 M523xEVB downloads en true 0 Y TSP Application Note 2 /docs/en/application-note/AN2948.pdf 2016-10-31 1108659648956691904957 TSP 4 Sep 1, 2005 Application Note This application note describes the designs of multiple 3-phase Brushless DC (BLDC) motors driven by Our ColdFire MCF523x microprocessor. None /docs/en/application-note/AN2948.pdf English documents 2036228 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN2948.pdf Three 3-Phase BLDC Motors with Speed Closed Loop, driven by eTPU on MCF523x /docs/en/application-note/AN2948.pdf documents 645036621402383989 Application Note N en None Y pdf 2 N N Three 3-Phase BLDC Motors with Speed Closed Loop, driven by eTPU on MCF523x 2.0 MB AN2948 N 1108659648956691904957 /docs/en/application-note/AN2892.pdf 2016-10-31 1108659655870719955143 TSP 5 Jun 5, 2005 Application Note This application note describes the design of a 3-phase Brushless DV (BLDC) motor drive based on Our ColdFire MCF523x microprocessor. None /docs/en/application-note/AN2892.pdf English documents 1618874 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN2892.pdf 3-Phase BLDC Motor with Speed Closed Loop, driven by eTPU on MCF523x /docs/en/application-note/AN2892.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N 3-Phase BLDC Motor with Speed Closed Loop, driven by eTPU on MCF523x 1.6 MB AN2892 N 1108659655870719955143 Application Note Software 2 /secured/assets/documents/en/application-note-software/AN2892SW.zip 2016-10-31 1169756367646710284278 TSP 6 May 11, 2006 Application Note Software Accompanying software to AN2892. Registration With Click-Thru Software Licensing Agreement /secured/assets/documents/en/application-note-software/AN2892SW.zip English documents 441924 1395958162559706127527 789425793691620447 2022-12-07 Y /webapp/Download?colCode=AN2892SW&appType=license 3-Phase BLDC Motor with Speed Closed Loop, driven by eTPU on MCF523x Software Source /secured/assets/documents/en/application-note-software/AN2892SW.zip documents 789425793691620447 Application Note Software N en Extended zip 2.1 Y N 3-Phase BLDC Motor with Speed Closed Loop, driven by eTPU on MCF523x Software Source 441.9 KB AN2892SW N 1169756367646710284278 /secured/assets/documents/en/application-note-software/AN2948SW.zip 2016-10-31 1170256202103669205800 TSP 7 Jun 10, 2005 Application Note Software Accompanying Software to AN2948 Registration With Click-Thru Software Licensing Agreement /secured/assets/documents/en/application-note-software/AN2948SW.zip English documents 612805 1395958162559706127527 789425793691620447 2022-12-07 Y /webapp/Download?colCode=AN2948SW&appType=license Three 3-Phase BLDC Motors with Speed Closed Loop, driven by eTPU on MCF523x Software Source /secured/assets/documents/en/application-note-software/AN2948SW.zip documents 789425793691620447 Application Note Software N en Extended zip 1.2 Y N Three 3-Phase BLDC Motors with Speed Closed Loop, driven by eTPU on MCF523x Software Source 612.8 KB AN2948SW N 1170256202103669205800 Reference Manual 2 /docs/en/reference-manual/MCF5235RM.pdf 2004-05-14 1084551048615716474982 TSP 2 Jul 7, 2006 Reference Manual The primary objective of this reference manual is to define the functionality of the MCF5235 processor for use by software and hardware developers. In addition, this manual supports the MCF5232, MCF5233, and MCF5234. The MCF5235 is a family of highly-integrated 32-bit microcontrollers based on the V2 ColdFire microarchitecture. It is also a high-performance upgrade for users of the MC68332. None /docs/en/reference-manual/MCF5235RM.pdf English documents 12521021 None 500633505221135046 2022-12-07 /docs/en/reference-manual/MCF5235RM.pdf MCF5235 - Reference Manual /docs/en/reference-manual/MCF5235RM.pdf documents 500633505221135046 Reference Manual N en None Y pdf 2 N MCF5235 - Reference Manual 12.5 MB MCF5235RM N 1084551048615716474982 /docs/en/reference-manual/3PMPSRM.pdf 2016-10-31 1101229760659701178784 TSP 3 Nov 23, 2004 Reference Manual Our Three-phase Micro Power Stage is a 12-vold, 3-amp power stage. It provides a ready-made software development platform for small brushless dc motors among others. RM includes setup instructions, schematics, pin assignments, design aspects of the board's circuitry. None /docs/en/reference-manual/3PMPSRM.pdf English documents 950239 None 500633505221135046 2022-12-07 N /docs/en/reference-manual/3PMPSRM.pdf Three-Phase Micro Power Stage Reference Manual /docs/en/reference-manual/3PMPSRM.pdf documents 500633505221135046 Reference Manual N en None Y pdf 0.1 N N Three-Phase Micro Power Stage Reference Manual 950.2 KB 3PMPSRM N 1101229760659701178784 User Guide 1 /docs/en/user-guide/M5235EVBUM.pdf 2010-03-05 1267825116092696155123 TSP 1 Aug 1, 2007 User Guide User Guide This document details the setup and configuration of the ColdFire M523xEVB evaluation board (hereafter referred to as the EVB). The EVB is intended to provide a mechanism for easy customer evaluation of the MCF523x family of ColdFire microprocessors and to facilitate hardware and software development. The EVB can be used by software and hardware developers to test programs, tools, or circuits without having to develop a complete microprocessor system themselves. All special features of the MCF523x family ar Y None /docs/en/user-guide/M5235EVBUM.pdf English 1106089 None User Guide 2023-06-19 /docs/en/user-guide/M5235EVBUM.pdf M5235EVB User’s Manual /docs/en/user-guide/M5235EVBUM.pdf documents 132339537837198660 User Guide N en None N t792 pdf Rev. 2 N M5235EVB User’s Manual 1.1 MB M5235EVBUM N 1267825116092696155123 true Y Tools
