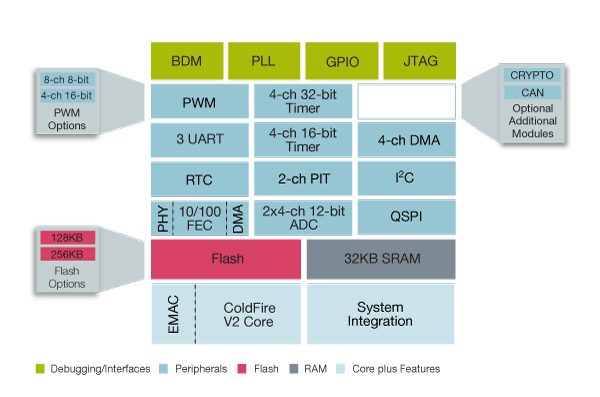

Integrated ColdFire® V2 Ethernet Microcontrollers
The MCF5223x family of ColdFire® devices are single-chip solutions that provide 32-bit control with an Ethernet interface. It combines a 10/100 Fast Ethernet controller (FEC) and Ethernet physical layer (EPHY) with the ColdFire V2 core for high performance at a reasonable cost. The MCF5223x embedded controller provides designers with the right set of peripherals and memory size for a compact Ethernet-enabled platform that reduces development time and cost to help products get to market quicker.
The MCF5223x family integrates standard ColdFire peripherals, including three universal asynchronous receiver/transmitters (UARTs) for medium-and long-distance connections, an inter-integrated circuit (I²C) and queued serial peripheral interface (QSPI) for in-system communications to connected peripherals.
All family members are pin-to-pin compatible within the MCF5222x family (in like packages). MCF52231 adds a CAN module, MCF52233 adds 128 KB of flash, MCF52234 adds CAN module and 128 KB of flash and MCF52235 adds a cryptographic acceleration unit, a CAN module and 128 KB of flash to the standard MCF5223x peripheral set.
Product Details
Features
- ColdFire® V2 core delivering 57 (Dhrystone 2.1) MIPS at 60 MHz
- eMAC module and hardware divide
- 32 KB SRAM
- 256 KB flash
- Integrated peripherals
- 10/100 Ethernet MAC with PHY
- Cryptographic acceleration unit with random number generator
- CAN 2.0B controller (FlexCAN)
- 3 UARTs
- QSPI
- I²C bus interface
- 12-bit analog-to-digital converter (ADC)
- Complimentary MQX Software Solutions
- This product is included in NXP®.s product longevity program, with assured supply for a minimum of 10 years after launch
MCF5223X Family Members
| Features |
MCF52230 |
MCF52231
|
MCF52232
|
MCF52233
|
MCF52234
|
MCF52235
|
MCF52236
|
| Core | |||||||
| Clock (MHz) |
60
|
60
|
50
|
60
|
60
|
60
|
50
|
|
Performance (Dhrystone 2.1 MIPS) |
56
|
56
|
46
|
56
|
56
|
56
|
46
|
| Flash |
128 KB
|
128 KB
|
128 KB
|
256 KB
|
256 KB
|
256 KB
|
256 KB
|
| Crypto |
NO
|
NO
|
NO
|
NO
|
NO
|
YES
|
NO
|
| CAN |
-
|
1
|
-
|
-
|
1
|
1
|
-
|
| Board |
Buy/Parametrics
| | | | | |
|---|---|---|---|---|---|
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
1-10 of 37 documents
Compact List
Application Note (14)
-
Display eGUI using TWR-LCD board[AN4452]
Application Note Software (5)
-
Software for AN3521[AN3521SW]
-
E-field Keyboard Designs[AN3516]
-
Software for AN3518[AN3518SW]
-
Software for AN3511[AN3511SW]
-
Software for AN3518[AN3518SW_2]
Data Sheet (1)
-
MCF52235 ColdFire Microcontroller - Data Sheet[MCF52235]Featured
Errata (1)
Fact Sheet (2)
-
MCF5223x Family - Fact Sheet[MCF5223XFS]Featured
-
MCF5223x Family Specification Sheet[MCF5223XSS]Featured
Product Brief (1)
Product Change Notice (1)
Reference Manual (7)
-
MCF52235 Reference Manual Errata[MCF52235RMAD]
-
MCF52235 ColdFire® MCUs, V2 core, 256KB Flash[MCF52235RM]Featured
-
ColdFire® ® Family Programmer’s - Reference Manual[CFPRM]Featured
Selector Guide (1)
-
32-bit ColdFire MCU and MPU Product Summary Page[BRCOLDFIRESUM]
Supporting Information (3)
-
ColdFire®® TCP/IP Stack Deep Dive[TCPIPSTACKOVR]
-
Information on the TCP/IP Stack for ColdFire® by InterNiche[COLDFIRETCPIPLITE]
-
Documentation for the ColdFire Lite TCP/IP Stack[COLDFIRE_TCPIP_LITE_DOC]
White Paper (1)
Design Resources
Hardware
Quick reference to our
board types.
1-5 of 8 hardware offerings
-
Emulators, Probes, and ProgrammersUniversal Multilink Development InterfaceFeatured
-
Emulators, Probes, and ProgrammersUSB ColdFire MultlinkFeatured
-

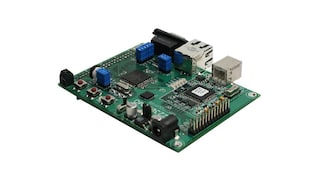

Evaluation and Development BoardsMCF52233 Demonstration BoardFeatured
-
Additional hardware available. View our featured partner solutions.
-

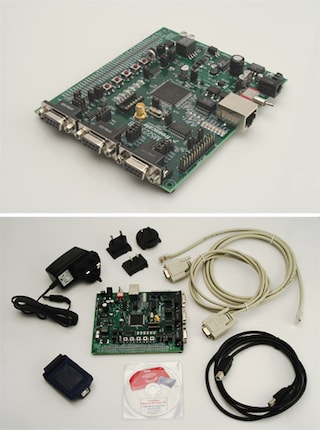

Evaluation and Development BoardsMCF52235 Evaluation BoardFeatured
-
