The QorIQ® T4240 reference design board (T4240-RDB) is a compact (1U), highly integrated board featuring the 24-virtual-core T4240 device.

With a 1.8 GHz T4240 processor and rich input/output (I/O) mix, the board is designed for evaluating the T4240, T4160 and T4080 processors in networking, telecom/datacom, wireless infrastructure and military/aerospace applications
The T4 processor family can be used for combined control, data path, and application layer processing in routers, switches, gateways and general-purpose embedded computing systems
The board, which exercises many capabilities of the device, can serve as a reference for a customer's hardware development

Design Files

Software

Product Details

Supported Devices

Processors and Microcontrollers

T-Series

T4240: QorIQ^® T4240/T4160/T4080 Multicore Communications Processors

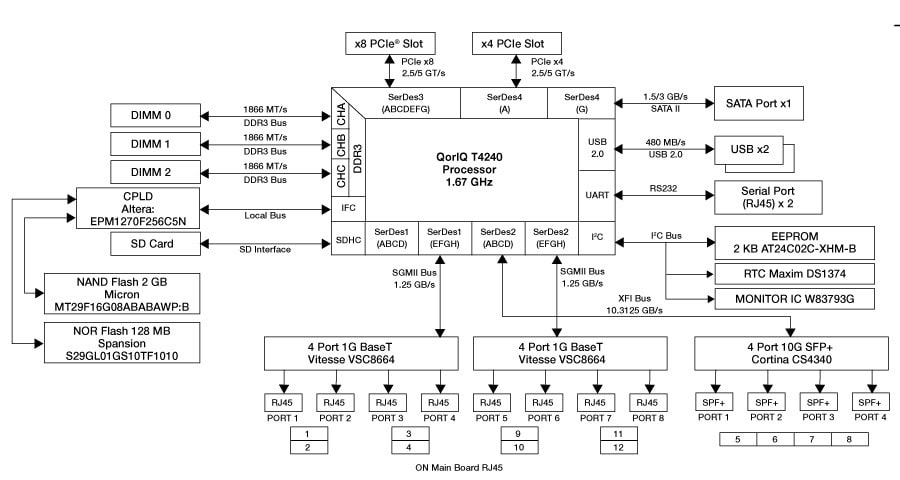

Features

Processor

The T4240 processor contains a 1.8 GHz core with 1867 MT/s DDR3 data rate (prototype specification: 1.67 GHz core)
Multiple SysClk inputs

Memory

Three unbuffered DDR3 240-pin UDIMM modules with ECC (72-bit bus), 6 GB memory, 1867 MT/s data rate
128 MB NOR Flash, 16-bit
2 GB SLC NAND Flash
2 KB 24C02 I²C EEPROM
SD connector to interface

PCI Express®

PCI Express x4 connector
PCI Express x8 connector

USB 2.0

Dual Type-A USB slot, connected to USB PHY

Ethernet

Four 10 GB/s SFP+ ports
LAN1 - LAN8: Connected to SGMII PHY- VSC8664

Additional Features

LEDs for power and Ethernet link and active
JTAG for debugging
I²C
- Serial EEPROM - board identification
- Real-time clock
ATX power supply

Buy Options

Click to expand

T4240RDB-PB
QorIQ T4240 Reference Design Board, revB.

$6115.00 USD
For a quantity of 1

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Documentation

Quick reference to our documentation types.

3 documents

^{Fact Sheet}
QorIQ^® T4240 Reference Design Board - Fact SheetFeatured

PDFRev 2Nov 3, 2014137.1 KBT4240RDBFSEnglish
^{User Guide}
QorIQ T4240 Reference Design Board User GuideGetting Started

PDFRev 1Jan 7, 20161.4 MBT4240RDBUGEnglish
^{Quick Reference Guide}
QorIQ T4240 Reference Design Board Quick Start

PDFRev 2Jan 7, 2016594.3 KBT4240RDBQSEnglish
