Evaluation Kit for VR5100 Power Management Integrated Circuit

KITVR5100FRDMEVM Preproduction

Roll over image to zoom in

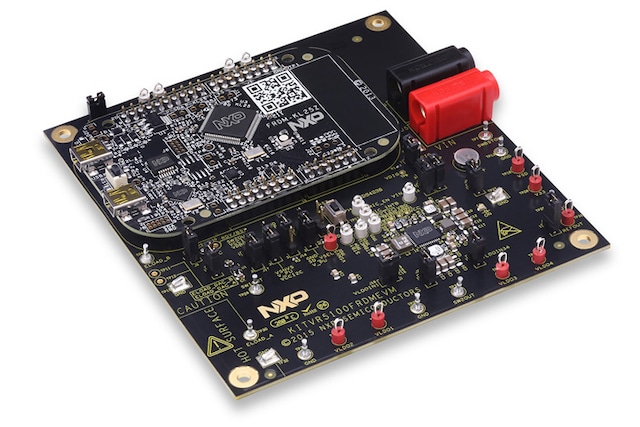

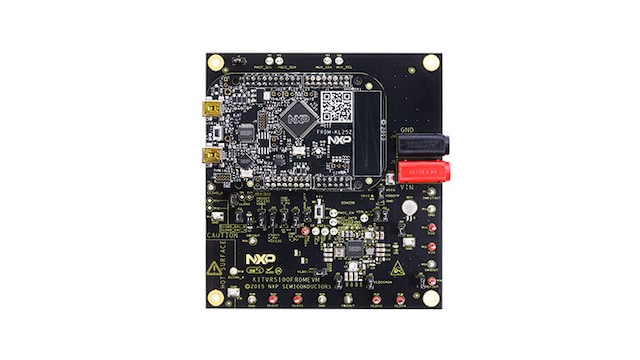

The KITVR5100FRDMEVM Evaluation Board (EVB) is an easy-to-use circuit board allowing the user to exercise all the functions of the VR5100 Power Management IC’s (PMIC). The EVB integrates the popular KL25Z Freedom Board. The Freedom Board is used as an interface between the GUI and the VR5100. Analog-to-Digital Converters (ADCs) in the KL25Z Freedom Boards are used to monitor the regulator voltages through the GUI.

Product Details

Supported Devices

Power Management

PMICs

  • VR5100: Multi-Output DC-DC Regulator for Low Power LS1 Communication Processors

Features

Key Features

  • Integrated KL25Z Freedom Board for monitoring and control through PC
  • Two 1 Amp E-Loads with configurable current

Power Management

  • VR5100 Power Management IC
  • Input supply using wall adapter or lab power supply through banana jacks
