i.MX 8X Family – Arm® Cortex®-A35, 3D Graphics, 4K Video, DSP, Error Correcting Code on DDR
2.4/5 GHz Dual-Band 1x1 Wi-Fi® 5 (802.11ac) + Bluetooth® 5.2 Solution
The 88W8987 is a highly integrated Wi-Fi (2.4/5 GHz) and Bluetooth single-chip solution specifically designed to support the speed, reliability and quality requirements of Very High Throughput (VHT) products. The System-on-Chip (SoC) provides both simultaneous and independent operation of IEEE 802.11ac (Wave 2), 1x1 with data rates up to MCS9 (433 Mbit/s), and Bluetooth 5.2 (includes Low Energy (LE)). The SoC also provides Bluetooth Classic and Bluetooth Low Energy (LE) Smart Ready operation.
Host interfaces include SDIO 3.0 and high-speed UART interfaces for connecting Wi-Fi and Bluetooth technologies to the host processor.
The device is designed with two front-end configurations to accommodate Wi-Fi and Bluetooth on either separate or shared paths:
- 2-antenna configuration: 1x1 Wi-Fi and Bluetooth on separate paths (QFN)
- 1-antenna configuration: 1x1 Wi-Fi and Bluetooth on shared paths (eWLP)
Wireless modules based on the NXP 88W8987 are offered by leading module manufacturers.
Product Details
Block Diagram
Choose a diagram:
Features
- IEEE 802.11ac (wave2) with MU-MIMO receive
- Virtual Dual MAC (via optimized DRCS)
- Wi-Fi Stations (STA), Access Point (AP), Wi-Fi Direct (P2P)
- WPA3 Encryption
- Bluetooth 5.2 support
- 2-antenna configuration for Wi-Fi/Bluetooth coexistence
Partner Modules
88W8987
Wi-Fi 5 (802.11ac) 2.4/5 GHz Dual-Band 1x1 + Bluetooth® 5.2| Product | Wi-Fi I/F | Bluetooth I/F | Operating Temp | Antenna Type | Antenna # | Module Type | Module Size | Qualifications | Recommended Host |
|---|---|---|---|---|---|---|---|---|---|
|
AW-CM358 |
SDIO | UART | -30 to 85 | Antenna pin(s) | 1 | SMD | 12 x 12 x 1.65 | CE, FCC, IC, Japan | i.MX / i.MX RT |
|
AW-CM358MA |
SDIO | UART | -30 to 85 | U.FL Connector(s) | 1 | M.2 E-Key | 30 x 22 x 2.93 | CE, FCC, IC, Japan | i.MX / i.MX RT |
|
AW-PU510 |
0 to 70 | U.FL Connector(s) | 1 | SOM (Voice/Video) | 46 x 39 x 2.95 | CE, FCC, IC, Japan | i.MX 8M Mini | ||
|
AW-PU551 |
0 to 70 | U.FL Connector(s) | 1 | SOM (Voice/Video) | 46 x 39 x 2.95 | CE, FCC, IC, Japan | i.MX 8M Nano | ||
|

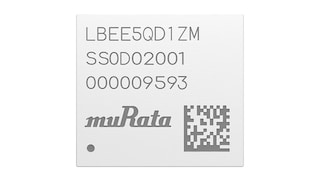

LBEE5QD1ZM-572 |
SDIO | UART | -30 to 85 | Antenna pin(s) | 1 | SMD | 10.2 x 9.3 x 1.3 | CE, FCC, IC MIC (Japan) | i.MX / i.MX RT |
|
ENWF9408A1EF |
SDIO | UART, SDIO | -30 to 85 | Chip or Pin | 1 | SMD | 24 x 12 x 2.8 | EU, CE RED, FCC, ISED | i.MX 6/7/8, i.MX RT |
|
ENWF9408A2EF |
SDIO | UART, SDIO | -30 to 85 | Chip or Pin | 1 | SMD | 24 x 12 x 2.8 | EU, CE RED, FCC, ISED | i.MX 6/7/8, i.MX RT |
|
JODY-W263-00A |
SDIO | UART, PCM | -40 to 85 | Antenna pin(s) | 2 | SMD | 13.8 x 19.8 x 2.5 | HW qual: AEC-Q104; FCC/ISED, RED/UKCA,GITEKI,NCC,KCC,ANZ,BTSIG | i.MX 6/7/8 i.MX RT |
|
JODY-W263-00B |
SDIO | UART, PCM/I²S | -40 to 85 | Antenna pin(s) | 2 | SMD | 13.8 x 19.8 x 2.5 | HW qual: ISO-16750; FCC/ISED, RED/UKCA,GITEKI,NCC,KCC,ANZ,BTSIG | i.MX 6/7/8 i.MX RT |
|
JODY-W263-01A |
SDIO | UART, PCM | -40 to 105 | Antenna pin(s) | 2 | SMD | 13.8 x 19.8 x 2.5 | HW qual: AEC-Q104; FCC/ISED, RED/UKCA,GITEKI,NCC,KCC,ANZ,BTSIG | i.MX 6/7/8 i.MX RT |
|
JODY-W263-10B |
SDIO | UART, PCM/I²S | -30 to 85 | Antenna pin(s) | 2 | SMD | 13.8 x 19.8 x 2.5 | HW qual: ISO-16750; FCC/ISED, RED/UKCA,GITEKI,NCC,KCC,ANZ,BTSIG | i.MX 6/7/8 i.MX RT |
|
M2-JODY-W263-00C |
SDIO | UART, PCM/I²S | -40 to 85 | U.FL connectors | 2 | M.2 card | 22.0 x 30.0 x 4.2 | HW qual: ISO-16750; FCC/ISED, RED/UKCA,BTSIG | i.MX 6/7/8 i.MX RT |
